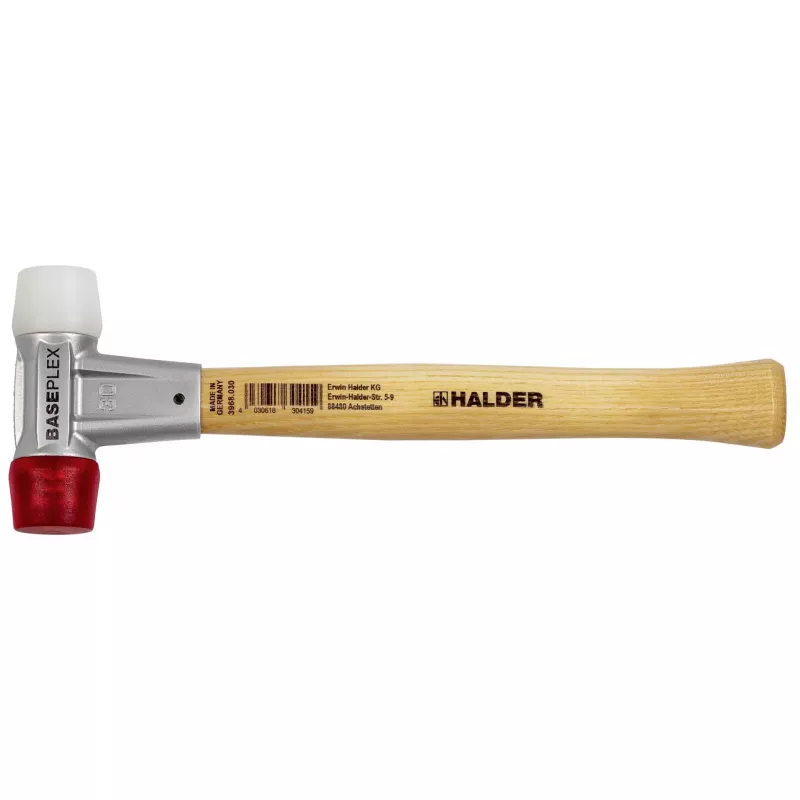

Halder BASEPLEX Soft-Face Hammer 30 mm Nylon Cellulose Acetate

The Halder BASEPLEX Soft-Face Hammer is a professional-grade striking tool designed for assembly, repair, positioning, and maintenance tasks. Featuring a 30 mm head diameter with interchangeable white nylon (hard) and transparent cellulose acetate (medium hard) inserts, this hammer provides versatile impact options while protecting delicate surfaces. The cast iron housing with powder coating ensures durability, while the hickory wood handle offers a comfortable grip and effective recoil damping. Compliant with DIN 5130, this hammer is ideal for precision work in industrial and workshop environments.

Advantages

Interchangeable inserts allow quick adaptation to different materials and hardness requirements. The hard nylon insert delivers strong blows for general assembly, while the medium-hard cellulose acetate insert is perfect for softer materials or final positioning. Recoil damping reduces user fatigue, and the replaceable handle extends the tool's lifespan.

Suitable for

• Assembly and disassembly of machinery
• Repair and maintenance tasks
• Positioning and alignment of components
• Delicate work on painted or polished surfaces

Key specifications

• Hammer Type: Soft-Face Hammer
• Series: BASEPLEX
• Head Diameter: 30 mm
• Insert Material (White): Nylon (Hard)
• Insert Material (Transparent): Cellulose Acetate (Medium Hard)
• Housing Material: Cast Iron (Powder-Coated)
• Handle Material: Hickory Wood
• Overall Length: 260 mm
• Head Length: 80 mm
• Replaceable Inserts: Yes
• Replaceable Handle: Yes
• Recoil Damping: Yes
• Standard: DIN 5130

Recommendations

For best results, select the appropriate insert hardness for your application. Store the hammer in a dry place to preserve the wood handle. Replacement inserts and handles are available separately.
