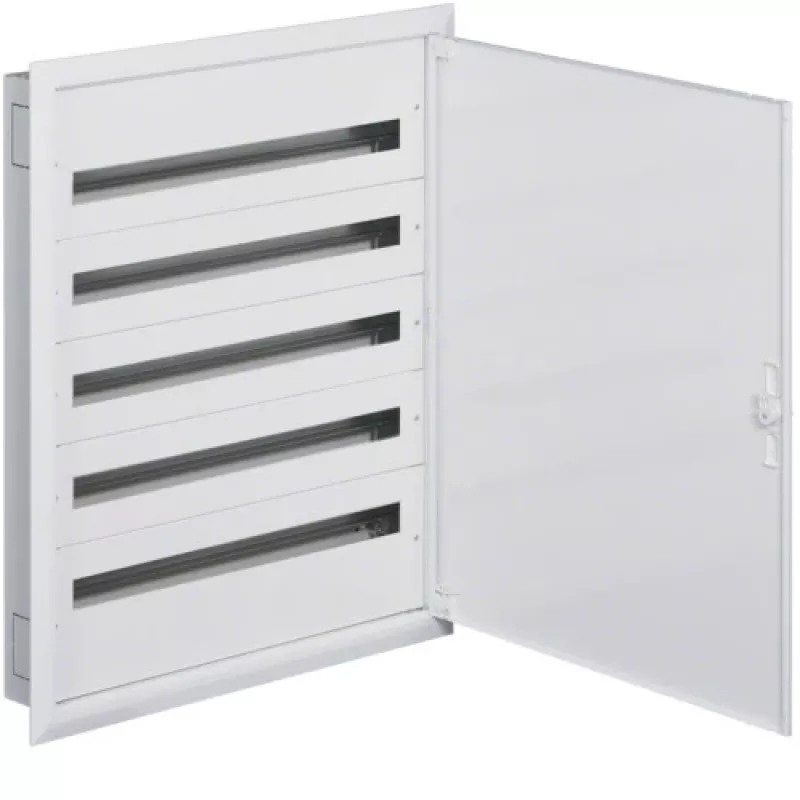

Hager FW536FT Flush-Mounted Distribution Box with PE/N Terminals, 5 Rows, 180 Modules, IP40, White

Electricians and panel builders often need a reliable flush-mounted enclosure for residential or commercial distribution boards. The Hager FW536FT offers a 5-row, 180-module capacity with integrated PE and N terminal blocks, simplifying installation and ensuring safe, organized wiring in walls.

Key specifications

• Mounting type: Flush-mounted
• Number of rows: 5
• Total modules: 180 (36 per row)
• Terminal blocks: PE and N included (10 terminals each, various cross-sections)
• Enclosure material: Self-extinguishing thermoplastic
• Door: Transparent, reversible
• IP rating: IP40 (with door)
• IK rating: IK07
• Insulation class: Class II
• Colour: White (RAL 9003)
• Standards: IEC 61439-3, IEC 60670-24
• Glow wire test: 650 °C
• Rated operational voltage: 400 V AC
• Rated insulation voltage: 500 V
• Maximum dissipation power: 100 W
• Cable entry: Pre-cut entries

Why choose it

The integrated PE and N terminals save time and reduce wiring errors, while the self-extinguishing thermoplastic housing and IP40 rating ensure safety in indoor installations. The transparent reversible door allows easy inspection and flexible opening direction.

Ideal use cases

• Residential distribution boards
• Commercial electrical panels
• Flush-mounted installations in dry indoor locations
• Projects requiring modular DIN rail equipment up to 180 modules

Good to know

Complies with IEC 61439-3 and IEC 60670-24. The enclosure is designed for flush mounting and includes pre-cut cable entries for quick installation. Terminal capacity: PE and N blocks each accept 2x25mm², 2x16mm², 2x10mm², 2x6mm², and 2x4mm² conductors.
