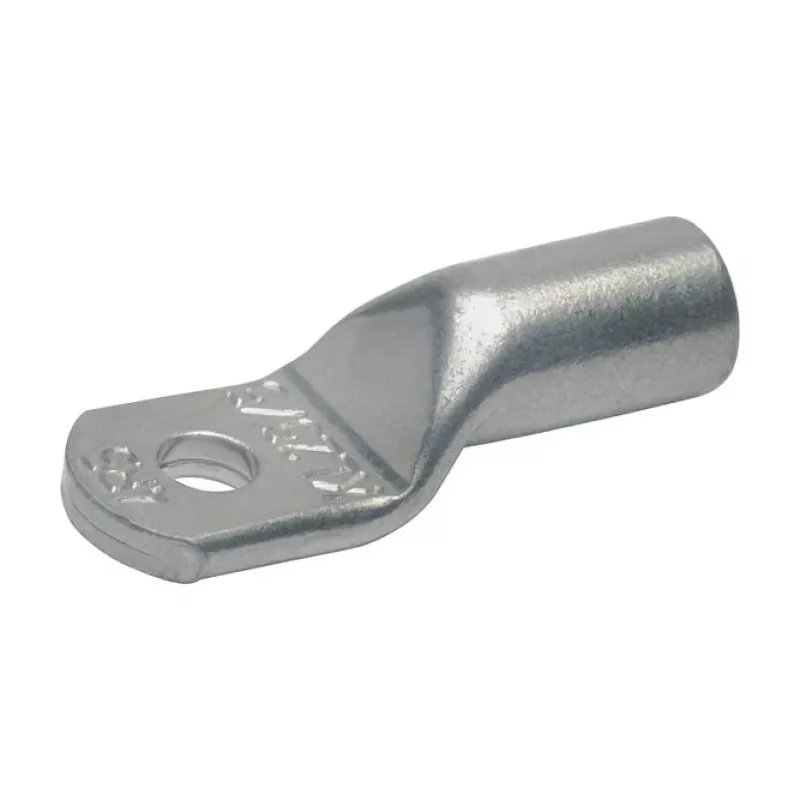

Gustav Klauke 7R10 Copper Crimp Cable Lug, 70 mm², M10 Bolt Hole, DIN 46235

This Gustav Klauke 7R10 crimp cable lug delivers a dependable, low-resistance connection for heavy-duty electrical work. Built from high-purity electrolytic copper, it is engineered for permanent, vibration-resistant terminations on 70 mm² copper conductors, making it a staple for power distribution and grounding systems.

Highlights

• Precision-machined from electrolytic copper (E-Cu) for excellent conductivity
• Designed for 70 mm² copper conductors
• M10 bolt hole (10 mm) fits standard studs and terminals
• Manufactured to DIN 46235 for consistent quality and dimensions
• Uninsulated ring terminal for reliable crimped connections
• Suitable for a wide temperature range: -55°C to +150°C

In daily use

Whether you are terminating power cables in an industrial panel, connecting grounding conductors, or installing heavy-duty machinery, this lug provides a secure, long-lasting joint. The bare copper surface ensures optimal current flow when properly crimped with a matching tool. Its robust construction withstands harsh environments, from outdoor installations to high-vibration applications.

Full specifications

• Product Type: Crimp Cable Lug (Ring Terminal)
• Material: Electrolytic Copper (E-Cu), uninsulated
• Cable Cross-Section: 70 mm²
• Bolt Hole Diameter: 10 mm (M10)
• Connection Method: Crimp
• Conductor Compatibility: Copper Conductors
• Standard: DIN 46235
• Surface Finish: Untreated / Bare Copper
• Voltage Rating: Up to 1000V (AC/DC)
• Operating Temperature Range: -55°C to +150°C
• RoHS Compliant: Yes
• Colour: Metallic Copper
• Packaging Unit: Single unit

Final note

This Gustav Klauke lug is a professional-grade component trusted by electricians and engineers. For best results, use a calibrated crimping tool and follow standard installation practices.
