Graphics Tablet HUION Kamvas 24 Plus GS2402 23.4 inch QHD IPS 2560x1440, 16:9, 8192 pressure

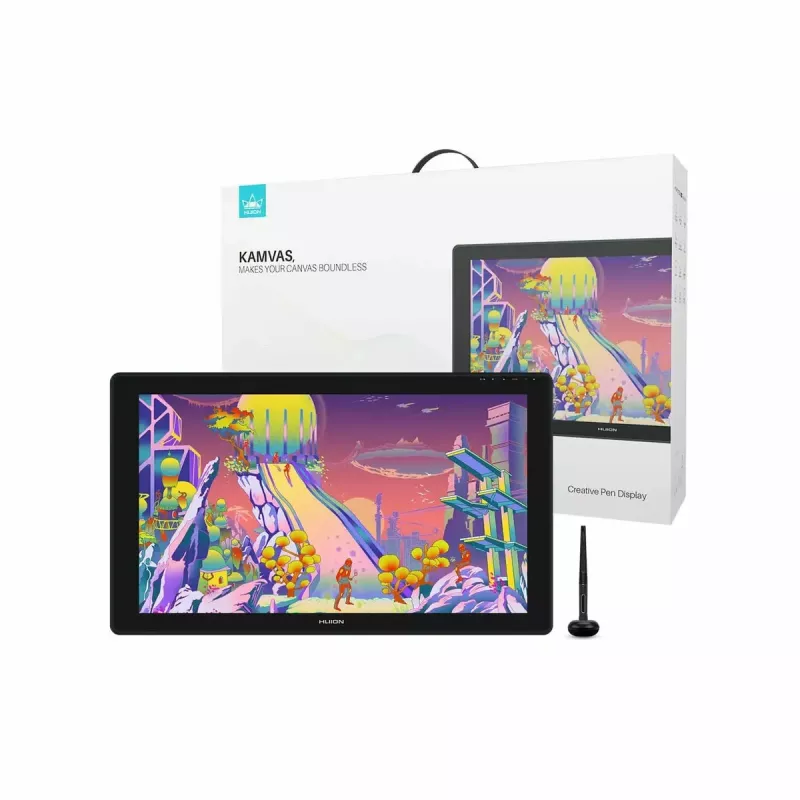

HUION Kamvas 24 Plus GS2402 is a 23.4" (60.45 cm) pen display with a Quad HD IPS anti‑glare screen (2560 x 1440, 16.7 million colours) and full lamination. The display offers 178° viewing angles, 220 cd/m² brightness and a typical contrast ratio of 1200:1. The active drawing area measures 526.85 x 296.35 mm and the wired device connects via USB Type‑C with additional USB Type‑A port. The tablet is supplied with a battery‑free pen, pen holder, glove, stand, cleaning cloth, 3‑in‑1 cable and plug adapter.

Advantages

Full lamination reduces parallax for more accurate pen-to-screen alignment. The IPS panel provides wide viewing angles and consistent colour reproduction, while 140% sRGB coverage ensures vivid tones. The pen supports 8192 pressure levels and a 5080 lpi resolution for detailed stroke control. Multiple included accessories and USB Type‑C wired connectivity simplify setup and workflow.

Suitable for

• Digital illustration and painting
• Photo retouching and colour grading
• Graphic design and layout work
• Concept art and character design
• Online teaching and live drawing demonstrations

Key specifications

• Display size: 23.4" (60.45 cm) diagonal
• Resolution: 2560 x 1440 (QHD)
• Panel type: IPS with anti‑glare surface
• Aspect ratio: 16:9
• Brightness: 220 cd/m²
• Contrast ratio (typical): 1200:1
• Viewing angles: 178° horizontal / 178° vertical
• Colour capability: 16.7 million colours, ~140% sRGB coverage (typical)
• Active area: 526.85 x 296.35 mm
• Pen pressure levels: 8192
• Pen resolution: 5080 lpi
• Pen report rate: 123 points per second
• Maximum reading height: 1 cm
• Response time: 14 ms
• Connectivity: USB Type‑C wired (2 Type‑C ports) and 1 USB Type‑A port
• Power input: 19 V adapter, input voltage range 100–240 V, 50/60 Hz
• Power consumption (typical): 20 W
• Operating temperature: -20 to 60 °C
• Operating humidity: 10–90% relative
• Dimensions (W × D × H): 604.2 × 358 × 21–28.3 mm
• Weight: 5.6 kg

How to use

Connect the tablet to a compatible computer or device using the included 3‑in‑1 cable and the USB Type‑C port (or the USB Type‑A port where applicable), and attach the 19 V power adapter. Install the HUION driver appropriate for your operating system (Windows 7, macOS 10.12 Sierra or Android where supported) to enable full pen functionality and pressure sensitivity. Place the tablet on a stable surface or use the included stand, remove the protective film if present, and begin drawing with the supplied wireless pen. Replace pen nibs as they wear using the spare tips provided in the kit.

Recommendations

For accurate colour work, calibrate your display with a colourimeter after driver installation. Use the glove to reduce friction between hand and screen and keep the anti‑glare surface clean with the supplied cloth. Allow adequate ventilation around the power adapter and avoid exposing the device to extreme temperatures or high humidity.
