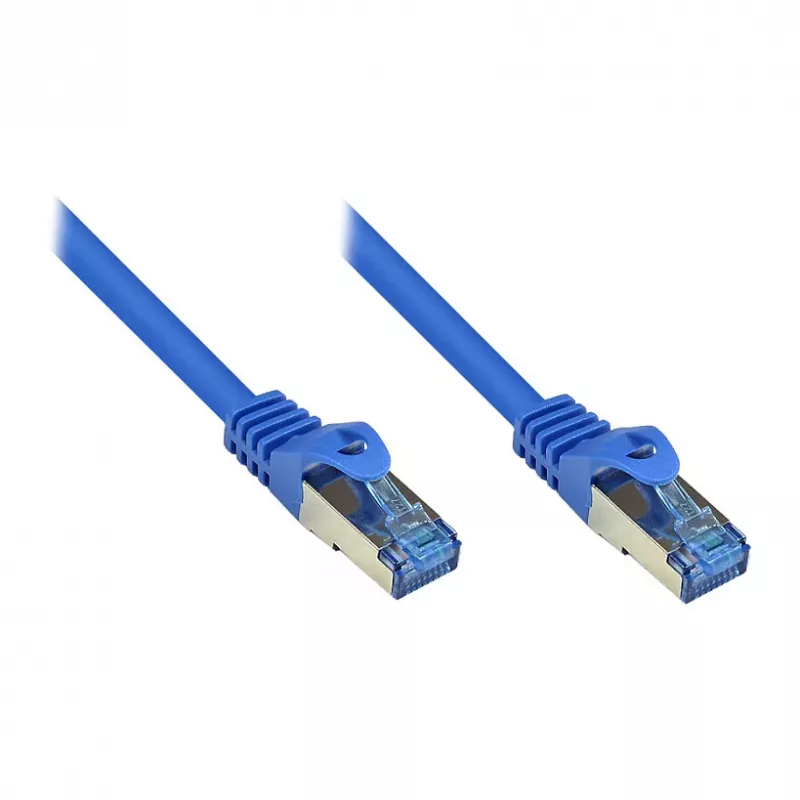

GoodConnections RNS® Patch Cable with Snagless Boot, Cat.6A, S/FTP, PiMF, Halogen-Free, 500MHz, Blue, 2m

The GoodConnections RNS® Patch Cable with Snagless Boot is a high-performance Cat.6A S/FTP cable designed for reliable 10 Gigabit Ethernet connections. With PiMF shielding and LSZH jacket, it ensures signal integrity and safety in demanding environments.

Advantages

This patch cable features a snagless boot (RNS® Rastnasenschutz) that protects the RJ45 connector tabs during installation and removal, reducing the risk of damage. The S/FTP shielding (overall braid + foil per pair) provides excellent protection against electromagnetic interference, making it ideal for high-speed data transmission. The halogen-free LSZH jacket ensures low smoke and zero halogen emissions in case of fire, enhancing safety in enclosed spaces.

Suitable for

• Data centers and server rooms requiring high-density cabling
• 10GBASE-T networks (10 Gigabit Ethernet)
• Industrial environments with high EMI
• Applications demanding low smoke and halogen-free materials

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Shielding: PiMF (Pairs in Metal Foil)
• Frequency Support: 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Length: 2 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Blue
• Connector Type: RJ45 (8P8C)
• Connector Feature: Snagless Boot
• Conductor Material: Copper
• Conductor Construction: Stranded
• Conductor Gauge: AWG 27/7
• Wiring Standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Compatibility: Backward compatible with Cat.6, Cat.5e, Cat.5

Recommendations

For optimal performance, use with Cat.6A compatible switches and network cards. Ensure proper cable management to maintain bend radius and avoid signal degradation.
