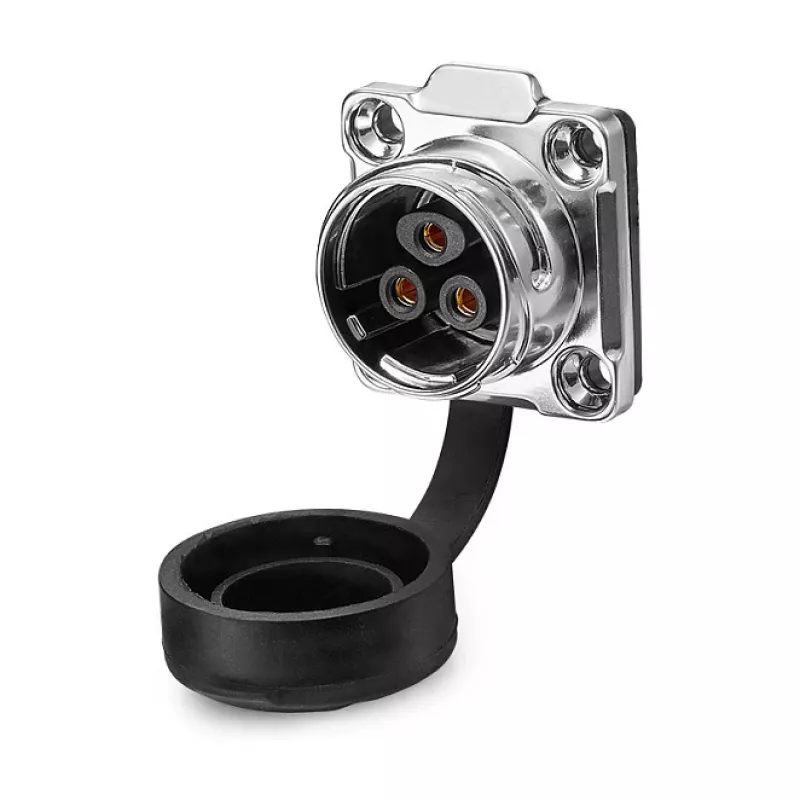

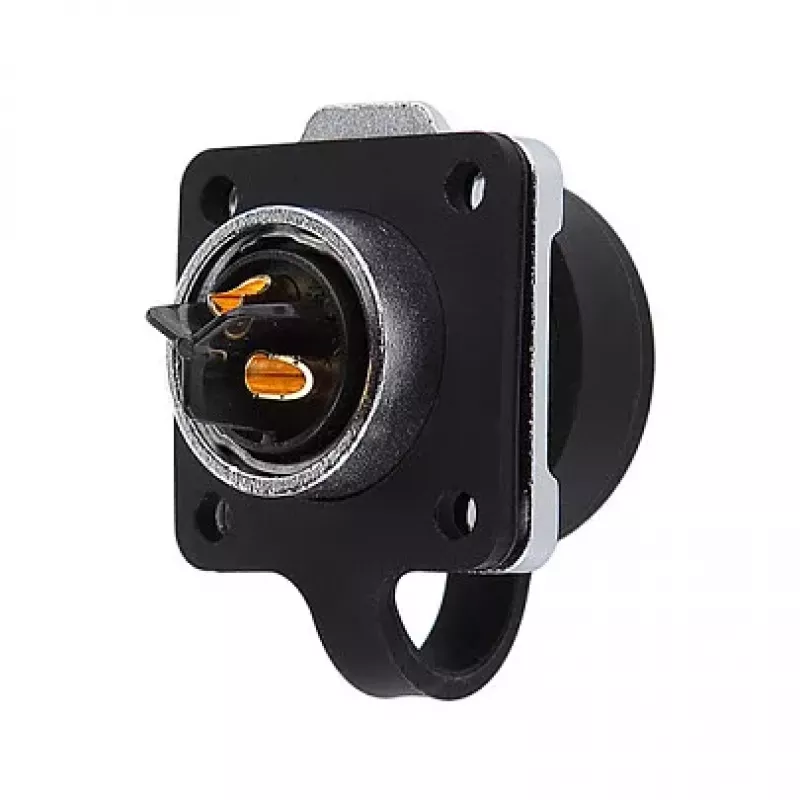

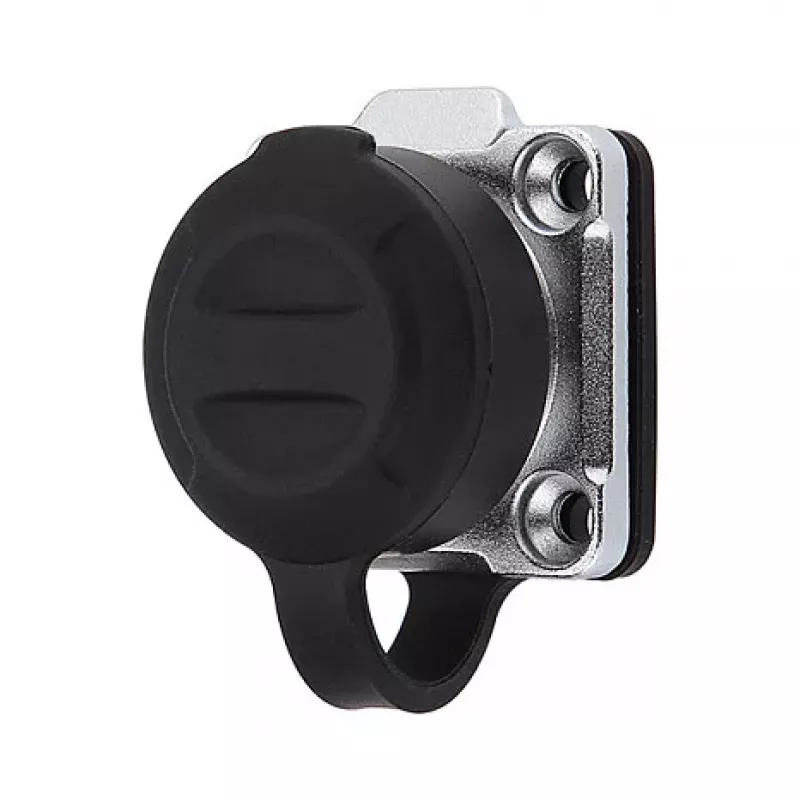

GoodConnections GC IC03-20P302 Industrial Coupling S3 Power 3-Pin Female IP67

The GoodConnections GC IC03-20P302 is a robust industrial power coupling from the S3 series, designed for reliable power transmission in demanding environments. This female connector features 3 contacts, a screw locking mechanism, and IP67 protection, making it ideal for harsh industrial applications.

Advantages

High durability with polyamide housing and silver-plated contacts ensures long service life and excellent conductivity. The IP67 rating provides dust-tight and waterproof protection, suitable for outdoor and wet conditions. Easy solder termination and cable mounting simplify installation.

Suitable for

• Industrial automation systems
• Machine tools and control cabinets
• Power distribution in harsh environments
• Outdoor and wet area connections

Key specifications

• Connector Type: Industrial Power Coupling
• Series: S3
• Number of Contacts: 3
• Gender: Female
• Rated Current: 20 A
• Rated Voltage: 250 V AC
• Ingress Protection: IP67
• Termination Style: Solder
• Mounting Type: Cable Mount
• Locking Mechanism: Screw Lock
• Housing Material: Polyamide (PA66)
• Contact Material: Copper Alloy
• Contact Plating: Silver
• Operating Temperature: -25°C to +85°C
• Mating Cycles: ≥ 500
• Cable Outer Diameter Range: 6 - 12 mm
• Insulation Resistance: > 100 MΩ
• Dielectric Withstanding Voltage: 2000 V AC

Recommendations

For optimal performance, use with matching S3 series plugs and ensure proper cable sealing within the specified diameter range. Verify compatibility with your system's voltage and current requirements.
