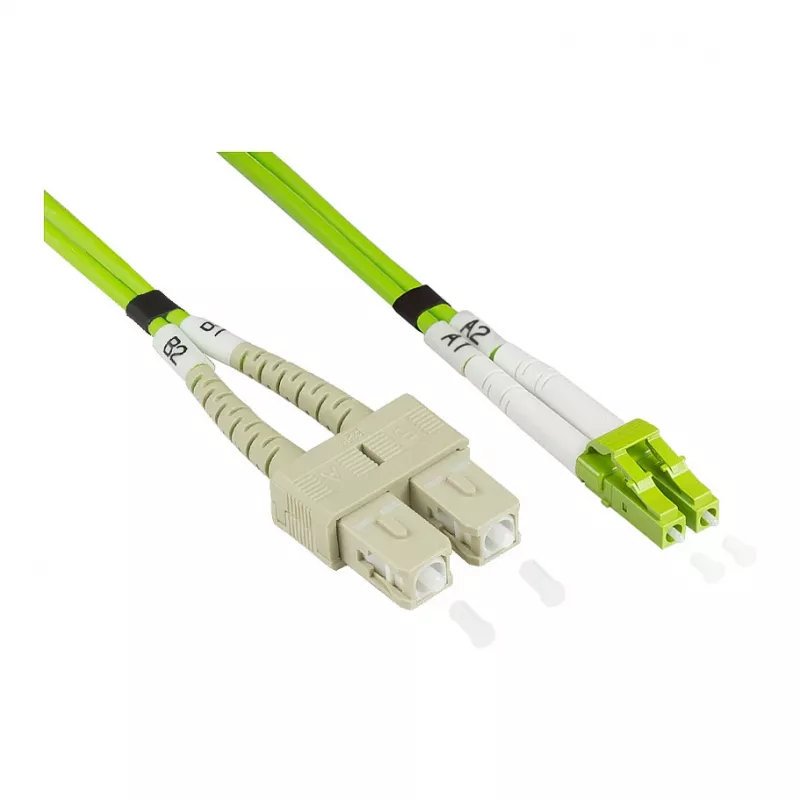

GoodConnections Alcasa LW-815LS5 Duplex Fiber Optic Patch Cable 15m OM5 LSZH LC to SC Green

High-density data environments demand reliable, high-bandwidth connectivity. This GoodConnections Alcasa LW-815LS5 fibre optic patch cable meets the challenge by delivering OM5 wideband multimode performance over a 15-metre run, terminated with duplex LC and SC connectors for flexible network patching.

Who is it for

Ideal for data centres, enterprise LANs, storage area networks, and any 25/40/100G application using OM5 multimode fibre. The LSZH jacket makes it suitable for installation in confined spaces and public buildings where safety and low smoke emission are critical.

Main features

• OM5 wideband multimode fibre (50/125 µm) with duplex construction
• 15 m length with LC to SC connectors
• Low Smoke Zero Halogen (LSZH) jacket in green
• UPC polish for low insertion loss and high return loss
• Supports wavelengths 850 nm and 953 nm for short-wave division multiplexing (SWDM)
• Compliant with TIA-492AAAE and IEC 60793-2-10 Type A1a.4

Specifications

• Connector A: LC Duplex
• Connector B: SC Duplex
• Fibre Mode: Multimode
• Fibre Class: OM5 (WBMMF)
• Core/Cladding: 50/125 µm
• Length: 15 m
• Jacket: LSZH
• Colour: Green
• Effective Modal Bandwidth @850nm: 28000 MHz*km; @953nm: 4700 MHz*km
• Max Attenuation @850nm: ≤3.0 dB/km; @1300nm: ≤1.0 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C

Tips

When connecting, ensure that both LC and SC connectors are securely latched. Use appropriate cable management to avoid bending beyond the minimum bend radius. For best performance, match the cable with OM5-rated transceivers and keep connections clean.
