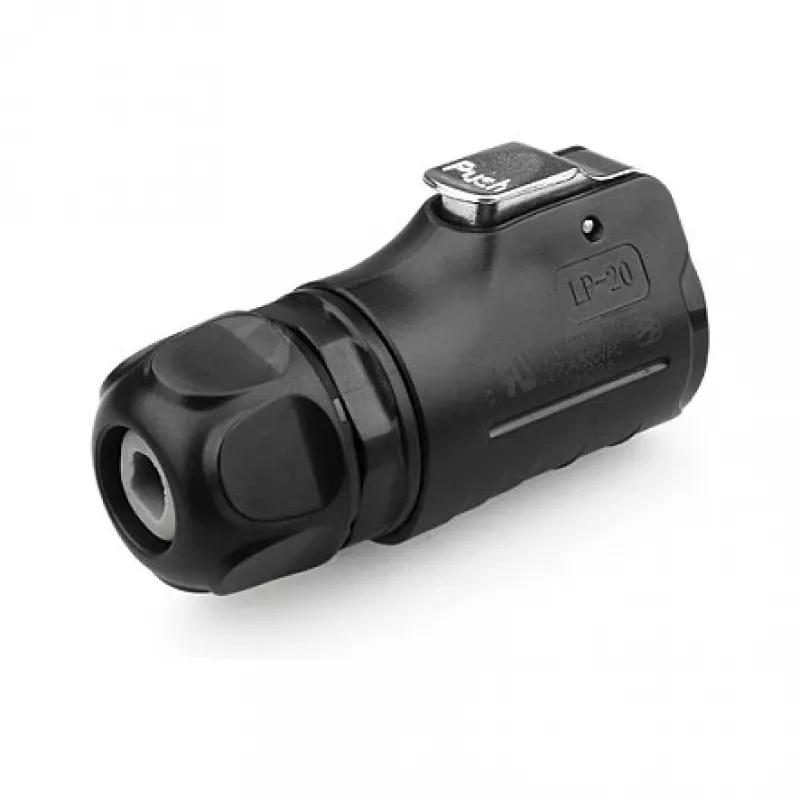

Good Connections Industrial Connector S1 - Power 4-Pin M20 Male Plug with Click-Lock, Solder Termination, IP65/66

The Good Connections Industrial Connector S1 - Power (4-Pin) is a robust circular power connector designed for demanding industrial environments. Featuring a male plug with click-lock bayonet mechanism, it ensures secure and reliable connections. With IP65/IP66 protection when mated, it is resistant to dust and water jets. The M20 cable outlet accommodates cables from 6 to 10 mm diameter, and solder termination provides a permanent, low-resistance connection.

Advantages

This connector offers high reliability with a rated voltage of 250 V and current of 16 A. The silver-plated brass contacts ensure excellent conductivity and corrosion resistance. The polyamide housing is flame retardant (UL94 V-0) and withstands temperatures from -25 °C to +85 °C. With over 500 mating cycles, it is built for long-term use in automation, machinery, and power distribution applications.

Suitable for

• Industrial automation and control systems
• Power supply connections for machinery and equipment
• Sensor and actuator connections in harsh environments
• Outdoor or wet industrial applications requiring IP65/IP66

Key specifications

• Connector Type: Circular Power Connector (Binder Series 693 S1)
• Gender: Male (Plug)
• Number of Contacts: 4-Pin
• Termination Style: Solder
• Mounting Type: Cable Mount
• Locking Mechanism: Bayonet (Click-Lock)
• Ingress Protection: IP65 / IP66 (when mated)
• Rated Voltage: 250 V (AC/DC)
• Rated Current: 16 A
• Contact Material: Brass (CuZn), Silver Plated
• Housing Material: Polyamide (PA)
• Temperature Range: -25 °C to +85 °C
• Cable Outlet Thread: M20
• Cable Diameter Range: 6 - 10 mm
• Insulation Resistance: ≥ 10^10 Ohm
• Mating Cycles: > 500
• Pollution Degree: 3
• Flammability Rating: UL94 V-0

Recommendations

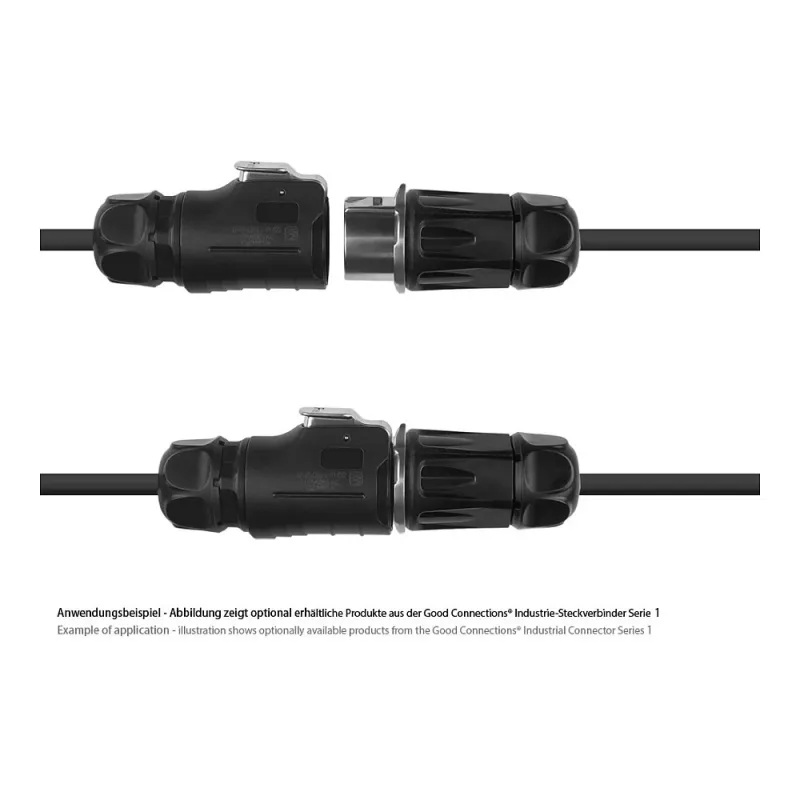

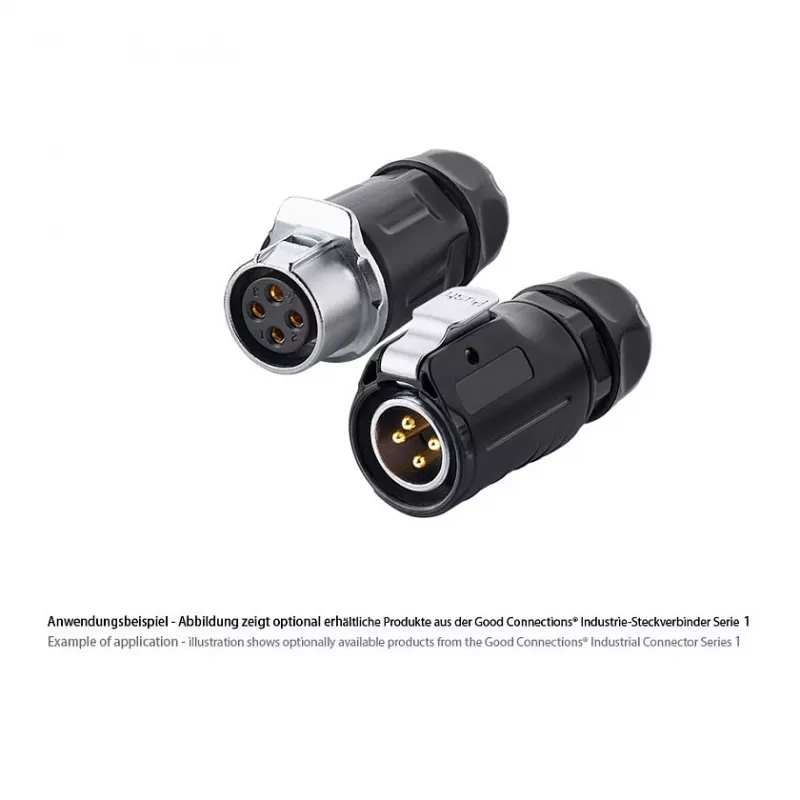

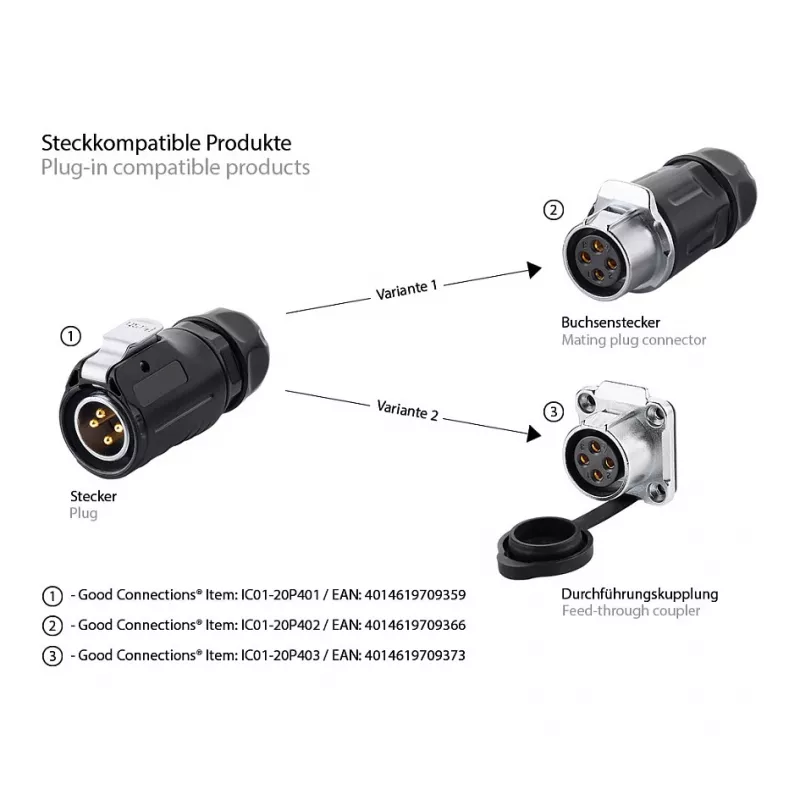

For optimal performance, use with matching Good Connections S1 power receptacles. Ensure proper cable strain relief and follow manufacturer's installation guidelines. Suitable for use in pollution degree 3 environments.
