Goobay CAT 6 S/FTP Patch Cable 0.25m Black 90° Angled LSZH Copper 51541

The Goobay 51541 CAT 6 S/FTP patch cable is a high-performance network cable designed for reliable Gigabit Ethernet connections. With a length of 0.25 meters and a 90° angled connector on one end, it is ideal for tight spaces behind desks, racks, or wall-mounted devices. The cable features S/FTP shielding (PiMF) to minimize electromagnetic interference, ensuring stable data transmission. Made from high-quality copper conductors and a low smoke zero halogen (LSZH) jacket, it is safe for use in public and enclosed areas.

Advantages

Space-saving 90° angled connector allows for flexible routing in confined spaces. S/FTP shielding provides excellent protection against interference. LSZH jacket reduces toxic fumes in case of fire. Gold-plated contacts ensure reliable connectivity. Snagless boot protects the latch during installation.

Suitable for

• Connecting network devices in tight spaces (e.g., behind furniture, in server racks)
• Gigabit Ethernet networks (10/100/1000BASE-T)
• Home and office networking
• Data centers and structured cabling

Key specifications

• Category: CAT 6
• Shielding: S/FTP (PiMF)
• Length: 0.25 m
• Connector A: RJ45 Male, Straight
• Connector B: RJ45 Male, 90° Angled (Latch on top)
• Conductor Material: Copper (AWG 26/7 stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Wiring Standard: TIA/EIA 568B
• Max Data Transfer Rate: 1 Gbps
• Max Bandwidth: 250 MHz
• Contact Plating: Gold-plated
• Boot Type: Snagless

Recommendations

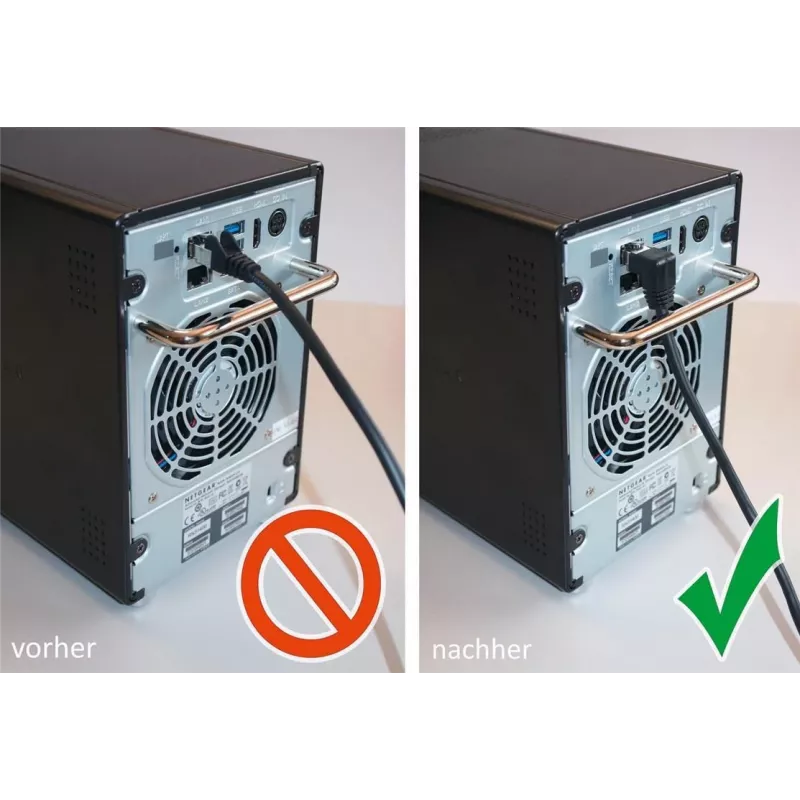

For optimal performance, use this cable with CAT 6 compatible devices. The angled connector is particularly useful when space is limited or when cables need to run close to walls. Ensure the latch orientation matches your port layout.
