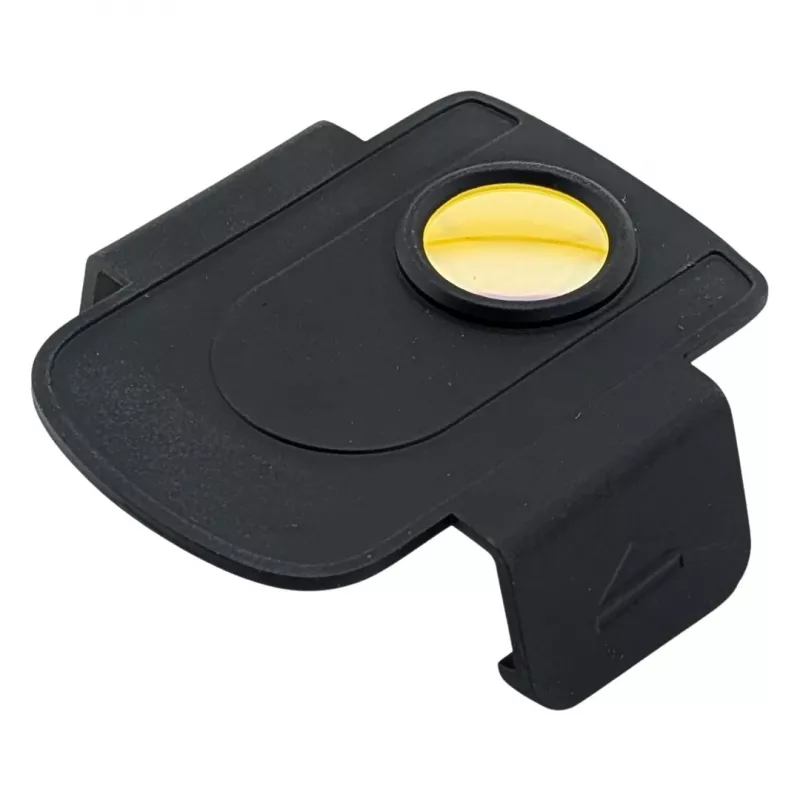

GLOVII 5x Macro Lens for GuideIR E3/E4 Series Thermal Cameras for Precision Electronics Diagnostics

The GLOVII 5x Macro Lens is a high-magnification accessory designed specifically for GuideIR E3 and E4 series thermal cameras. It enables detailed thermal inspection of micro-electronics, PCBs, and small components with exceptional clarity. This lens is ideal for precision diagnostics in electronics manufacturing, repair, and quality control.

Advantages

Enhances the spatial resolution of your thermal camera by 5x, allowing you to detect minute temperature differences on small targets. The fixed focus design ensures consistent performance, and the athermalized optics maintain focus across a wide temperature range. The durable metal housing provides robust protection in demanding environments.

Suitable for

• Micro-electronics inspection
• PCB diagnostics
• Small component thermal analysis
• Quality control in electronics manufacturing
• Failure analysis and repair

Key specifications

• Magnification: 5x
• Compatible Cameras: GuideIR E3 Pro, E4 Pro, E3 Max, E4 Max
• Field of View: Approx. 15 x 11 mm
• Minimum Focus Distance: 10 mm
• Working Distance: 10 mm
• Lens Type: Fixed Focus Macro
• Optical Material: Germanium
• Spectral Range: 8-14 µm
• Mounting Type: Screw-on
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C
• Humidity: 10% to 95% RH (non-condensing)
• Housing Material: Durable Metal Alloy
• Color: Black

Recommendations

For optimal results, use this macro lens with GuideIR E3 or E4 series cameras. Ensure the lens is securely attached before use. Store in a clean, dry environment when not in use.
