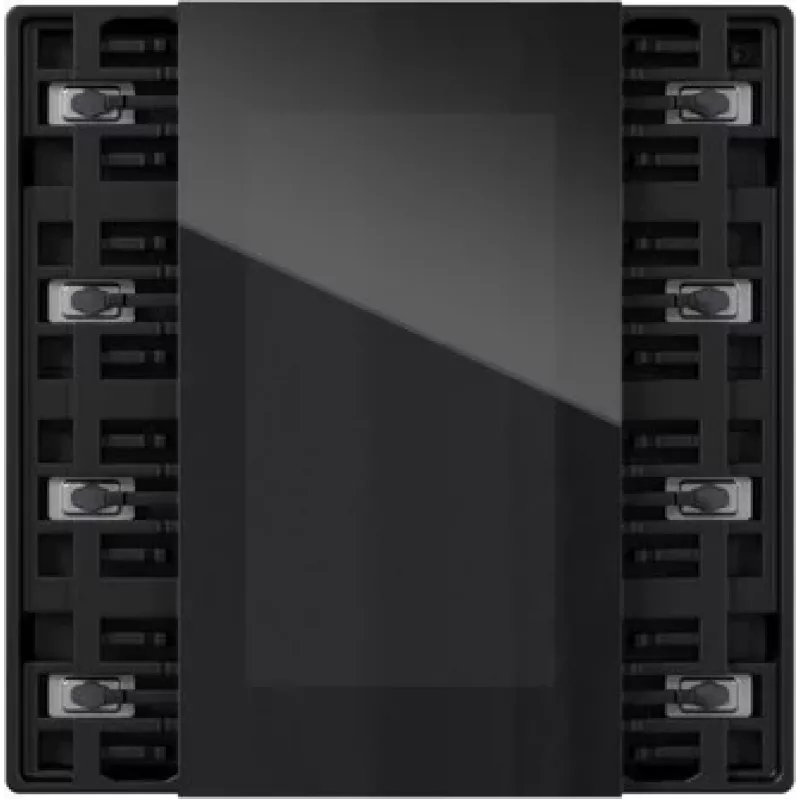

Gira Tastsensor 4.55 Plus 2f/4f KNX Black 5016050

This Gira push-button sensor integrates a temperature sensor and four configurable status LEDs, delivering precise room climate data and visual feedback on a single KNX bus device.

Overview

The Gira Tastsensor 4.55 Plus 2f/4f KNX in black is a flush-mounted KNX push-button sensor from the System 55 design line. It features two rockers, each providing two independent control points, for a total of four functions. The device includes an integrated temperature sensor for room climate monitoring. Four status LEDs, individually configurable in red, green, or blue, provide clear visual indication. The sensor supports switching, dimming, blind control, scene recall, and value transmitter functions. Configuration is done via ETS software. The device is powered directly from the KNX bus and connects via a bus terminal block.

What stands out

• Integrated temperature sensor for room climate monitoring
• Four configurable status LEDs (red/green/blue) with adjustable brightness
• Two rockers with four independent control points
• Supports switching, dimming, blind control, scene recall, and value transmitter
• Mechanical push-buttons with tactile feedback
• Blocking function via KNX object
• Firmware update possible via ETS

Technical details

• System protocol: KNX
• Number of rockers: 2
• Number of functions: 4
• Colour: Black
• Design line: Gira System 55
• Mounting type: Flush-mounted
• Power supply: KNX bus voltage
• Configuration software: ETS
• Operating temperature: -5 °C to +45 °C
• Material: Thermoplastic
• Bus connection: Bus terminal block
• Product type: Push-button sensor

Our verdict

A versatile KNX push-button sensor with integrated temperature sensing and flexible LED indication, ideal for intelligent building control.
