GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4

GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
36 mo.
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
GIGABYTE X870E AORUS PRO X3D ATX Motherboard — AMD Socket AM5, 18+2+2 VRM, DDR5 up to 9000Hz (OC), 2×PCIe5 + 2×PCIe4, Wi‑Fi 7, 5GbE, USB4
R7,507

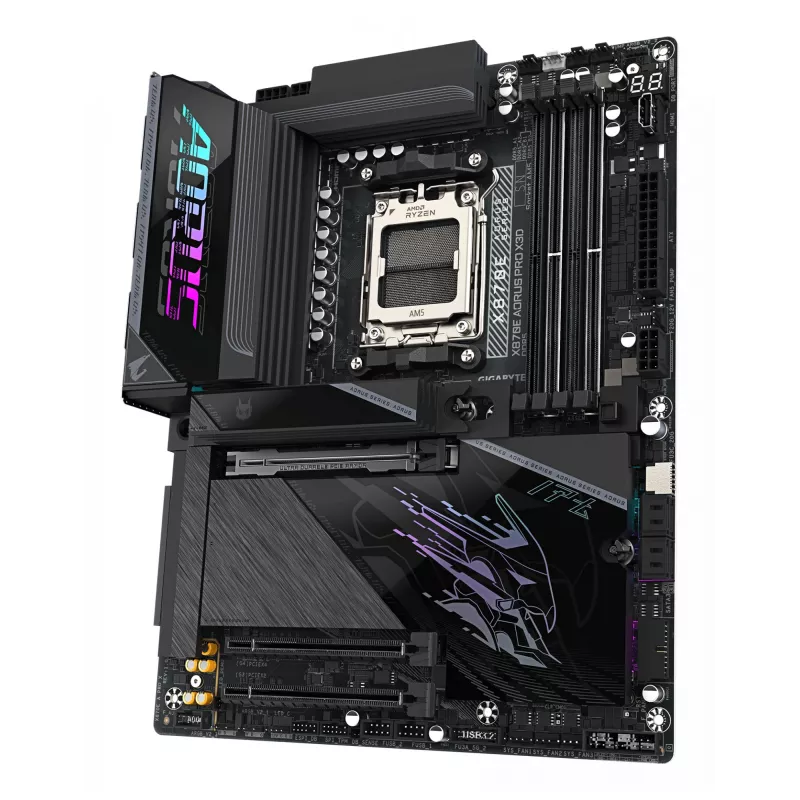

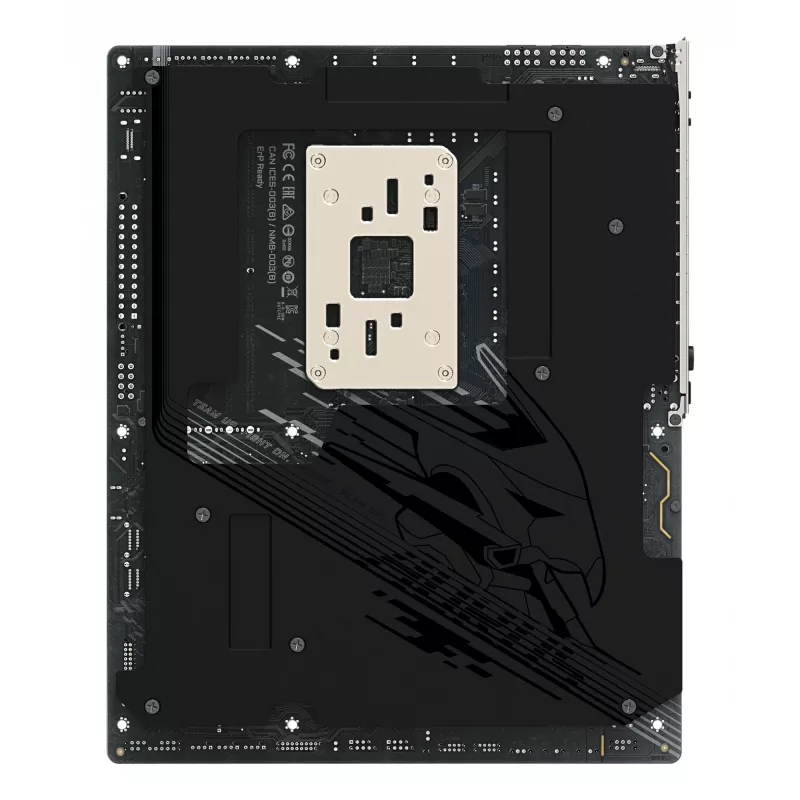

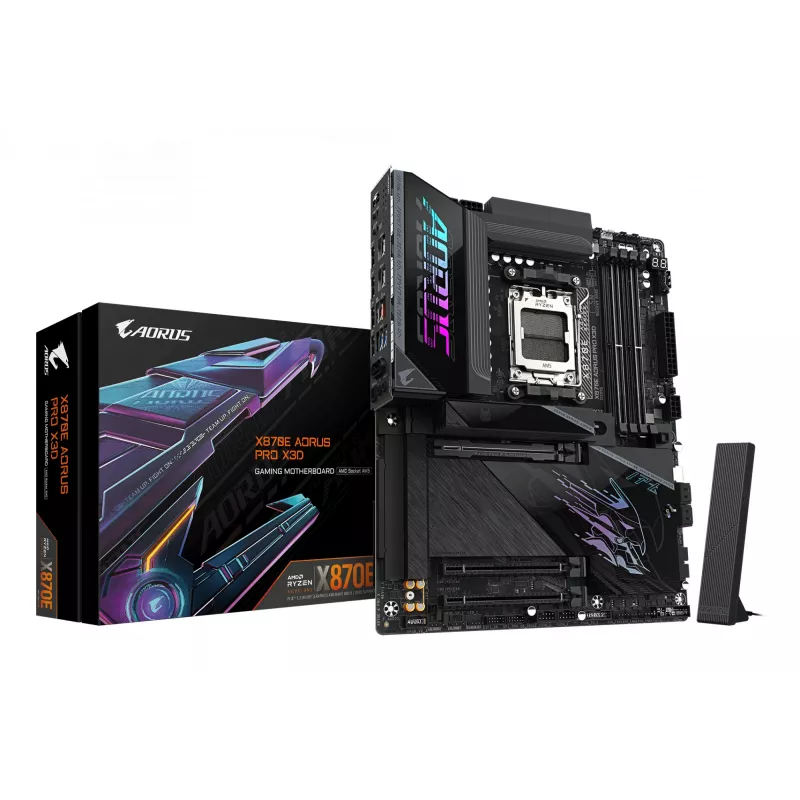

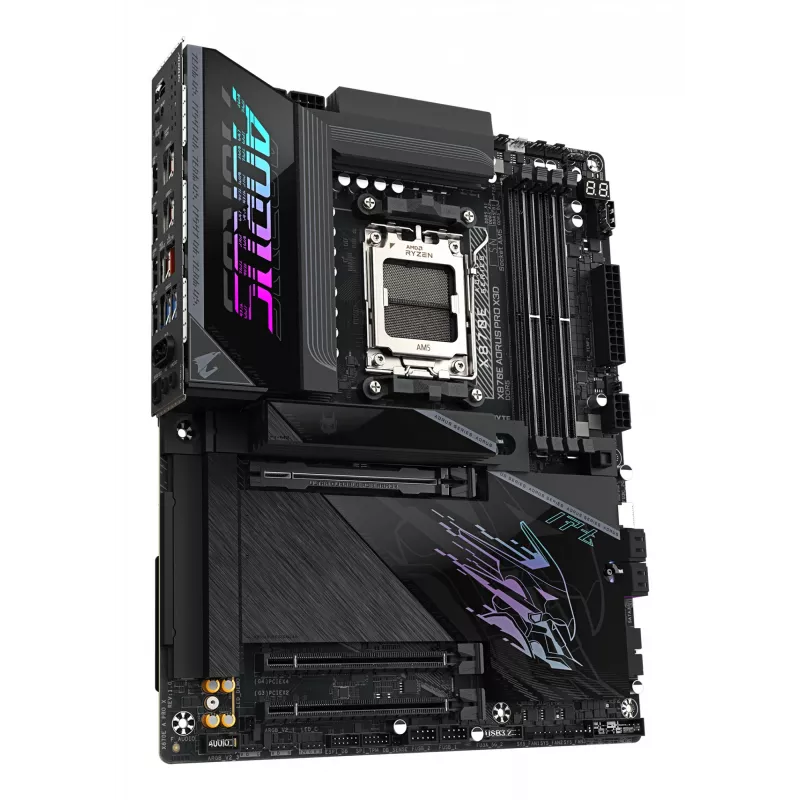

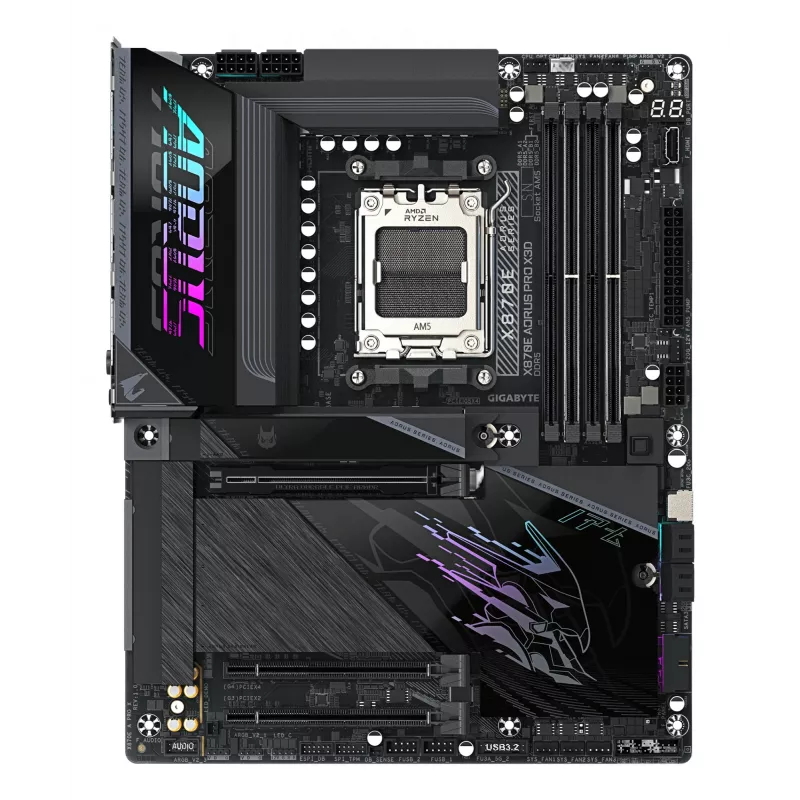

The GIGABYTE X870E AORUS PRO X3D is an ATX motherboard for AMD Socket AM5 processors (AMD Ryzen 7000/8000/9000). It features a digital twin 18+2+2 VRM design, four DDR5 DIMM slots supporting up to 256 GB (DDR5 OC up to 9000 MT/s), dual PCIe 5.0 x16 slots plus two PCIe 4.0 expansions, and four M.2 co... Read More
Stock 16 Code 1540217 Brand GIGABYTE Model X870E A PRO X Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE X870E AORUS PRO X3D is an ATX motherboard for AMD Socket AM5 processors (AMD Ryzen 7000/8000/9000). It features a digital twin 18+2+2 VRM design, four DDR5 DIMM slots supporting up to 256 GB (DDR5 OC up to 9000 MT/s), dual PCIe 5.0 x16 slots plus two PCIe 4.0 expansions, and four M.2 connectors including PCIe 5.0 support. Integrated connectivity includes Wi‑Fi 7, 5GbE LAN, Dual USB4 Type-C with DP-Alt, HDMI output and a Front QC-USB 65W port. The board supports multiple storage interfaces (M.2, SATA III) with RAID 0/1/5/10 and uses a UEFI AMI BIOS.

Advantages

This motherboard combines high-end power delivery and advanced cooling solutions such as M.2 EZ-Flex and M.2 EZ-Latch for efficient SSD installation and heat dissipation. It offers extensive and modern connectivity — Wi‑Fi 7, 5GbE, USB4 and PCIe 5.0 — making it suitable for demanding gaming, content creation and workstation tasks. Memory overclocking support and a robust VRM enable stable performance under heavy CPU loads.

Suitable for

  • High-performance gaming builds
  • Content creation and video editing workstations
  • PC builds requiring multiple high-speed NVMe drives
  • Enthusiast overclocking and custom cooling setups

Key specifications

  • Form factor: ATX
  • Chipset: AMD X870E
  • Processor socket: Socket AM5 (supports AMD Ryzen 7000 / 8000 / 9000 series)
  • VRM: Digital twin 18+2+2 phases
  • Memory: 4× DDR5 DIMM slots, up to 256 GB, OC to 9000 MT/s
  • Expansion slots: 2× PCIe 5.0 x16, 2× PCIe 4.0
  • Storage: 4× M.2 (including PCIe 5.0 x4), SATA III, RAID 0/1/5/10
  • Networking: Wi‑Fi 7 (802.11be), Bluetooth 5.4, 5GbE LAN (plus 2.5GbE options)
  • Audio: Realtek ALC1220-VB, 7.1 channels
  • BIOS: UEFI AMI 512 Mbit, ACPI 5.0, Clear CMOS jumper and button

How to use

Install the motherboard into an ATX-compatible case and mount an AMD Socket AM5 CPU according to the CPU and cooler manufacturer instructions. Populate DDR5 modules across the four DIMM slots following the manual for optimal channel configuration. Connect storage devices to M.2 slots or SATA ports and install graphics and expansion cards into PCIe slots. Attach the Wi‑Fi antenna(s) using the WIFI EZ-Plug design, connect power and front-panel cables, then update or configure the UEFI AMI BIOS as needed for memory XMP/EXPO profiles, boot order and RAID setup.

Recommendations

For stable overclocking and heavy multi-drive configurations, use a high-quality power supply and ensure adequate case airflow; apply the M.2 EZ-Flex and EZ-Latch features to secure and cool NVMe SSDs properly.
Key Highlights
  • X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
  • AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 18+2+2 phases VRM solution
  • M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
  • Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4

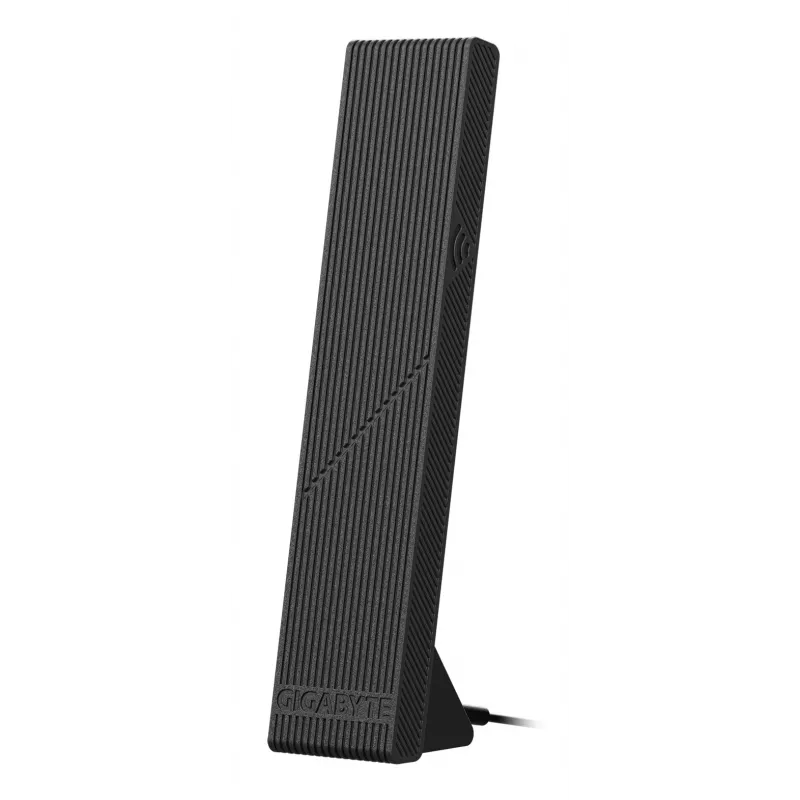

  • Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

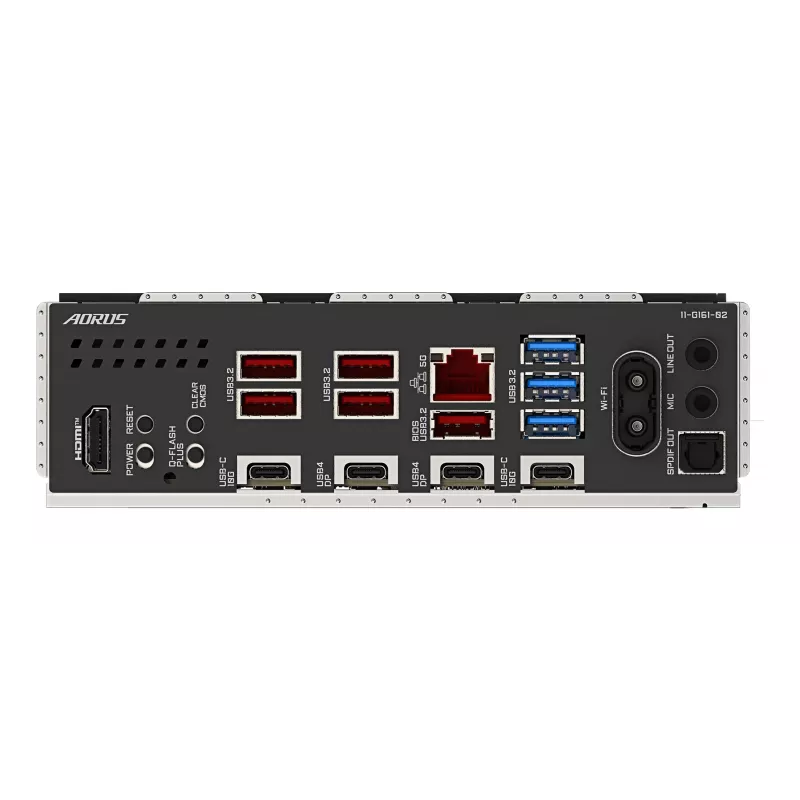

  • Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870E Realtek ALC1220-VB 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 8
  • BIOS type: UEFI AMI 512 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220-VB
Audio output channels
7.1 channels
Batteries included
Yes
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
512 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Cooling type
Passive
Country of origin
Taiwan
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
Digital audio optical out
1
DirectX version
12.0
DisplayPort version
1.4
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDCP version
2.3
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8126
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2304 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD X870E
Motherboard chipset family
AMD
Motherboard form factor
ATX
Number of battery cells
1
Number of chassis fan connectors
6
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (M) slots
4
Number of memory slots
4
Number of noise detection headers
1
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
8
Number of temperature sensor headers
2
Number of water pump connectors
3
Package depth
294 mm
Package height
80 mm
Package weight
4.25 kg
Package width
345 mm
Parallel processing technology support
Not supported
PC health monitoring
CPU, Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Black
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
9000 MHz
Supported memory clock speeds
9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 2x2 ports quantity
2
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
3.73 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Qualcomm QCNCM865
