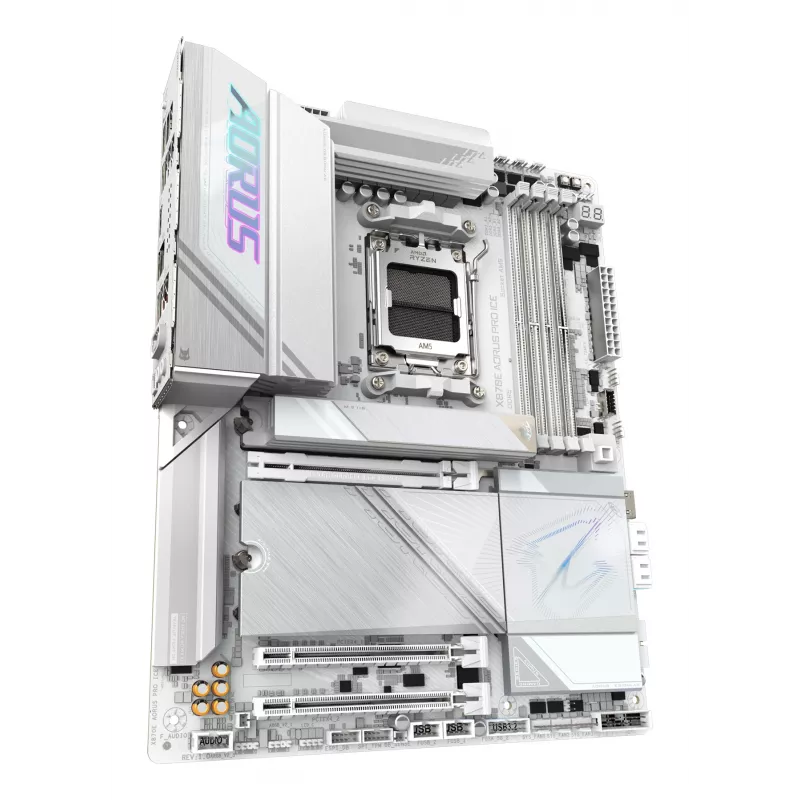

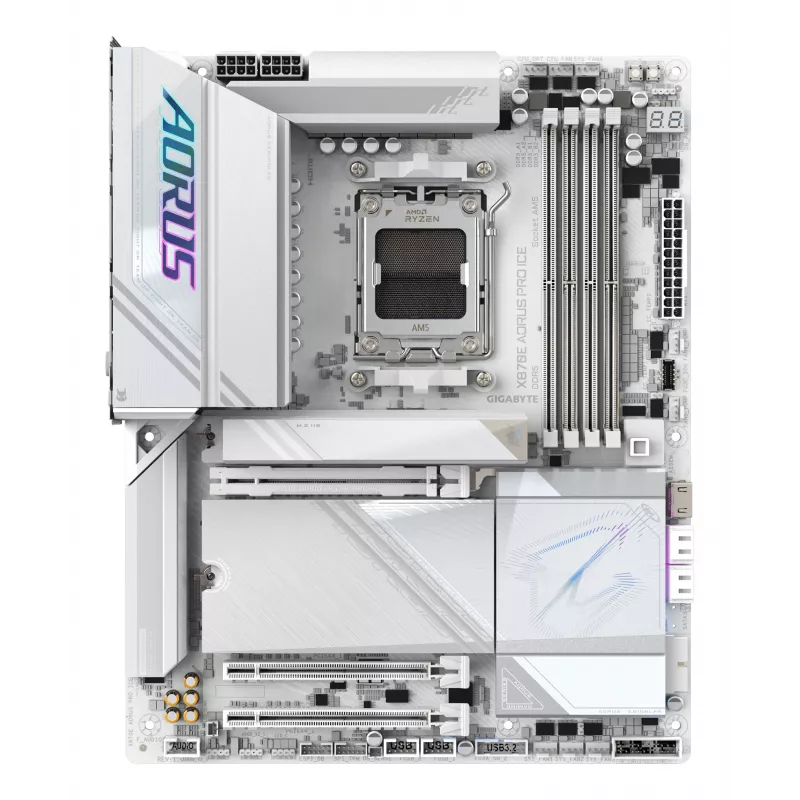

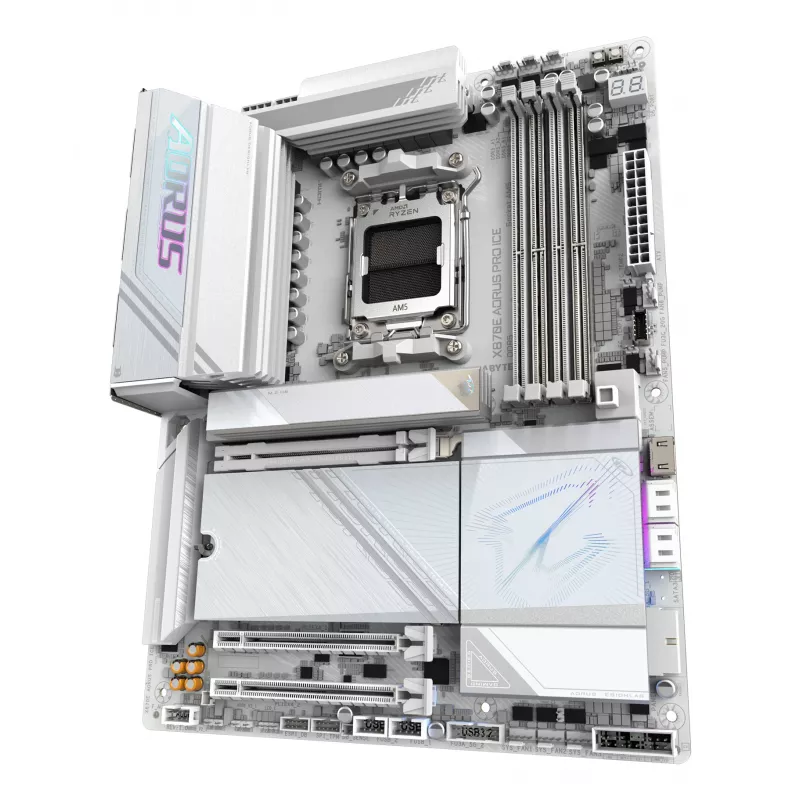

Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN

Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
36 mo.
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS PRO ICE — AMD X870E, Socket AM5, ATX, DDR5, 4×DIMM, Wi‑Fi 7, 2.5Gb LAN
R6,529
The GIGABYTE X870E AORUS PRO ICE is an ATX motherboard for Socket AM5 systems, designed to support AMD Ryzen 9000 series processors. Built on the AMD X870E chipset, it provides a 16+2+2 phases digital VRM for stable power delivery, four DDR5 memory slots with up to 256 GB total capacity and OC suppo... Read More
Stock 100 Code 29760 Brand GIGABYTE Model X870E AORUS PRO ICE Warranty 3 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE X870E AORUS PRO ICE is an ATX motherboard for Socket AM5 systems, designed to support AMD Ryzen 9000 series processors. Built on the AMD X870E chipset, it provides a 16+2+2 phases digital VRM for stable power delivery, four DDR5 memory slots with up to 256 GB total capacity and OC support up to 8000 MHz, multiple PCIe slots including three PCIe 5.0 lanes and one PCIe 4.0 slot, integrated Wi‑Fi 7 and 2.5GbE LAN, and a variety of storage interfaces such as M.2 and SATA III for high-performance PC configurations.

Advantages

The X870E AORUS PRO ICE combines robust power delivery and modern connectivity to support high-core-count AMD Ryzen 9000 CPUs and fast DDR5 memory configurations. Its PCIe 5.0 support and multiple M.2/SATA interfaces enable flexible, high-bandwidth storage and GPU setups, while onboard Wi‑Fi 7 and 2.5GbE LAN provide fast network options. The ATX form factor and four DIMM slots offer expandability for gaming, content creation, and professional workloads.

Suitable for

  • High-performance gaming PCs with AMD Ryzen 9000 processors
  • Content creation and video editing systems requiring fast memory and storage
  • Workstations needing multiple high-bandwidth PCIe devices and NVMe storage
  • Users who want modern connectivity: Wi‑Fi 7 and 2.5GbE wired LAN

Key specifications

  • Form factor: ATX
  • Chipset: AMD X870E
  • Processor socket: Socket AM5 (AMD Ryzen 9000 support)
  • VRM: 16+2+2 phases digital
  • Memory: 4 × DDR5 DIMM slots, up to 256 GB, OC up to 8000 MHz
  • PCIe: 3 × PCIe 5.0 lanes, 1 × PCIe 4.0 slot
  • Networking: Wi‑Fi 7, 2.5GbE LAN
  • Storage: Multiple M.2 and SATA III interfaces
  • Weight: 2.4 kg

How to use

Install the motherboard into a compatible ATX case and seat an AM5 CPU according to the processor and motherboard manuals. Populate up to four DDR5 modules in the recommended slot configuration for dual- or quad-channel operation and configure memory OC settings in the BIOS if using higher-frequency kits. Connect M.2 SSDs and SATA drives to available slots and configure storage in BIOS/UEFI. Install GPU and expansion cards into the appropriate PCIe 5.0/4.0 slots, attach cooling and power connectors following GIGABYTE guidelines, and update the BIOS and drivers to ensure full compatibility with Ryzen 9000 processors and Wi‑Fi 7 functionality.

Recommendations

For optimal stability with high-core-count Ryzen 9000 CPUs and memory overclocks, use a high-quality ATX chassis with sufficient airflow, a capable CPU cooler, and a PSU that provides stable 12V rail(s). Populate memory modules in the recommended slots and keep BIOS firmware up to date to benefit from platform improvements and compatibility fixes.
Key Highlights
  • AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Twin 16+2+2 Phases Digital VRM with 80A Smart Power Stage
  • Dual Channel DDR5:4DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
  • M.2 Gen5 with EZ-Latch Plus
  • Efficient Overall Thermal: Fully Covered MOSFET Heatsinks
  • Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP

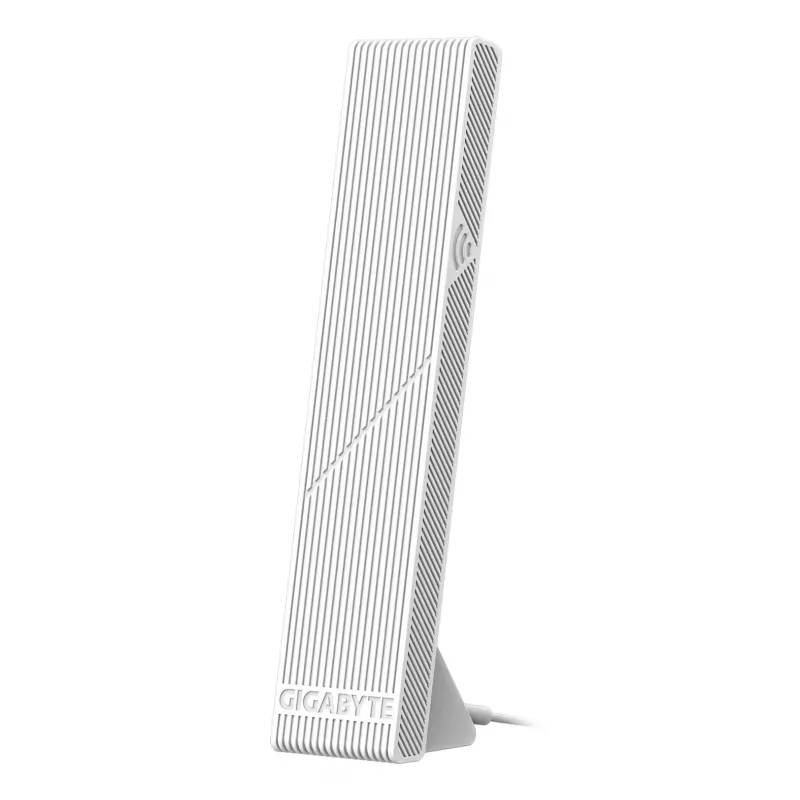

  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870E Realtek ALC1220 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.3
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220
Audio connector
Yes
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
0
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum internal memory supported by processor
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD X870E
Motherboard chipset family
AMD
Motherboard form factor
ATX
mSATA ports quantity
0
Number of battery cells
1
Number of chassis fan connectors
6
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (M) slots
4
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
8
Number of water pump connectors
2
On-board graphics card
No
Package depth
294 mm
Package height
80 mm
Package weight
2.74 kg
Package width
345 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots
0
PCI Express x1 (Gen 4.x) slots
0
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 3.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x4 slots
2
PCI Express x8 (Gen 3.x) slots
0
PCI Express x8 (Gen 4.x) slots
0
PCI Express x8 (Gen 5.x) slots
0
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
0
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
4400,4800,5600,6000,6200,6400,6600,6800,7000,7600,7800,8000,8200 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 connectors
1
USB 3.2 Gen 2x2 Type-C ports quantity
0
USB4 Gen 2x2 ports quantity
2
USB4 Gen 3x2 ports quantity
0
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
2.4 kg
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Qualcomm QCNCM865

Manual
