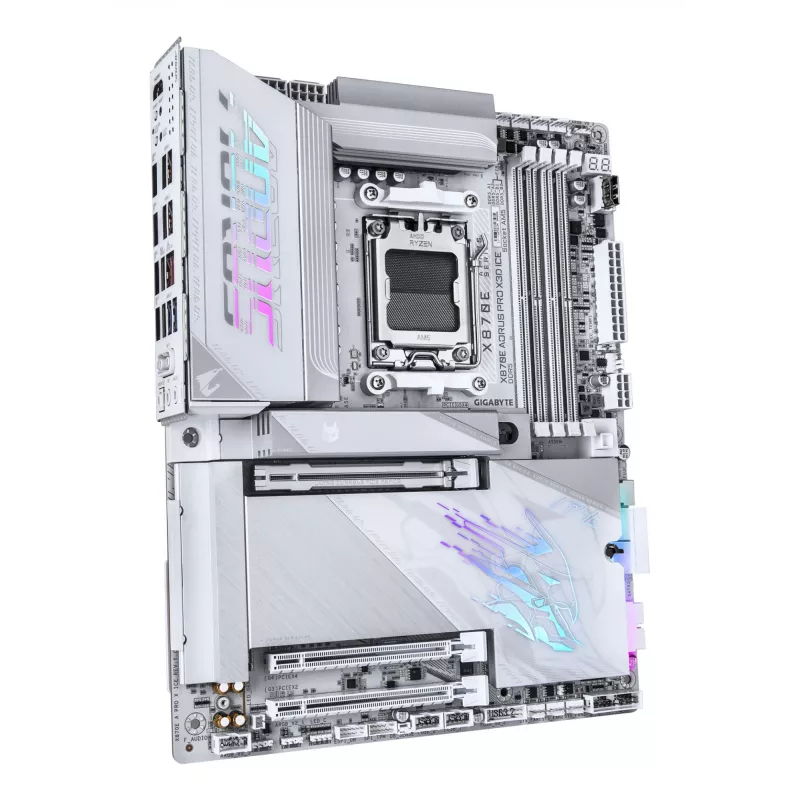

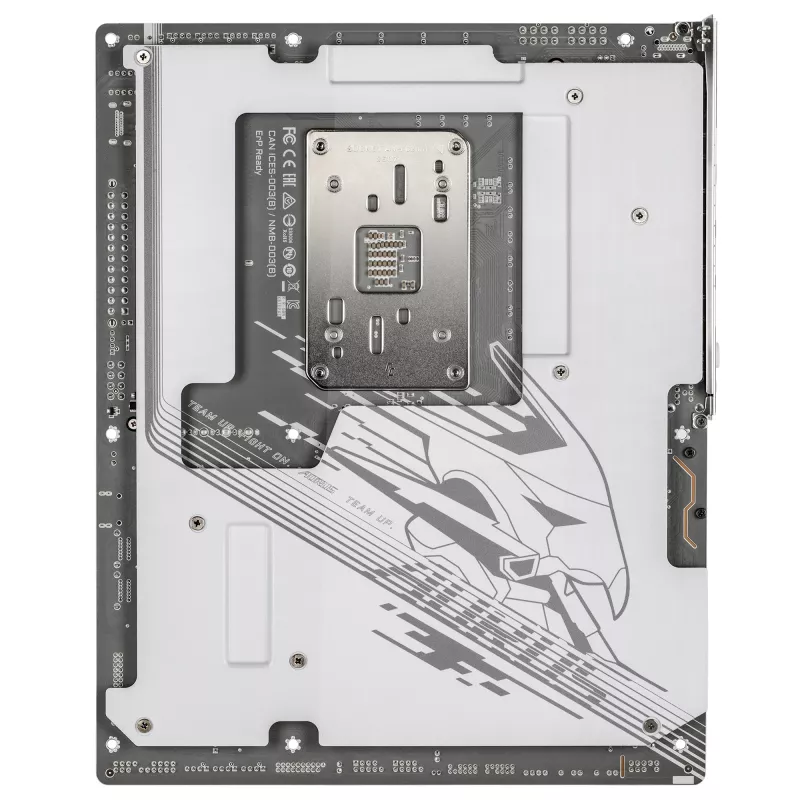

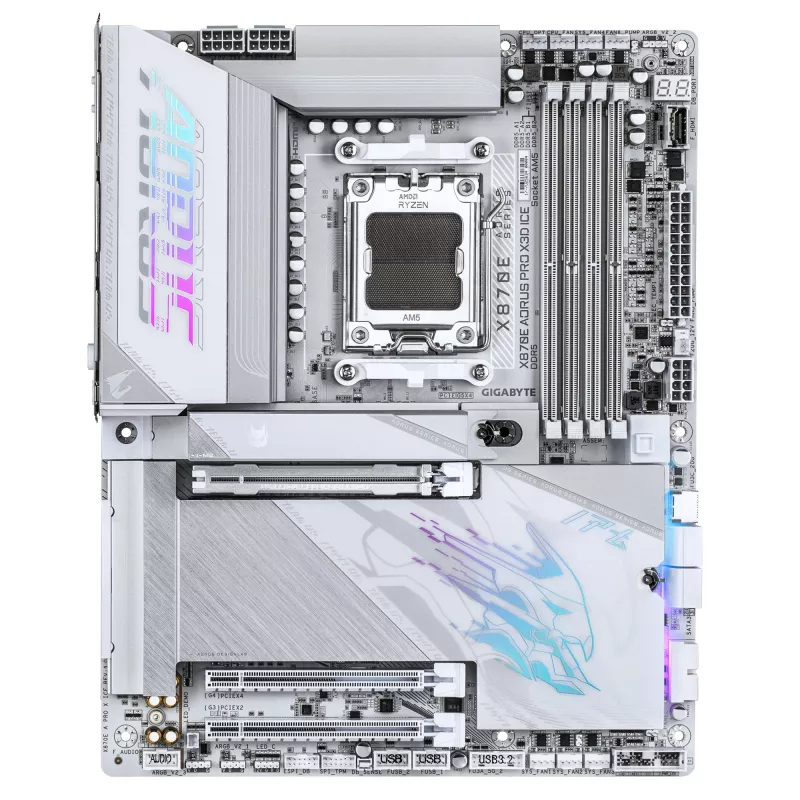

Motherboard GIGABYTE X870E AORUS PRO X3D ICE, AMD AM5, ATX

The GIGABYTE X870E AORUS PRO X3D ICE is an ATX motherboard for Socket AM5 systems, designed for use with AMD Ryzen 7000, 8000 and 9000 series processors. It features an 18+2+2 digital VRM, support for up to 256 GB DDR5 across four DIMM slots (DDR5 OC up to 9000 MT/s), multiple M.2 slots including PCIe 5.0 x4, dual PCIe 5.0 x16-capable expansion, Wi‑Fi 7 and 5GbE LAN connectivity. The board includes several convenience features for storage and wireless installation such as M.2 EZ‑Flex, M.2 EZ‑Latch Click & Plus and WIFI EZ‑Plug, and offers broad external connectivity including HDMI, Dual USB4 Type‑C with DP‑Alt and front QC‑USB 65W.

Advantages

This motherboard provides high-performance power delivery with a digital twin 18+2+2 phase VRM suitable for overclocking and sustained loads. Advanced storage support with four M.2 slots (one PCIe 5.0 x4) and efficient thermal solutions improve SSD performance and longevity. Integrated Wi‑Fi 7 and 5GbE networking deliver low-latency, high-bandwidth connectivity, while convenient installation features (M.2 EZ‑Latch, WIFI EZ‑Plug) simplify assembly and upgrades. Broad I/O with Dual USB4 Type‑C and ample PCIe lanes make the board versatile for gaming and professional workstation builds.

Suitable for

• High-performance gaming PCs with AMD Ryzen 7000/8000/9000 processors
• Content creation and video editing workstations requiring fast storage and networking
• Overclocking and enthusiast systems that need robust VRM and DDR5 support
• Professional desktop setups needing multiple high-speed NVMe drives and USB4 connectivity

Key specifications

• Form factor: ATX
• Chipset: AMD X870E
• CPU socket: Socket AM5 — supports AMD Ryzen 7000 / 8000 / 9000 Series
• Memory: 4 × DDR5 DIMM slots, up to 256 GB, DDR5 OC up to 9000 MT/s, AMD EXPO support
• Power delivery: Digital twin 18+2+2 phase VRM
• Storage: 4 × M.2 slots (includes PCIe 5.0 x4), SATA III, RAID support; up to 8 storage devices supported
• Expansion: Multiple PCIe slots including PCIe 5.0 lanes
• Networking: 5GbE LAN and 2.5GbE, Wi‑Fi 7 (802.11be) with directional high‑gain antenna, Bluetooth 5.4
• Audio: Realtek ALC1220‑VB 7.1 channels

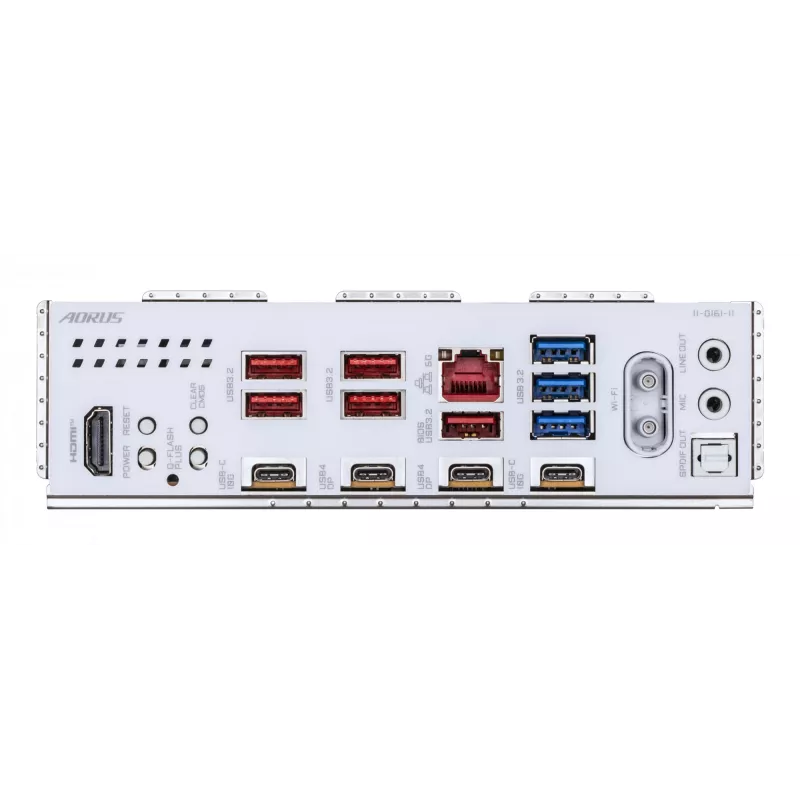

• I/O: HDMI, Dual USB4 Type‑C with DP‑Alt, Front QC‑USB 65W
• BIOS: UEFI AMI 512 Mbit, ACPI 5.0, Clear CMOS jumper and button

How to use

Install the motherboard into an ATX-compatible case and seat a compatible AMD Ryzen CPU into the Socket AM5. Populate up to four DDR5 DIMMs following the motherboard manual for dual-channel configuration and enable AMD EXPO profiles if using supported memory. Mount M.2 SSDs using the M.2 EZ‑Latch Click & Plus system and connect antennas via the WIFI EZ‑Plug. Connect power from a compatible PSU to the 24-pin ATX and CPU power headers, attach storage and GPU to appropriate PCIe slots, then power on and enter UEFI to configure boot order, memory profiles and any overclocking or X3D Turbo Mode settings. Update BIOS if required for full CPU and memory compatibility.

Recommendations

For stable high-frequency DDR5 operation and overclocking, use a quality power supply, adequate case airflow and the latest BIOS. Install NVMe SSDs on heatsinks provided and use the board’s thermal features to maintain optimal temperatures for sustained workloads.
