Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN

Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
36 mo.
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
Motherboard GIGABYTE X870E AORUS ELITE WIFI7 ATX, AMD X870E, Socket AM5, DDR5, 4x DIMM, Wi‑Fi 7, 2.5Gb LAN
R6,076

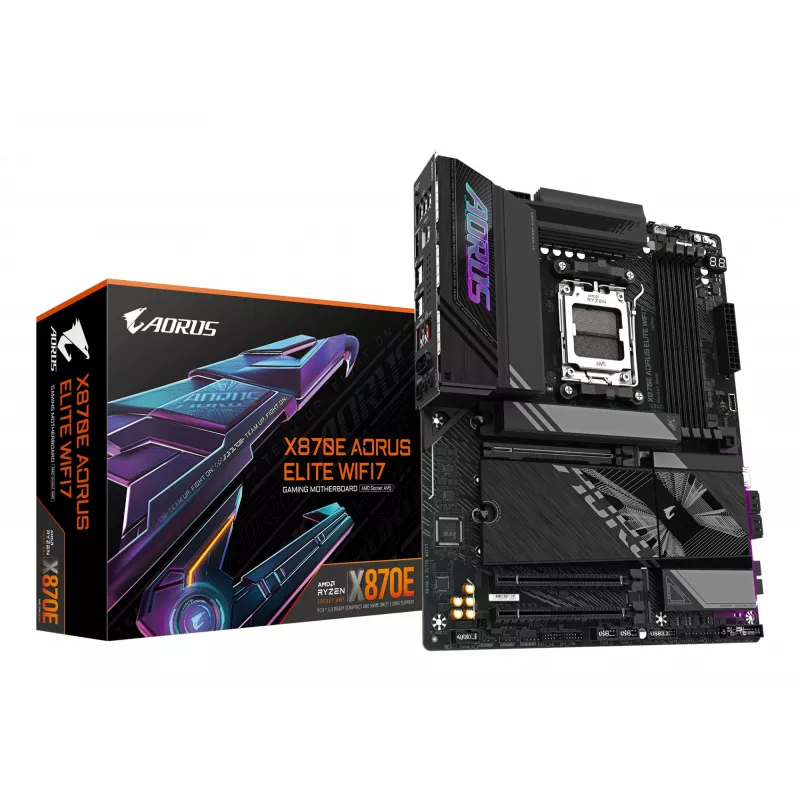

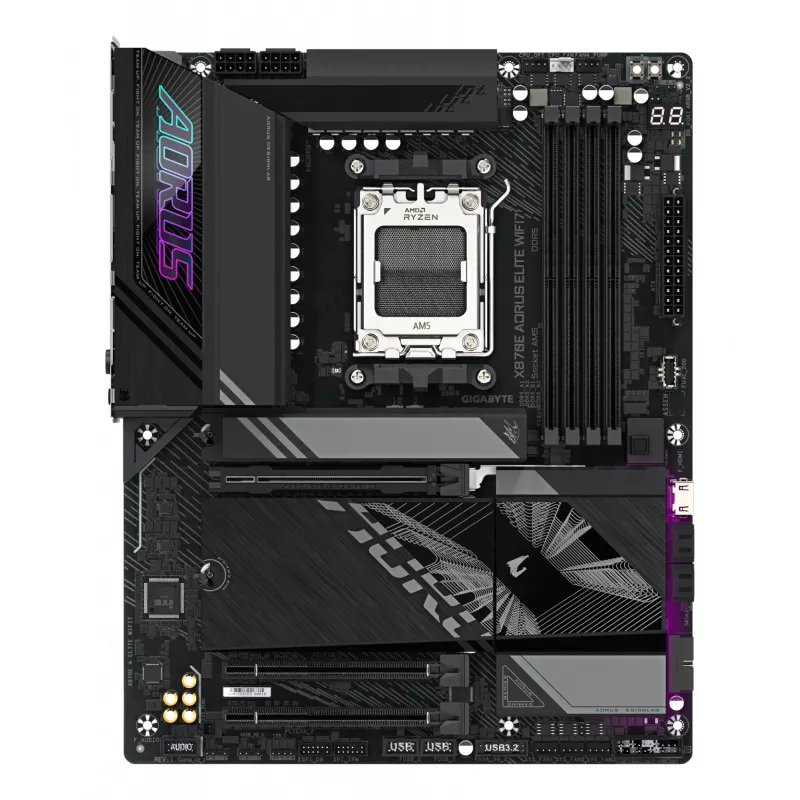

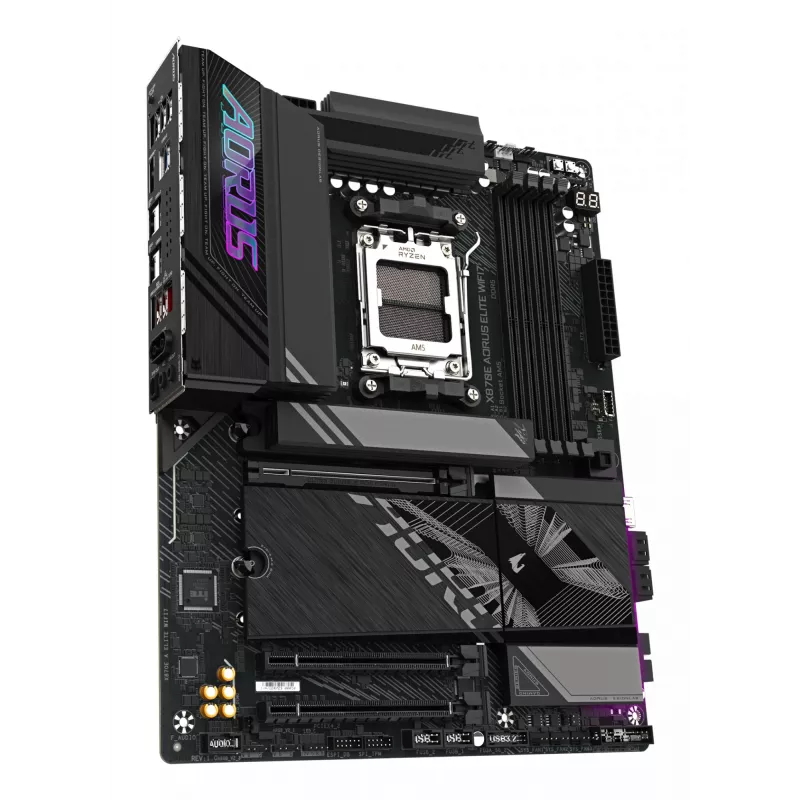

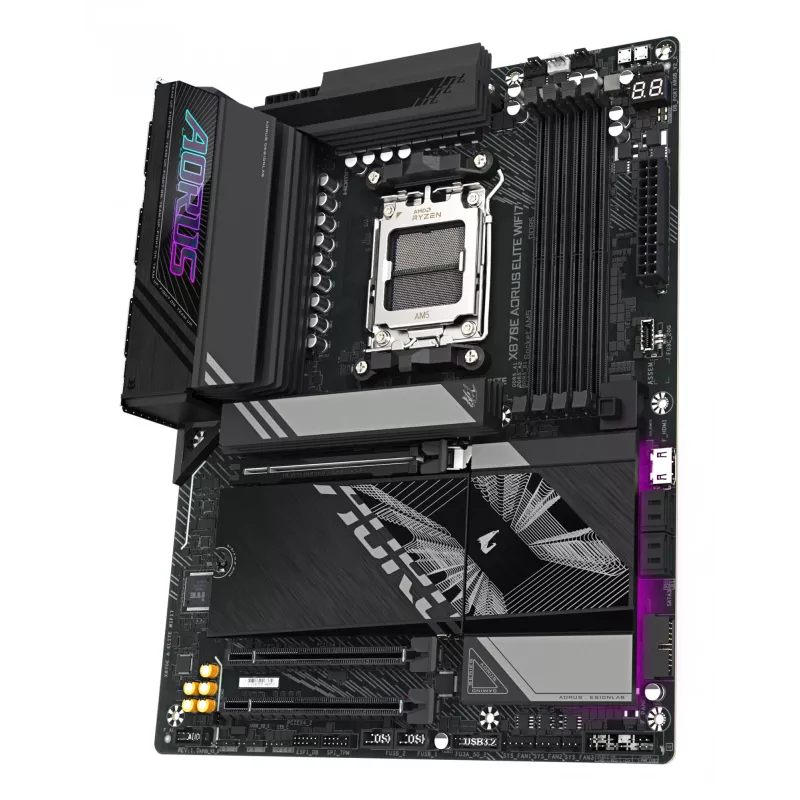

The GIGABYTE X870E AORUS ELITE WIFI7 is an ATX motherboard for Socket AM5 systems based on the AMD X870E chipset. It supports AMD Ryzen 9000 series processors and DDR5 memory up to 8000 MHz (OC). The board includes multiple PCIe slots, high-speed networking and storage interfaces, and a robust 16+2+... Read More
Stock 2 Code 119713 Brand GIGABYTE Model X870E A ELITE WIFI7 Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE X870E AORUS ELITE WIFI7 is an ATX motherboard for Socket AM5 systems based on the AMD X870E chipset. It supports AMD Ryzen 9000 series processors and DDR5 memory up to 8000 MHz (OC). The board includes multiple PCIe slots, high-speed networking and storage interfaces, and a robust 16+2+2 phase digital VRM to deliver stable power for high-performance PC builds.

Advantages

This motherboard provides support for the latest Socket AM5 Ryzen CPUs and high-frequency DDR5 memory, together with three PCIe 5.0 slots and comprehensive connectivity including Wi‑Fi 7, 2.5GbE LAN and USB4. The digital 16+2+2 VRM design enhances voltage regulation for demanding workloads, and the ATX form factor offers extensive expansion and cooling options for gaming, content creation, and professional systems.

Suitable for

  • High-performance gaming PCs
  • Content creation and video editing workstations
  • Professional systems requiring fast networking and storage

Key specifications

  • Form factor: ATX
  • Chipset: AMD X870E
  • Socket: AM5
  • CPU support: AMD Ryzen 9000 series
  • Memory: DDR5, 4 slots, up to 256 GB, up to 8000 MHz (OC)
  • VRM: 16+2+2 digital phase design
  • PCIe slots: three PCIe 5.0 slots, one PCIe 4.0 slot
  • Networking: Wi‑Fi 7, 2.5GbE LAN
  • Storage: M.2 and SATA III support
  • USB: includes USB4
  • Weight: 2.4 kg

How to use

Install the motherboard into an ATX-compatible case, fit a Socket AM5 Ryzen 9000 CPU with the recommended cooler, populate up to four DDR5 memory modules according to the manual, and connect power from a compatible PSU. Install NVMe M.2 SSDs or SATA drives as required, insert expansion cards into PCIe slots, and configure BIOS/UEFI settings for memory and storage profiles. Install operating system and drivers for networking, chipset, and other onboard devices.

Recommendations

For stable overclocking and sustained performance, use a high-quality power supply, adequate chassis cooling, and ensure the latest BIOS/firmware and drivers are installed. Follow the motherboard manual for correct memory slot population and PCIe device installation.
Key Highlights
  • AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Twin 16+2+2 Phases Digital VRM with DrMOS
  • Dual Channel DDR5:4DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
  • M.2 Gen5 with EZ-Latch Plus
  • Efficient Overall Thermal: Fully Covered MOSFET Heatsinks

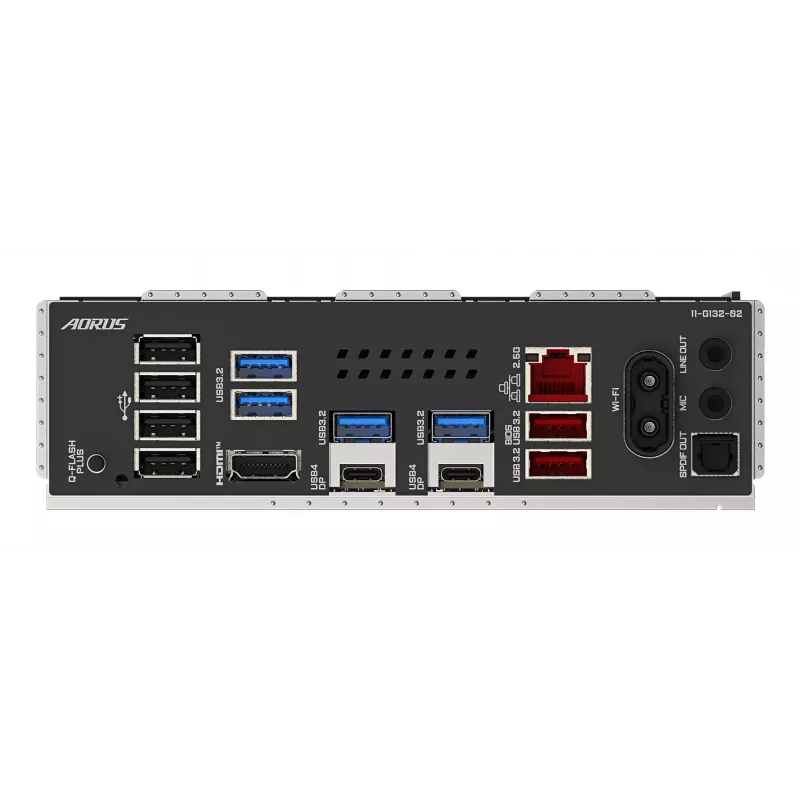

  • Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP

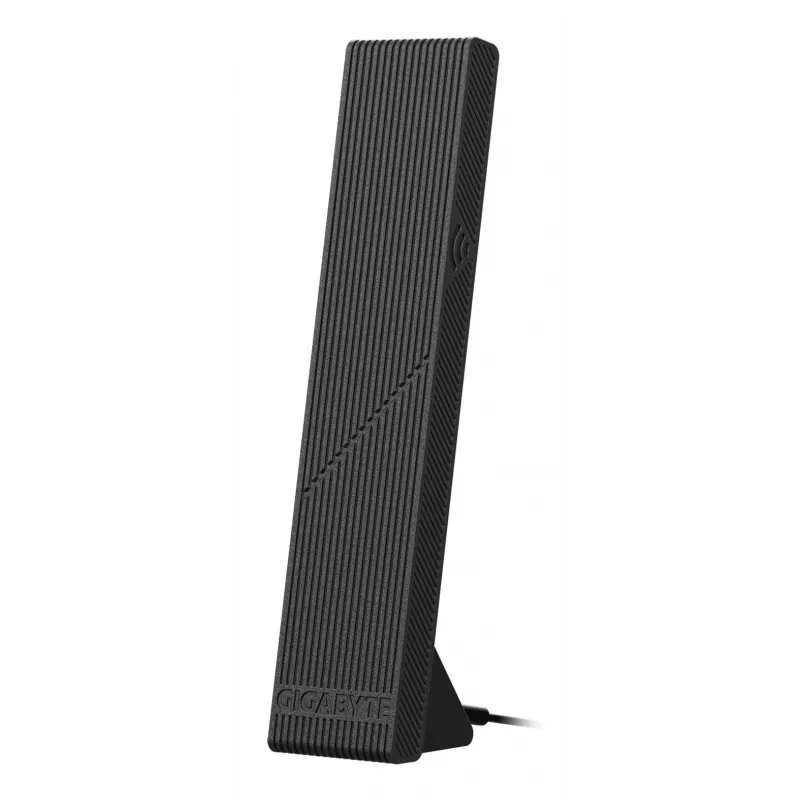

  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna 2*USB-C DP
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870E Realtek ALC1220 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum internal memory supported by processor
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD X870E
Motherboard chipset family
AMD
Motherboard form factor
ATX
mSATA ports quantity
0
Number of battery cells
1
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (M) slots
4
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
Number of storage drives supported
8
Number of water pump connectors
2
On-board graphics card
No
Package depth
294 mm
Package height
80 mm
Package weight
2.74 kg
Package width
345 mm
Parallel processing technology support
Not supported
PC health monitoring
CPU, Fan, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots
0
PCI Express x1 (Gen 4.x) slots
0
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 3.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x4 slots
2
PCI Express x8 (Gen 3.x) slots
0
PCI Express x8 (Gen 4.x) slots
0
PCI Express x8 (Gen 5.x) slots
0
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Black
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
0
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 connectors
1
USB 3.2 Gen 2x2 Type-C ports quantity
0
USB4 Gen 2x2 ports quantity
2
USB4 Gen 3x2 ports quantity
0
Warranty period
3 year(s)
Weight
2.4 kg
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
MediaTek MT7925

Manual

Open Manual

Leaflet

Open Leaflet
