GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4

GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
36 mo.
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
GIGABYTE X870E AERO X3D WOOD Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
R8,304

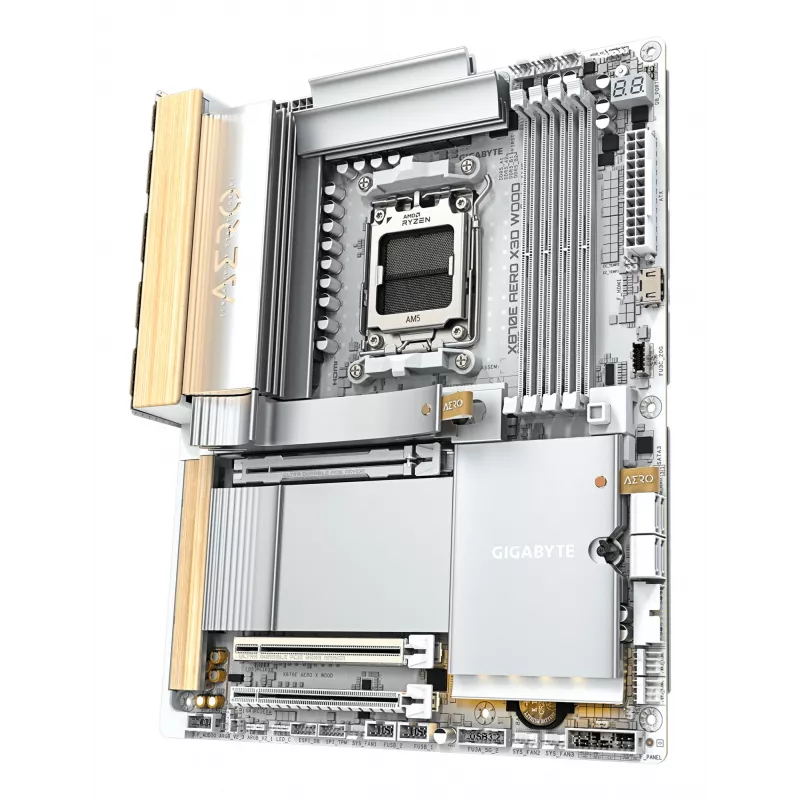

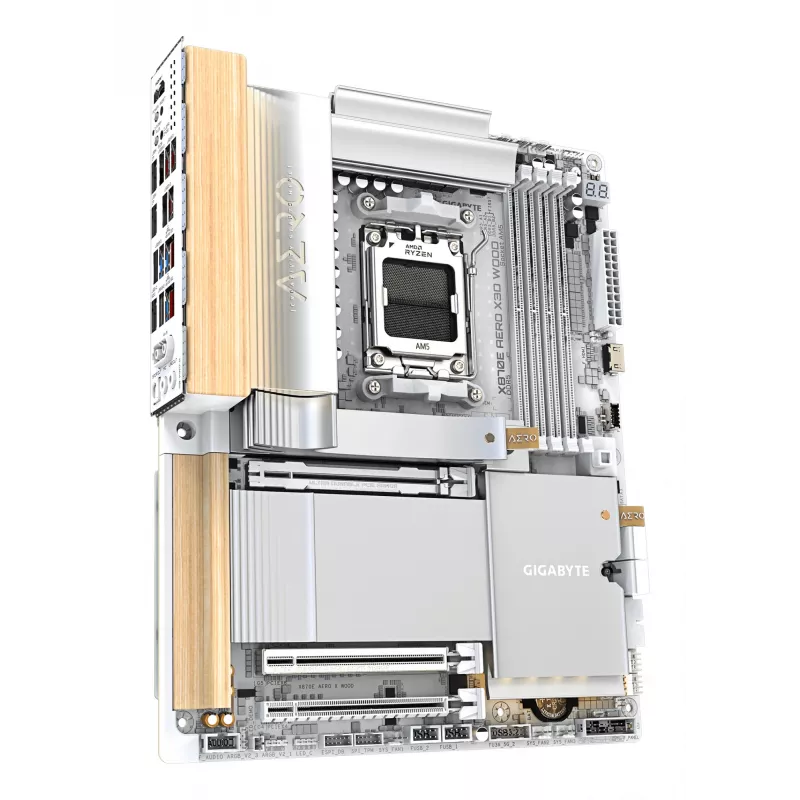

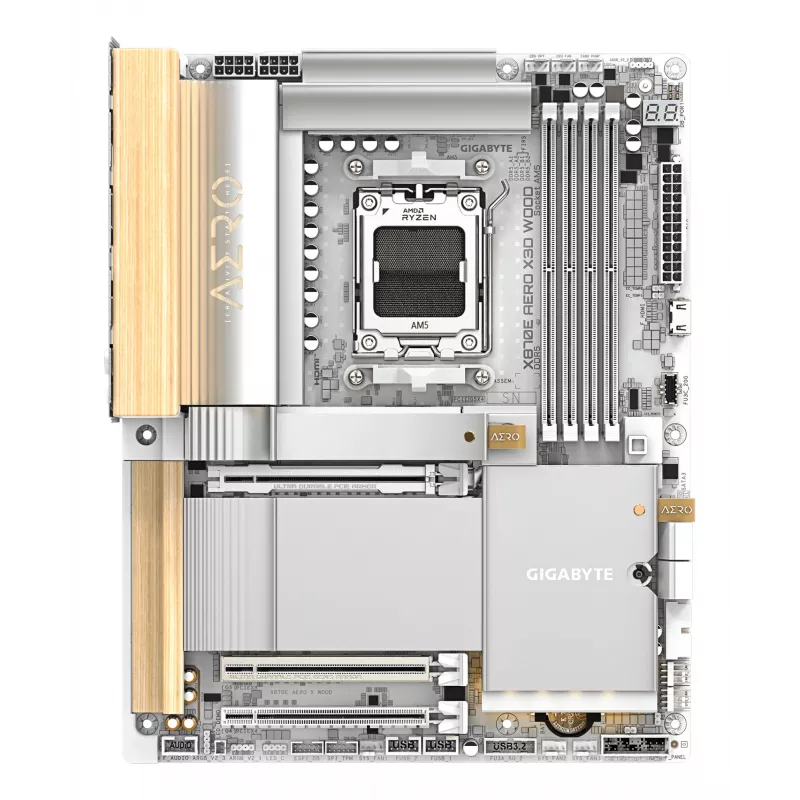

GIGABYTE X870E AERO X3D WOOD is an ATX motherboard for Socket AM5 designed for high-performance desktop systems. It supports AMD Ryzen 7000, 8000 and 9000 series processors, offers four DDR5 DIMM slots with up to 256 GB memory capacity and a 16+2+2 digital VRM power design. The board provides multip... Read More
Stock 3 Code 1723738 Brand GIGABYTE Model X870E AERO X WOOD Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

GIGABYTE X870E AERO X3D WOOD is an ATX motherboard for Socket AM5 designed for high-performance desktop systems. It supports AMD Ryzen 7000, 8000 and 9000 series processors, offers four DDR5 DIMM slots with up to 256 GB memory capacity and a 16+2+2 digital VRM power design. The board provides multiple high-speed storage and expansion options including PCIe 5.0 slots, M.2 connectors, SATA III with RAID support, integrated Wi‑Fi 7 and multi-gigabit Ethernet, and USB4 connectivity for modern peripherals and content-creation workflows.

Advantages

The motherboard combines a robust VRM design and enhanced thermal features to support sustained CPU performance. PCIe 5.0-capable lanes and multiple M.2 slots enable ultra-fast NVMe storage and flexible expansion. Integrated Wi‑Fi 7 and dual multi-gigabit Ethernet ports deliver high-speed networking options. Screwless M.2 EZ-Latch and reinforced PCB thermal plate improve installation convenience and board stability for demanding builds.

Suitable for

  • High-performance gaming rigs
  • Content creation and video editing workstations
  • Professional desktop systems requiring fast storage and networking
  • Overclocking and enthusiast builds with DDR5 memory

Key specifications

  • Form factor: ATX
  • Chipset: AMD X870E
  • CPU socket: Socket AM5 (supports AMD Ryzen 7000 / 8000 / 9000 series)
  • Memory: 4 × DDR5 DIMM slots, maximum 256 GB, dual-channel, OC support to high MT/s
  • VRM: Digital 16+2+2 phase power delivery
  • Expansion slots: 2 × PCIe 5.0 slots, 2 × PCIe 4.0 slots
  • Storage: 4 × M.2 slots (including PCIe 5.0 x4), SATA III with RAID 0/1/5/10 support; total supported drives up to 8
  • Networking: Wi‑Fi 7 (802.11be), Bluetooth 5.4, dual 5 GbE LAN (plus 2.5 GbE capability)
  • Audio: Realtek ALC1220-VB, 7.1-channel audio

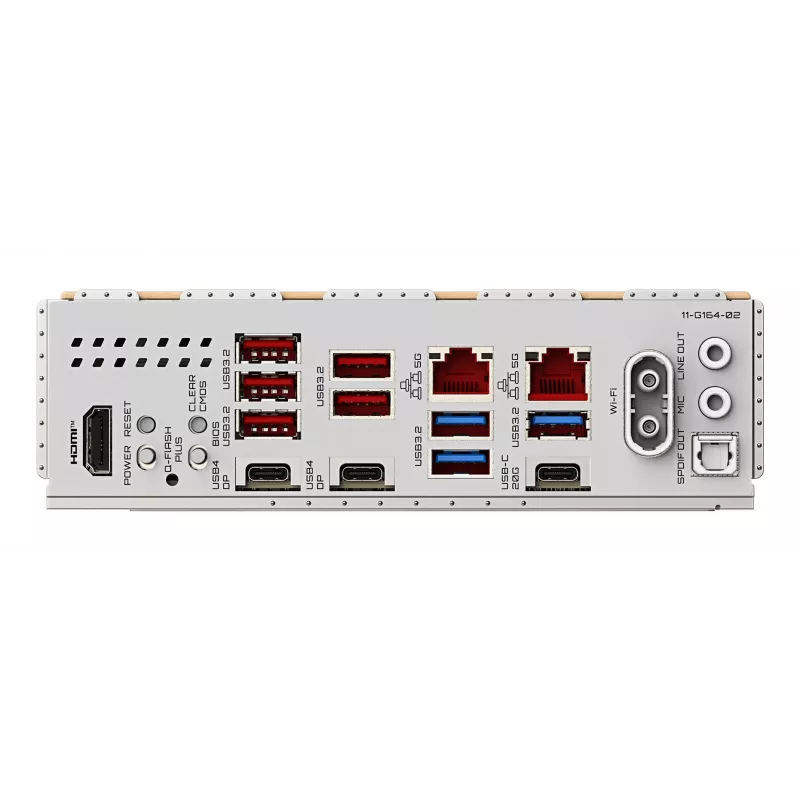

  • Rear I/O: HDMI, Dual USB4 Type-C with DisplayPort Alternate Mode
  • BIOS: UEFI AMI with Clear CMOS options

How to use

Install the motherboard into an ATX-compatible case, mount a compatible Socket AM5 processor and install DDR5 memory modules in the recommended DIMM slots for dual-channel operation. Fit M.2 NVMe drives into the EZ-Latch slots and connect SATA drives as needed. Attach cooling and power connectors according to the manual, then install the OS and chipset drivers supplied by the motherboard manufacturer to enable full feature support such as RAID, networking and BIOS updates.

Recommendations

For stable performance with high-core-count Ryzen processors and overclocking, use an adequate CPU cooler and quality power supply, populate DDR5 memory in matched pairs for dual-channel operation, and ensure M.2 drives receive proper cooling from the thermal plate. Keep BIOS and drivers up to date for optimal compatibility and network performance.
Key Highlights
  • Raw textures reveal timeless elegance
  • X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI
  • Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks

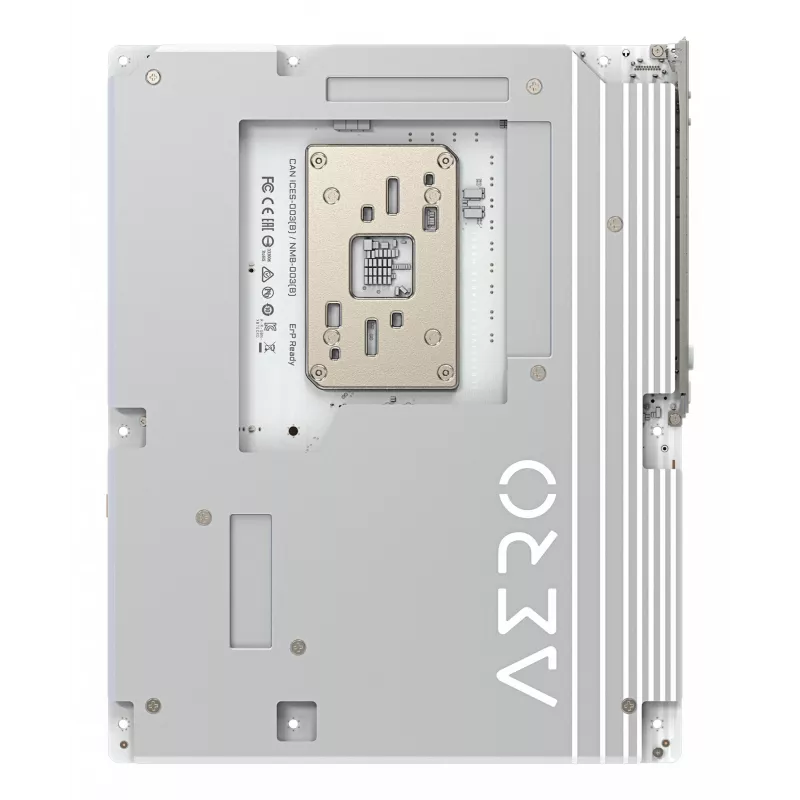

  • PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability
  • Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
  • Fast Networking: Dual 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870E Realtek ALC1220-VB 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 8
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220-VB
Audio output channels
7.1 channels
Batteries included
Yes
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton® Internet Security (OEM version)
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Cooling type
Passive
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
Digital audio optical out
1
DirectX version
12.0
DisplayPort version
1.4
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDCP version
2.3
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8126
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD X870E
Motherboard chipset family
AMD
Motherboard form factor
ATX
Number of battery cells
1
Number of chassis fan connectors
6
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (M) slots
4
Number of memory slots
4
Number of noise detection headers
1
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
8
Number of temperature sensor headers
2
Number of water pump connectors
2
On-board graphics card
No
Package depth
306 mm
Package height
89 mm
Package weight
3.67 kg
Package width
341 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
9000 MHz
Supported memory clock speeds
9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 2x2 connectors
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
2
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
3.17 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
MediaTek MT7927
