Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX

Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
36 mo.
Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
Motherboard GIGABYTE X870 AORUS ELITE X3D ICE, AMD X870, Socket AM5, ATX
R5,620

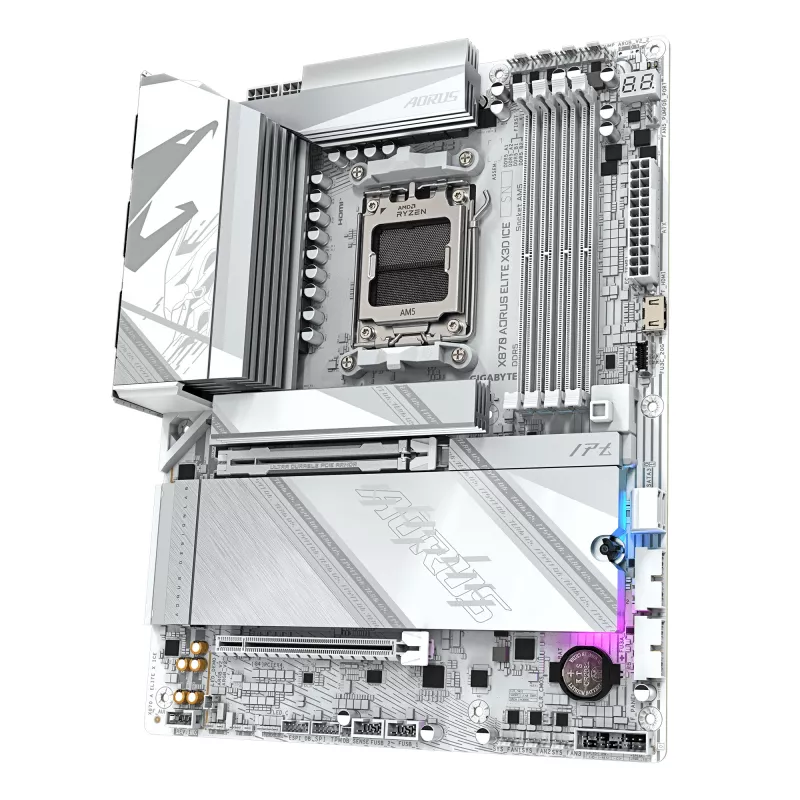

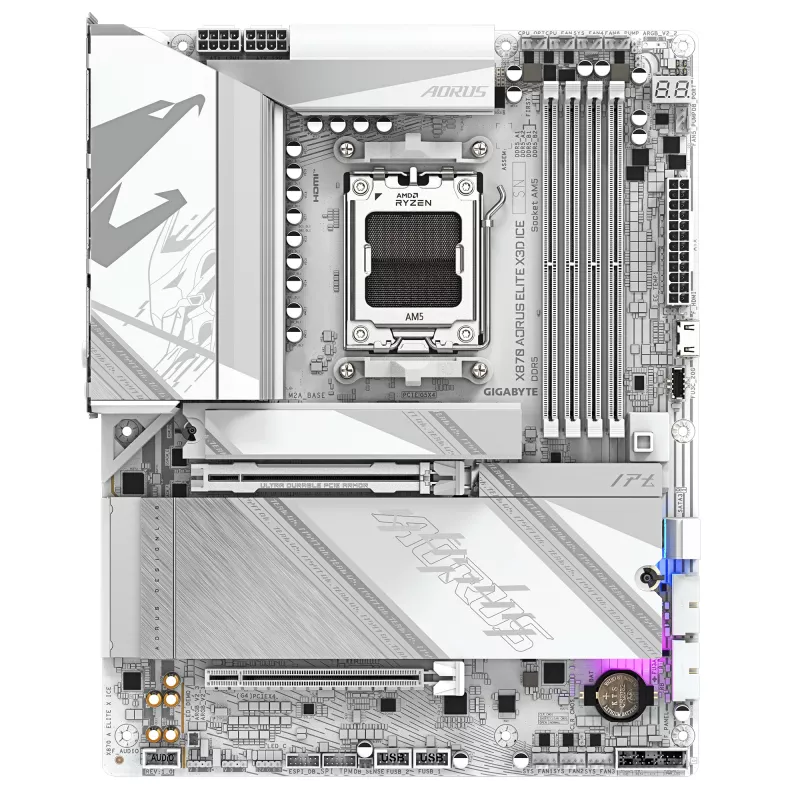

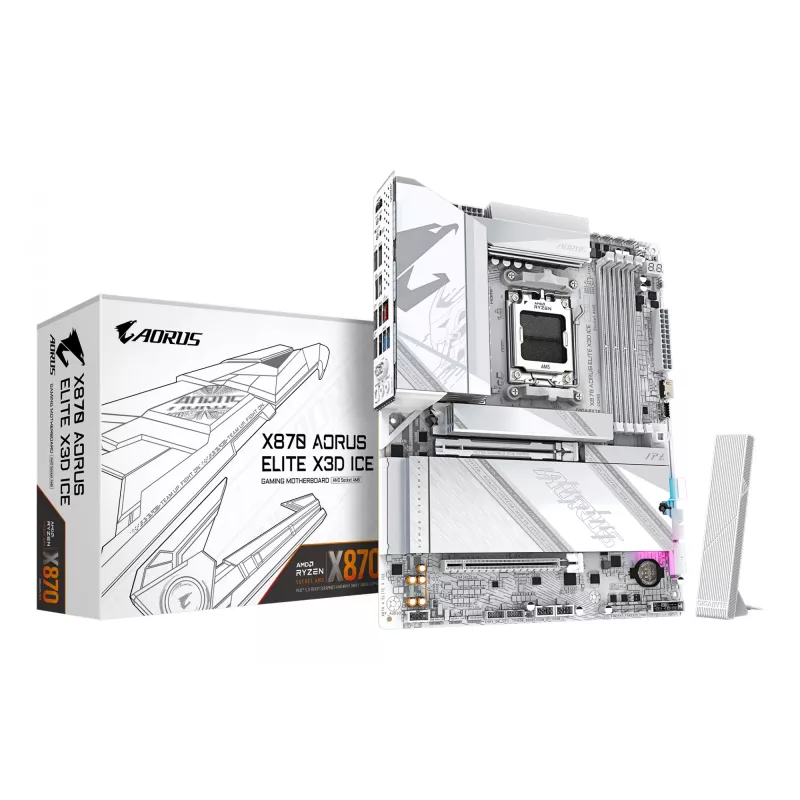

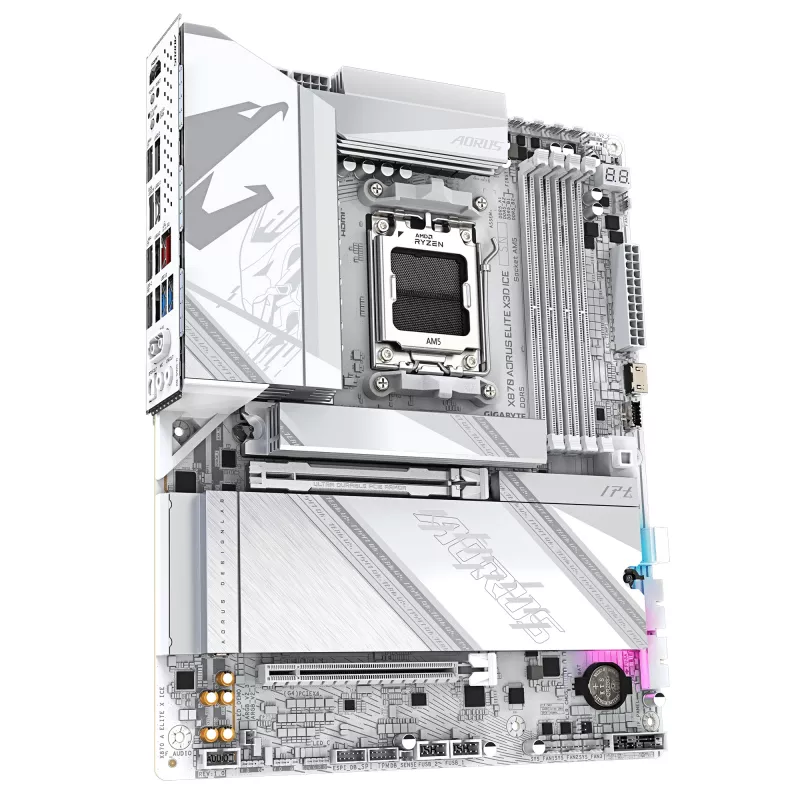

The GIGABYTE X870 AORUS ELITE X3D ICE is an ATX motherboard for Socket AM5 systems, engineered for high-performance desktop builds. It supports AMD Ryzen 7000/8000/9000 series processors and up to 256 GB of DDR5 memory across four DIMM slots. The board includes a digital twin 16+2+2 phase VRM, multi... Read More
Stock 1 Code 91014 Brand GIGABYTE Model X870 A ELITE X ICE Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE X870 AORUS ELITE X3D ICE is an ATX motherboard for Socket AM5 systems, engineered for high-performance desktop builds. It supports AMD Ryzen 7000/8000/9000 series processors and up to 256 GB of DDR5 memory across four DIMM slots. The board includes a digital twin 16+2+2 phase VRM, multiple M.2 and PCIe slots (including PCIe 5.0 x4 support), dual USB4 Type-C ports with DisplayPort Alternate Mode, HDMI output, Wi‑Fi 7 and 2.5GbE networking to meet demanding workloads and expandability requirements.

Advantages

The motherboard combines advanced power delivery, extensive high-speed storage options and modern connectivity in a single ATX design. Thermal features such as VRM Thermal Armor and M.2 Thermal Guard L improve cooling for sustained performance. Screwless EZ-Latch and EZ-Latch Click mechanisms simplify installation of PCIe and M.2 devices, while WiFi EZ-Plug eases antenna setup. These elements together provide a stable platform for gaming, content creation and professional applications.

Suitable for

  • High-end gaming PCs using AMD Ryzen 7000/8000/9000 CPUs
  • Content creation and video editing workstations
  • Expandable desktop systems requiring multiple M.2 drives and PCIe lanes
  • Users needing fast networking with Wi‑Fi 7 or 2.5GbE

Key specifications

  • Form factor: ATX
  • Chipset: AMD X870
  • CPU support: AMD Socket AM5 — Ryzen 7000 / 8000 / 9000 Series
  • VRM: Digital twin 16+2+2 phase solution
  • Memory: 4× DIMM, DDR5-SDRAM, up to 256 GB, AMD EXPO support
  • Storage: 4× M.2 (including 3× PCIe 5.0 x4), SATA III, RAID support, up to 6 storage drives
  • Expansion: Multiple PCIe slots with EZ-Latch Plus (screwless design)
  • Networking: Wi‑Fi 7 (802.11be) with directional ultra-high gain antenna, Bluetooth 5.4, 2.5GbE LAN
  • Rear I/O: Dual USB4 Type-C with DP-Alt, HDMI
  • Audio: Realtek ALC1220-VB 7.1 channels
  • BIOS: UEFI AMI 512 Mbit, ACPI 5.0, Clear CMOS jumper and button

How to use

Install the motherboard into a compatible ATX case and mount a Socket AM5 CPU following the processor manufacturer’s installation instructions. Populate up to four DDR5 DIMMs, install M.2 drives into the designated slots and connect power, front-panel headers and storage cables as required. Use the EZ-Latch and EZ-Latch Click features for screwless installation of PCIe and M.2 devices. Configure BIOS/UEFI settings after first power-on to verify memory profiles (AMD EXPO), storage mode and boot order.

Recommendations

For optimal thermal performance, ensure good case airflow and attach the included directional Wi‑Fi 7 antenna using the WiFi EZ‑Plug. Update the UEFI to the latest version for improved CPU and memory compatibility before installing critical software or large workloads.
Key Highlights
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

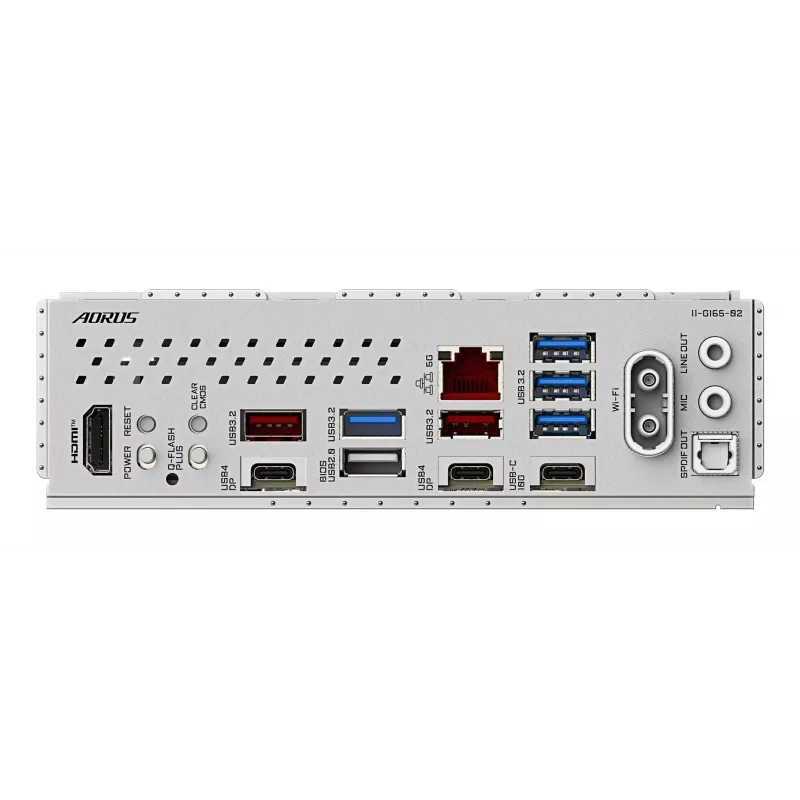

  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870 Realtek ALC1220-VB 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 512 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220-VB
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
512 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton® Internet Security (OEM version)
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Cooling type
Passive
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
Digital audio optical out
1
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
0
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDCP version
2.3
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8126
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2304 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
Motherboard form factor
ATX
Number of battery cells
1
Number of chassis fan connectors
6
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
2
Number of M.2 (M) slots
4
Number of memory slots
4
Number of noise detection headers
1
Number of RGB LED pin headers
4
Number of SATA III connectors
2
Number of storage drives supported
6
Number of temperature sensor headers
2
Number of water pump connectors
3
Package depth
270 mm
Package height
80 mm
Package weight
2.71 kg
Package width
335 mm
Parallel processing technology support
Not supported
PC health monitoring
CPU, Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
9000 MHz
Supported memory clock speeds
9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 2x2 ports quantity
2
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
2.42 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Qualcomm QCNCM865

Manual

Open Manual

Leaflet

Open Leaflet
