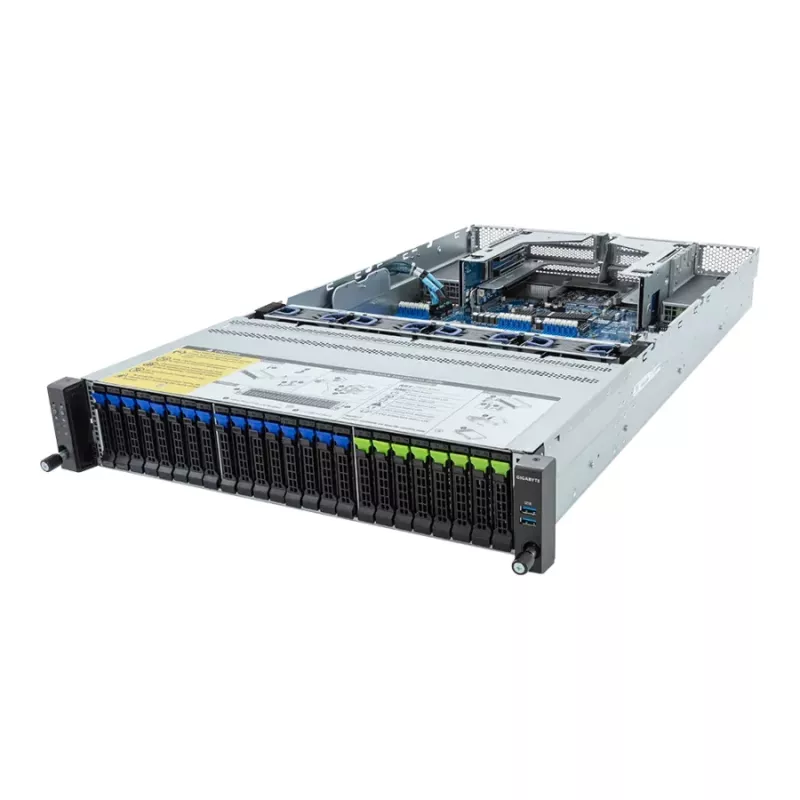

GIGABYTE R283-Z92-AAE2 (Rev. 1.x) 2U Rackmount Server Barebone, Dual AMD SP5, 24x DDR5, 24x 2.5 inch Gen5 NVMe/SATA/SAS, 2x 2200W PSU

The GIGABYTE R283-Z92-AAE2 (Rev. 1.x) is a high-performance 2U rackmount server barebone designed for demanding enterprise workloads. Powered by dual AMD SP5 sockets supporting AMD EPYC 9004 Series processors, it delivers exceptional compute density and scalability. With 24 DDR5 DIMM slots (up to 6TB) and 24 front hot-swap 2.5" Gen5 NVMe/SATA/SAS bays, this platform is ideal for data-intensive applications such as virtualization, HPC, and large-scale databases.

Advantages

Optimized for maximum performance and reliability, the R283-Z92-AAE2 features 8 PCIe Gen5 x16 slots, 1 OCP 3.0 Gen5 x16 slot, and dual 2200W 80 PLUS Platinum redundant power supplies. The integrated Intel X710-AT2 dual 10GbE LAN and dedicated 1GbE management LAN ensure fast and secure network connectivity. ASPEED AST2600 BMC provides comprehensive remote management capabilities.

Suitable for

• Enterprise data centers and cloud computing
• Virtualization and hyper-converged infrastructure
• High-performance computing (HPC) clusters
• Big data analytics and storage servers

Key specifications

• Form Factor: 2U Rackmount
• CPU Sockets: 2 x AMD SP5 (supports AMD EPYC 9004 Series)
• Memory: 24 x DDR5 DIMM slots, up to 4800MHz, max 6TB
• Storage: 24 x 2.5" Gen5 NVMe/SATA/SAS hot-swap front bays; 2 x 2.5" SATA/NVMe hot-swap rear bays (optional)
• PCIe Expansion: 8 x PCIe Gen5 x16, 1 x OCP 3.0 Gen5 x16
• Network: Intel X710-AT2 dual 10GbE LAN + 1GbE management LAN
• Power: 2 x 2200W 80 PLUS Platinum redundant PSU
• Cooling: 6 x hot-swap system fans
• Management: ASPEED AST2600 BMC

Recommendations

This barebone server is ideal for IT professionals building a custom high-performance server. Pair with AMD EPYC 9004 CPUs, DDR5 ECC memory, and NVMe SSDs for optimal performance. Ensure adequate rack space and power infrastructure for the dual 2200W PSUs.
