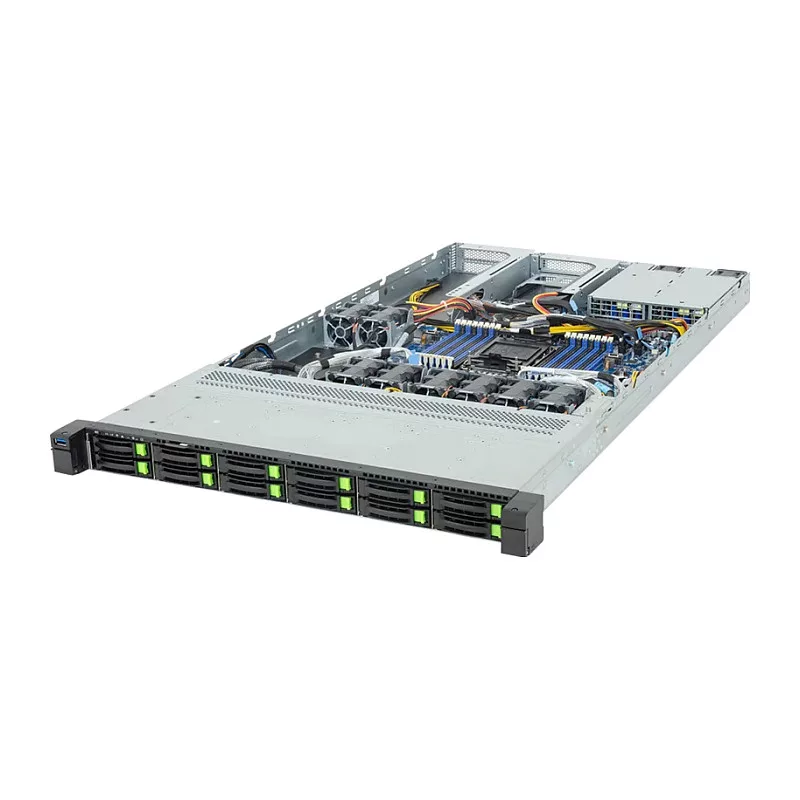

GIGABYTE R164-SG5-AAV1 1U Rack Server Barebone, Single LGA-4710, 4x 3.5 inch Hot-Swap Bays, 2x 10GbE, 800W Redundant PSU

The GIGABYTE R164-SG5-AAV1 is a high-performance 1U rack server barebone designed for data centers and enterprise environments. It supports 4th Gen Intel Xeon Scalable processors on a single LGA 4710 socket, offering exceptional compute density and scalability. With 16 DDR5 DIMM slots, up to 4TB memory capacity, and flexible storage options including 4 hot-swap 3.5" hybrid bays and dual M.2 slots, this server delivers outstanding performance for virtualization, cloud computing, and high-performance computing workloads.

Advantages

Optimized for maximum performance and reliability, the R164-SG5-AAV1 features dual 800W 80 PLUS Platinum redundant power supplies and six hot-swap system fans for efficient cooling. The integrated ASPEED AST2600 management controller provides comprehensive IPMI 2.0 remote management, reducing downtime and maintenance costs. Its compact 1U form factor saves valuable rack space while delivering enterprise-grade capabilities.

Suitable for

• Data centers requiring high-density compute nodes
• Virtualization and hyper-converged infrastructure
• Cloud computing and edge deployments
• High-performance computing (HPC) clusters
• Enterprise storage and database servers

Key specifications

• Form Factor: 1U Rackmount
• CPU Socket: Single LGA 4710 (Socket E)
• Compatible Processors: 4th Gen Intel Xeon Scalable
• Chipset: Intel C741
• Memory: 16 x DDR5 DIMM slots, up to 4TB (RDIMM)
• Storage: 4 x 3.5" Hot-swap SATA/SAS/NVMe Hybrid Bays, 2 x M.2 PCIe Gen4 x4
• PCIe Expansion: 1 x PCIe Gen5 x16 FHHL, 1 x OCP 3.0 Gen5 x16
• Network: 2 x 10GbE (Intel X710-AT2), 1 x 1GbE Management LAN
• Management: ASPEED AST2600 BMC (IPMI 2.0)
• Power Supply: 2 x 800W 80 PLUS Platinum Redundant PSU
• Cooling: 6 x Hot-swap System Fans

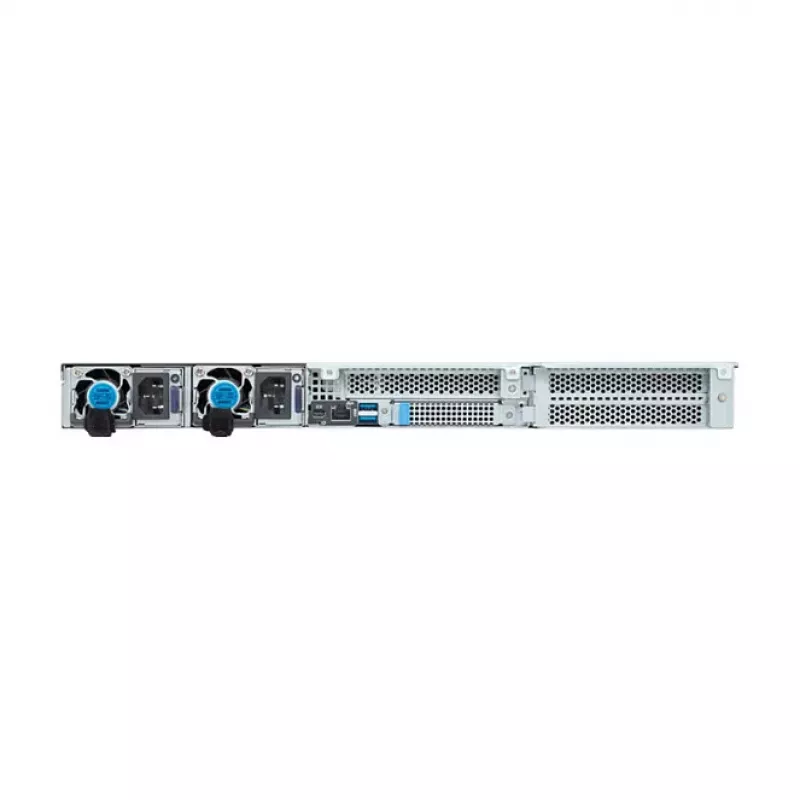

• Rear I/O: 2 x USB 3.0, 1 x VGA, 3 x RJ45

Recommendations

This barebone server is ideal for IT professionals building custom server solutions. It requires compatible processors, memory, and storage to be installed separately. For optimal performance, pair with 4th Gen Intel Xeon Scalable CPUs and DDR5 RDIMMs.
