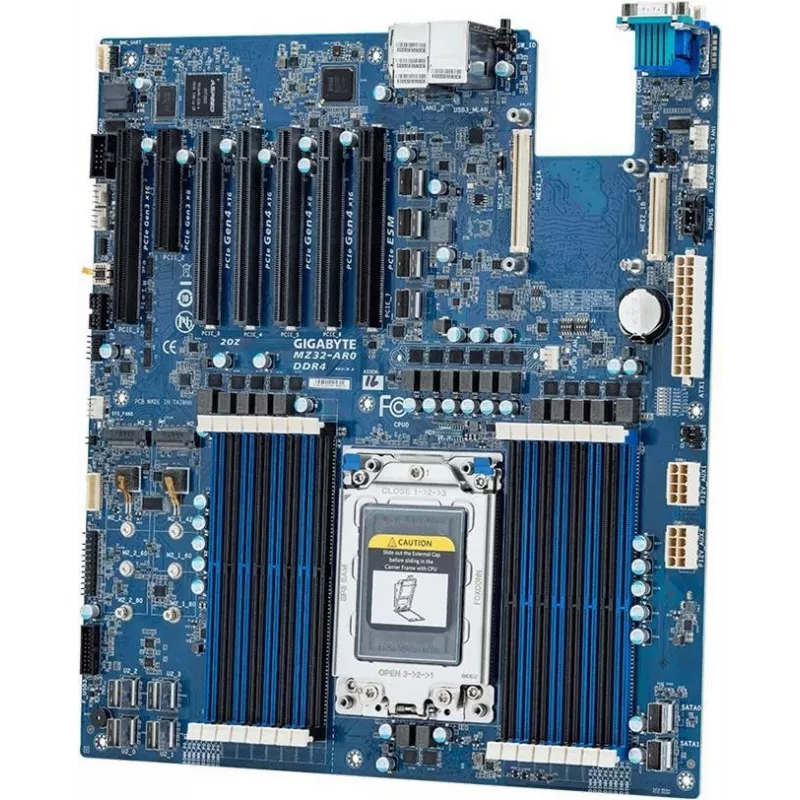

Gigabyte MZ32-AR0 Server Motherboard - Single Socket SP3 (LGA 4094) - AMD EPYC 7002/7003 - E-ATX - 8x DDR4 - 2x 10GbE

Gigabyte MZ32-AR0 Server Motherboard - Single Socket SP3 (LGA 4094) - AMD EPYC 7002/7003 - E-ATX - 8x DDR4 - 2x 10GbE
Gigabyte MZ32-AR0 Server Motherboard - Single Socket SP3 (LGA 4094) - AMD EPYC 7002/7003 - E-ATX - 8x DDR4 - 2x 10GbE
R12,646
The Gigabyte MZ32-AR0 is a high-performance server motherboard designed for demanding data center and enterprise workloads. Built around the AMD EPYC 7002/7003 series processors (Rome/Milan), it delivers exceptional compute density and scalability in a standard E-ATX form factor.AdvantagesWith a sin... Read More
Stock 10 Code 2732468 Brand GIGABYTE Model 9MZ32AR0NR-00-10A Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The Gigabyte MZ32-AR0 is a high-performance server motherboard designed for demanding data center and enterprise workloads. Built around the AMD EPYC 7002/7003 series processors (Rome/Milan), it delivers exceptional compute density and scalability in a standard E-ATX form factor.

Advantages

With a single SP3 socket supporting up to 64 cores, 8 DDR4 DIMM slots for up to 2TB of memory, and extensive PCIe 4.0 expansion, the MZ32-AR0 offers a balanced platform for virtualization, cloud computing, and storage applications. Dual 10GbE ports provide high-speed networking, while the integrated BMC with IPMI 2.0 enables remote management.

Suitable for

  • Enterprise servers and data centers
  • Virtualization and hyper-converged infrastructure
  • High-performance computing (HPC) clusters
  • Storage servers with NVMe and SAS support

Key specifications

  • CPU Socket: Single SP3 (LGA 4094) for AMD EPYC 7002/7003 series
  • Chipset: System on Chip (SoC)
  • Memory: 8x DDR4 DIMM slots, ECC RDIMM/LRDIMM, up to 2TB, 3200MHz
  • Expansion: 2x PCIe 4.0 x16, 1x PCIe 4.0 x8, 1x OCP 3.0 (PCIe 4.0 x8)
  • Storage: 16x SATA 6Gb/s (Broadcom SAS3516), 2x M.2 PCIe Gen4 x4, up to 8x NVMe via SlimSAS
  • Networking: 2x 10GbE (Intel X710-AT2), 1x 1GbE management (Realtek RTL8211E)
  • Graphics: Aspeed AST2500 BMC
  • USB: 2x USB 3.0 Type-A (rear), 1x USB 3.0 header (internal)
  • Form Factor: E-ATX (305 x 330 mm)
  • Power: 24-pin ATX, 2x 8-pin EPS
  • Management: IPMI 2.0 with KVM over IP, Redfish
  • Operating Temperature: 0°C to 40°C

Recommendations

This motherboard is ideal for building a powerful single-socket server. Pair with AMD EPYC 7002/7003 processors, DDR4 ECC memory, and NVMe SSDs for optimal performance. Ensure your chassis supports E-ATX and has sufficient cooling for the CPU and VRM.

Key Highlights
  • Single AMD EPYC™ 7002 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 2 x SlimSAS (with 8 x SATA 6Gb/s) ports
  • 4 x SlimSAS (with 4 x NVMe) ports
  • Ultra-Fast M.2 with PCIe Gen3 x4 interface
  • Up to 5 x PCIe Gen4 x16 slots and 2 x PCIe Gen3 slots
  • 1 x OCP 2.0 Gen3 x16 mezzanine slot
  • Aspeed® AST2500 remote management controller
  • AMD Socket SP3 AMD EPYC
  • Server Extended ATX System on Chip
  • DDR4-SDRAM Maximum internal memory: 128 GB
  • Serial Attached SCSI (SAS)
  • Clear CMOS button
  • Fast Ethernet, Gigabit Ethernet
Specifications
Brand
Gigabyte
Category
Motherboards
Compatible processor series
AMD EPYC 7002/7003 Series (Rome/Milan)
Depth
330 mm
EAN
4719331806668
ECC сompatibility
Yes
Ethernet interface type
10 Gigabit Ethernet
Ethernet LAN (RJ-45) ports
3
Maximum internal memory
2 TB
Memory channels
8
Memory slots type
DIMM
Model
MZ32-AR0
MPN
9MZ32AR0NR-00-10A
Number of memory slots
8
Processor manufacturer
AMD
Processor socket
AMD SP3 & LGA 4094
Product colour
Black
Supported memory clock speeds
3200 MHz
Supported memory types
DDR4
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Weight
1.86 kg
Width
305 mm

Leaflet

Open Leaflet
Price history over the last 6 months
Gigabyte MZ32-AR0 Server Motherboard - Single Socket SP3 (LGA 4094) - AMD EPYC 7002/7003 - E-ATX - 8x DDR4 - 2x 10GbE
Current
R12,646
Lowest
R12,409
Highest
R14,716
Change 24H
+R213   +2%
Week
+R81   +1%
Month
-R1,430   -10%

Independent reviews by tech media

eteknix.com

Verdict: What a motherboard, just think of the options you have. GIGABYTE took in the EPYC platform and created an impressive motherboard for it. The CPU option delivers a great base while the expansion options are what gives you all the options you could dream of...

Pros
  • Support for all EPYC 7000 series processors
  • 8-channel RAM setup with 16 slots
  • 16 SATA ports via 4x SlimSAS and M.2 PCIe 3.0 x4
  • Dual 10GbE Ethernet
  • Aspeed AST2500 remote management controller
  • Nearly endless build-options
Cons
  • none, “GIGABYTE’s MZ31-AR0 offers nearly endless build options on a fair budget. Who wouldn’t want a system built around this motherboard? Or maybe two? Or three? I know I do!”
  • GIGABYTE MZ31-AR0 (SP3 EPYC) Server Motherboard Review
  • Thank You
  • GIGABYTE
Read the full review at eteknix.com →
