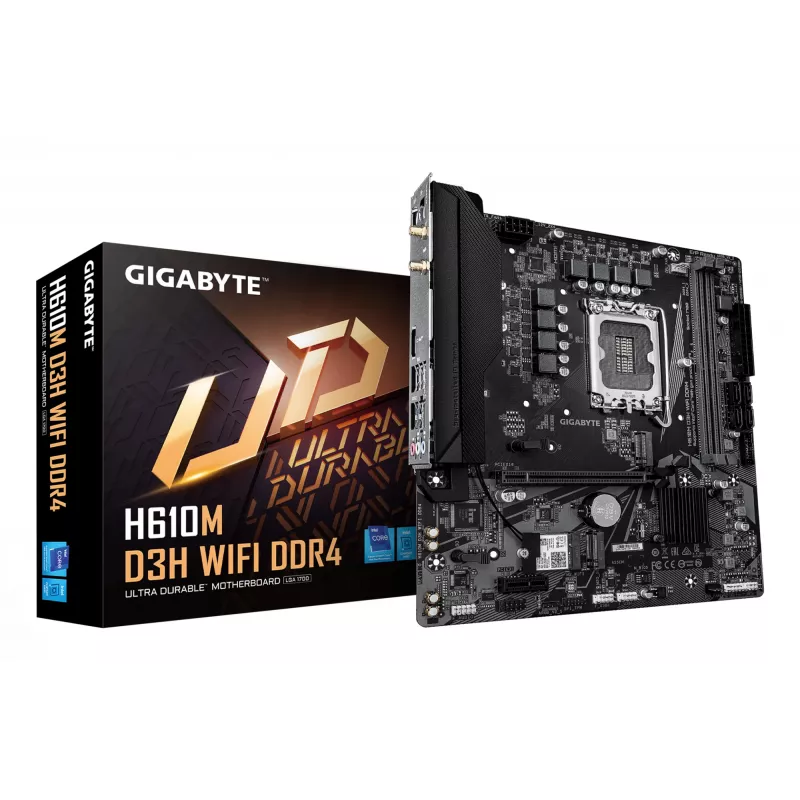

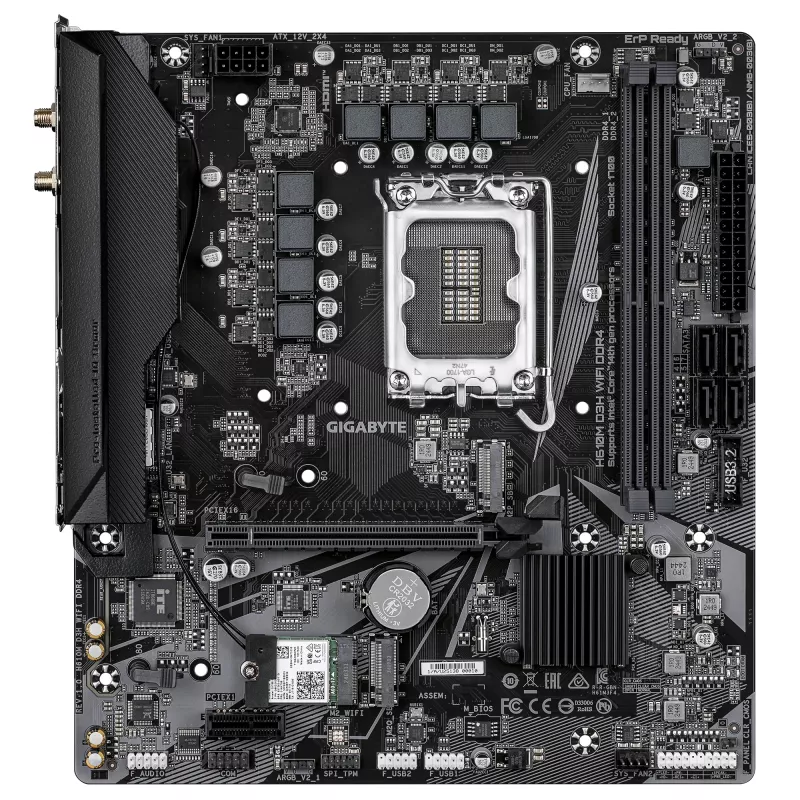

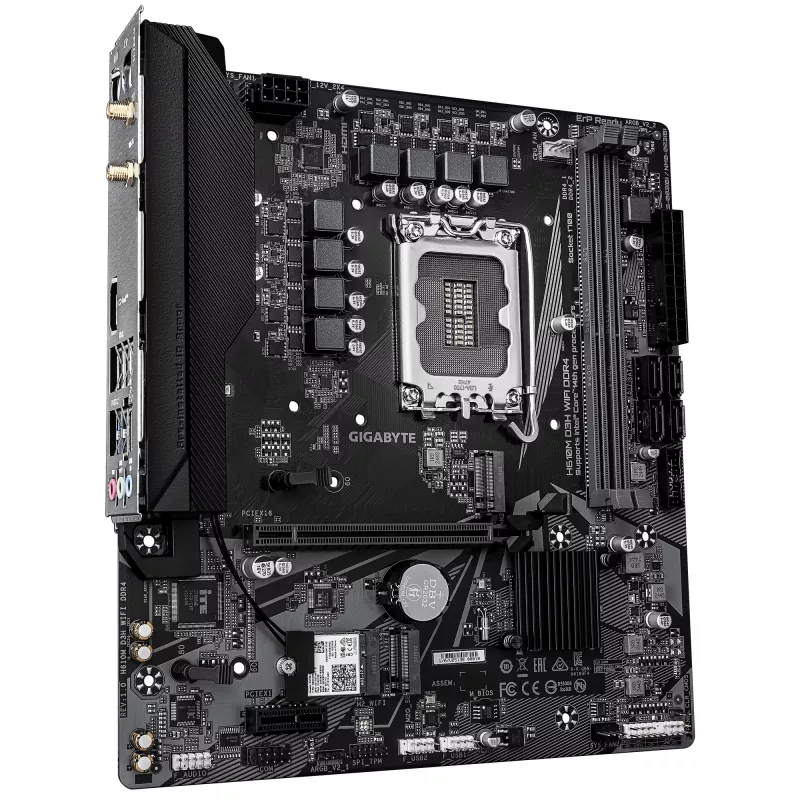

Motherboard GIGABYTE H610M D3H WIFI, H610, LGA 1700, Micro ATX

Motherboard GIGABYTE H610M D3H WIFI, H610, LGA 1700, Micro ATX
Motherboard GIGABYTE H610M D3H WIFI, H610, LGA 1700, Micro ATX
Motherboard GIGABYTE H610M D3H WIFI, H610, LGA 1700, Micro ATX
Motherboard GIGABYTE H610M D3H WIFI, H610, LGA 1700, Micro ATX
36 mo.
Motherboard GIGABYTE H610M D3H WIFI, H610, LGA 1700, Micro ATX
Motherboard GIGABYTE H610M D3H WIFI, H610, LGA 1700, Micro ATX
Motherboard GIGABYTE H610M D3H WIFI, H610, LGA 1700, Micro ATX
Motherboard GIGABYTE H610M D3H WIFI, H610, LGA 1700, Micro ATX
R1,991
The GIGABYTE H610M D3H WIFI is a Micro ATX motherboard with an LGA 1700 socket, designed for 14th Gen Intel Core processors. It supports DDR4 memory up to 64 GB at 3200 MHz, offers dual PCIe 3.0 M.2 slots for fast storage, and includes onboard Wi‑Fi 5, Gigabit Ethernet and USB 3.2 Gen 1 ports for fl... Read More
Stock 3 Code 305004 Brand GIGABYTE Model H610M D3H WIFI DDR4 Warranty 3 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE H610M D3H WIFI is a Micro ATX motherboard with an LGA 1700 socket, designed for 14th Gen Intel Core processors. It supports DDR4 memory up to 64 GB at 3200 MHz, offers dual PCIe 3.0 M.2 slots for fast storage, and includes onboard Wi‑Fi 5, Gigabit Ethernet and USB 3.2 Gen 1 ports for flexible connectivity when building a reliable, high-performance PC.

Advantages

This motherboard combines a compact Micro ATX form factor with full-size features: support for LGA 1700 14th Gen Intel CPUs, dual M.2 slots for NVMe or SATA storage, and up to 64 GB of DDR4 memory across two DIMM slots. Integrated Wi‑Fi 5 and gigabit LAN provide network options out of the box, while USB 3.2 Gen 1 ports ensure modern peripheral compatibility. The board is suitable for stable everyday systems, office builds and entry to mid-level gaming or content-creation rigs.

Suitable for

  • Home and office PCs
  • Entry to mid-level gaming systems
  • Compact workstations for content creators
  • Upgrades to existing Intel LGA 1700 platforms

Key specifications

  • Form factor: Micro ATX
  • Chipset: Intel H610
  • Socket: LGA 1700 (14th Gen Intel Core support)
  • Memory: 2 × DDR4 DIMM slots, up to 64 GB, up to 3200 MHz
  • Storage: Dual PCIe 3.0 M.2 slots
  • Expansion slots: PCIe x1 Gen3 (1 slot)
  • Connectivity: Wi‑Fi 5, Gigabit Ethernet, USB 3.2 Gen 1
  • Weight: 0.93 kg

How to use

Install the GIGABYTE H610M D3H WIFI into a compatible Micro ATX chassis, seat a supported LGA 1700 CPU and apply thermal solution according to the CPU manufacturer. Populate up to two DDR4 DIMMs, connect storage devices to the M.2 slots or SATA ports, and attach power and front-panel connectors from the case. Install the latest BIOS and chipset drivers from GIGABYTE to ensure full compatibility with 14th Gen Intel processors and attached peripherals.

Recommendations

For stable operation, use matched DDR4 memory modules and update the BIOS before first boot. When using high-speed NVMe drives in both M.2 slots, check the motherboard manual for any shared lanes with SATA ports to optimize performance and compatibility.
Key Highlights
  • Supports Intel Core 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • Fast Networks: Wi-Fi 802.11ac & GbE LAN
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
  • Intel LGA 1700 Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
  • PC micro ATX Intel H610 Realtek ALC897 7.1 channels
  • DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
  • HDD & SSD M.2, SATA III Number of storage drives supported: 6
  • BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
  • Gigabit Ethernet Wi-Fi Wi-Fi 5 (802.11ac) Bluetooth 5.1
Specifications
1st M.2 highest PCI Express generation
3.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
3.0
2nd M.2 largest key size
2280
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.1
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper
Yes
Compatible processor series
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Component for
PC
Cooling type
Passive
CPU fan connector
Yes
Depth
220 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8111H
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
64 GB
Maximum internal memory per slot
32 GB
Maximum resolution
4096 x 2304 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
Intel H610
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Number of battery cells
1
Number of chassis fan connectors
2
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
2
Number of RGB LED pin headers
2
Number of SATA III connectors
4
Number of storage drives supported
6
Package depth
268 mm
Package height
68 mm
Package weight
1.06 kg
Package width
270 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Power source type
ATX
Processor manufacturer
Intel
Processor socket
LGA 1700
Product colour
Dark brown
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
2
RGB LED pin header
Yes
Screws included
Yes
Serial port headers
1
Supported memory clock speed (max)
3200 MHz
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
Supported memory types
DDR4-SDRAM
Supported processor sockets
LGA 1700
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
930 g
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Width
244 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
WLAN controller model
Intel Dual Band Wireless-AC 9560
