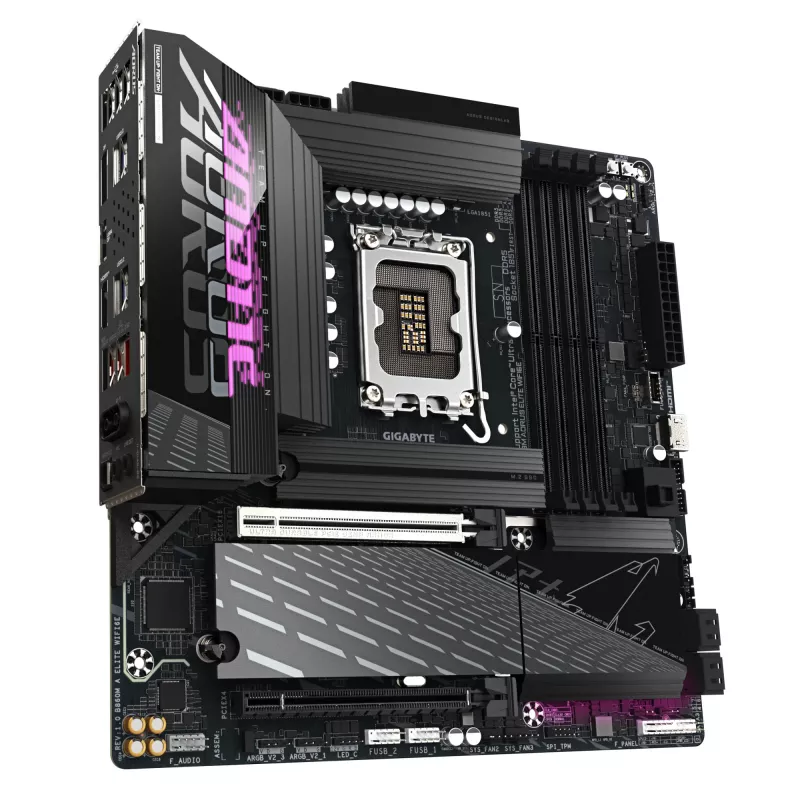

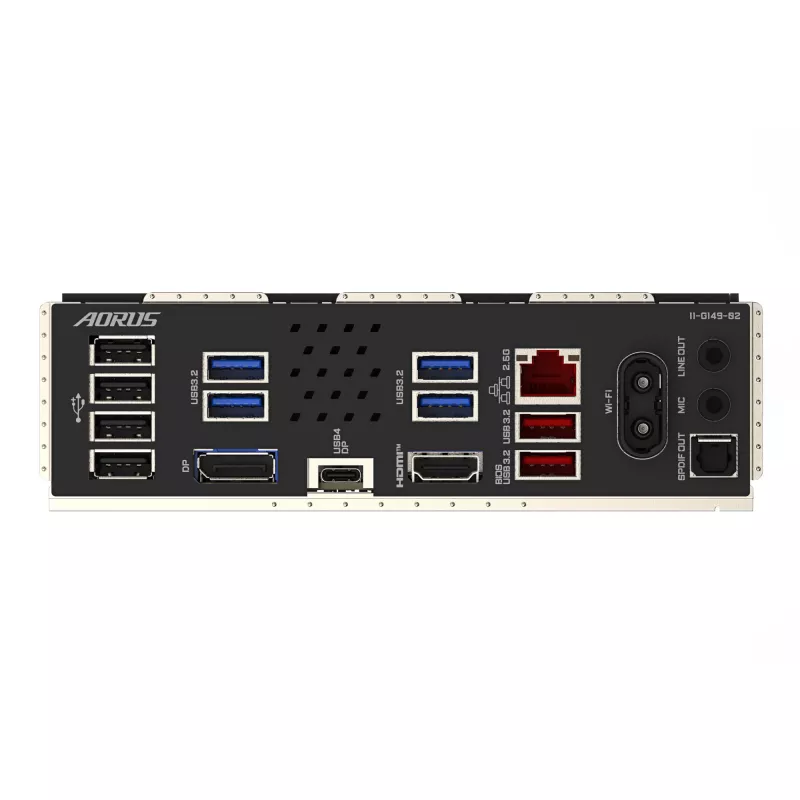

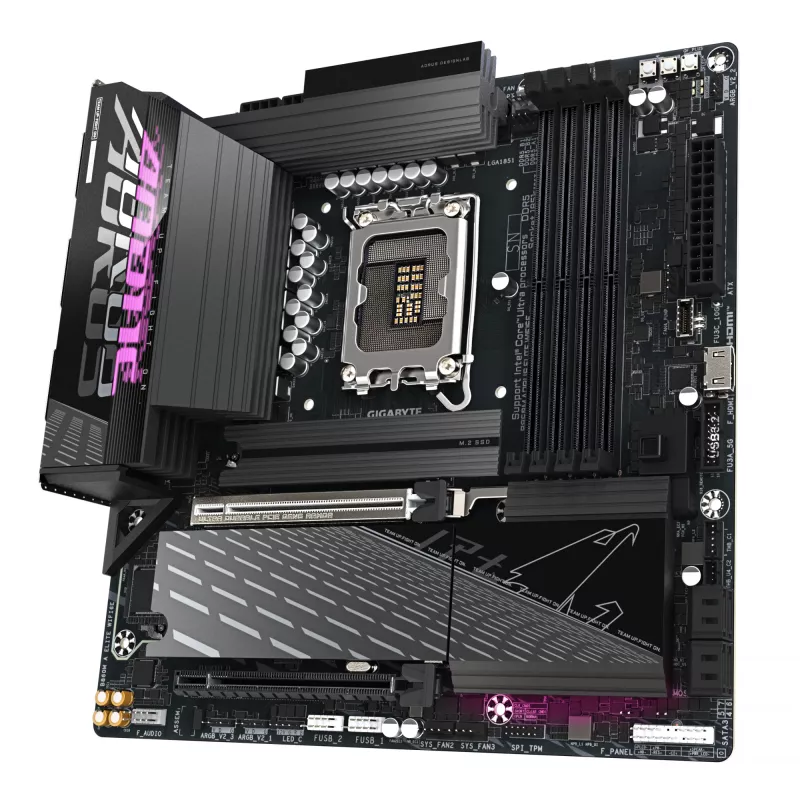

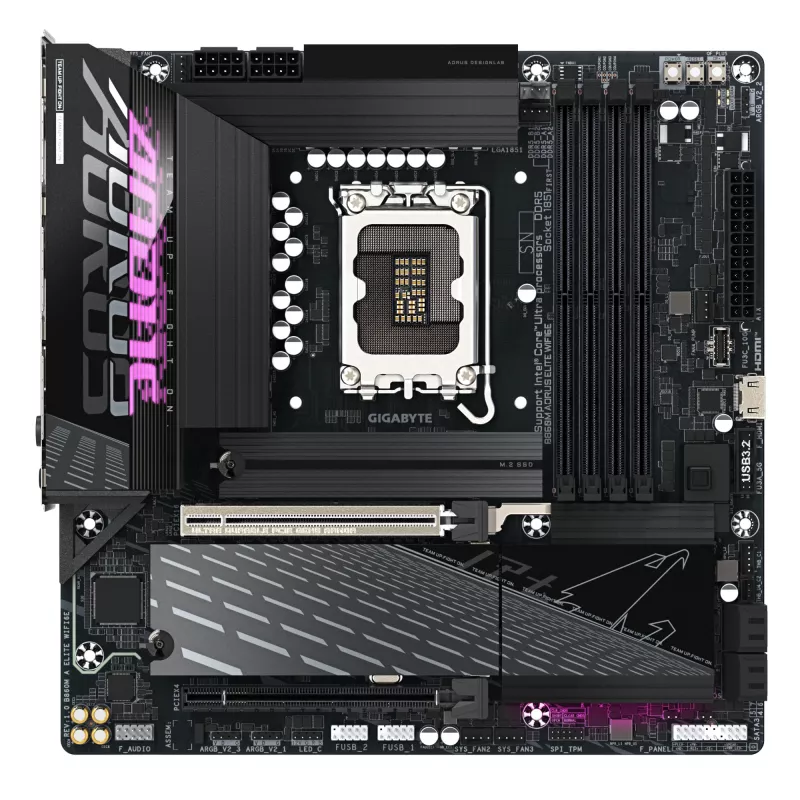

GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt

GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
36 mo.
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt
R4,280
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your... Read More
Stock 10 Code 105721 Brand GIGABYTE Model B860M A ELITE WIFI6E Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

GIGABYTE B860M AORUS ELITE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, Thunderbolt. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Key Highlights
  • Twin Hybrid Digital 12+1+2+1 Phases 60A DrMOS VRM
  • Dual Channel DDR5:4*DIMMs
  • PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
  • EZ-Latch Plus for M.2 SSDs installation
  • Fully Covered MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch Click
  • Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
  • 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
  • Q-Flash Plus
  • Intel LGA 1851 (Socket V1) Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
  • PC micro ATX Intel B860 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2580
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
25110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper
Yes
Compatible processor series
Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Component for
PC
Cooling type
Passive
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
Digital audio optical out
1
DirectX version
12.0
DisplayPort version
2.1
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
Intel B860
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
mSATA ports quantity
0
Number of battery cells
1
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
2
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
Number of storage drives supported
7
Number of water pump connectors
2
On-board graphics card
No
Package depth
268 mm
Package height
68 mm
Package weight
1.89 kg
Package width
270 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Product colour
Black
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
9200 MHz
Supported memory clock speeds
5600,6400,9200 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
LGA 1851
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Thunderbolt headers
2
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB4 Gen 2x2 ports quantity
1
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
1.69 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Width
244 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Intel Wi-Fi 6E AX211
