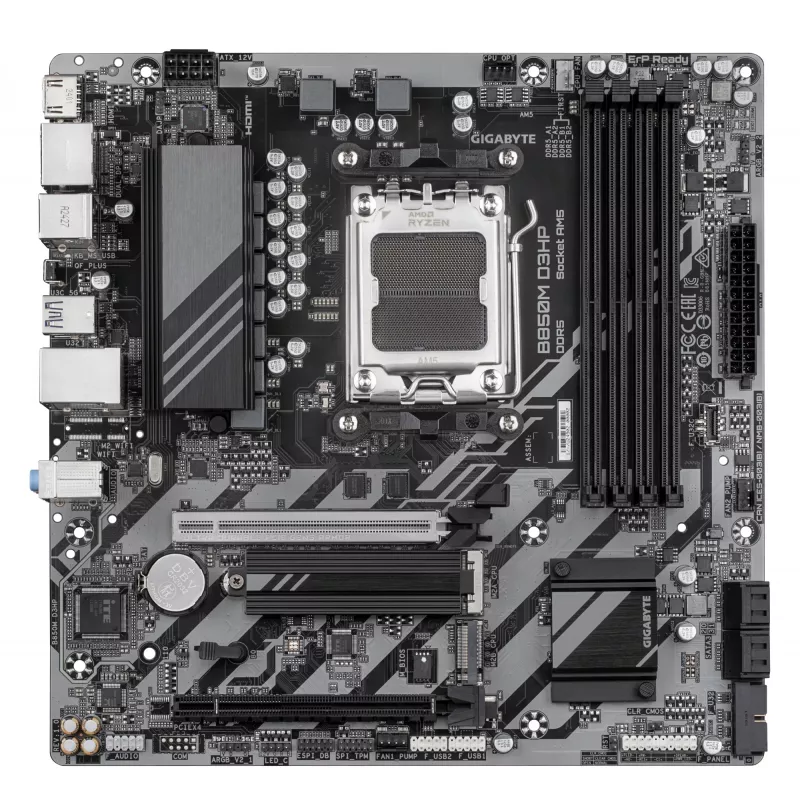

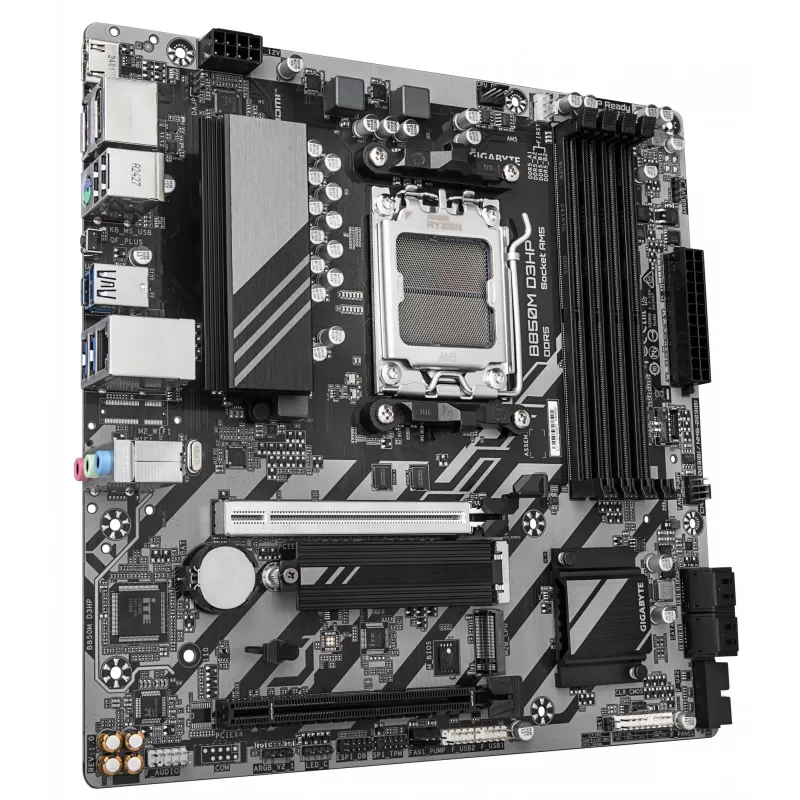

Motherboard GIGABYTE B850M D3HP, AMD B850, AM5, Micro ATX

Motherboard GIGABYTE B850M D3HP, AMD B850, AM5, Micro ATX
Motherboard GIGABYTE B850M D3HP, AMD B850, AM5, Micro ATX
Motherboard GIGABYTE B850M D3HP, AMD B850, AM5, Micro ATX
Motherboard GIGABYTE B850M D3HP, AMD B850, AM5, Micro ATX
36 mo.
Motherboard GIGABYTE B850M D3HP, AMD B850, AM5, Micro ATX
Motherboard GIGABYTE B850M D3HP, AMD B850, AM5, Micro ATX
Motherboard GIGABYTE B850M D3HP, AMD B850, AM5, Micro ATX
Motherboard GIGABYTE B850M D3HP, AMD B850, AM5, Micro ATX
R2,858
The GIGABYTE B850M D3HP is a Micro ATX motherboard designed for Socket AM5 systems and compatible with AMD Ryzen 9000 Series processors. Built on the AMD B850 chipset, it supports up to 256 GB of DDR5 memory across four slots (up to 8200 MHz OC), offers one PCIe 5.0 x16 slot and additional expansion... Read More
Stock 7 Code 312282 Brand GIGABYTE Model B850M D3HP Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE B850M D3HP is a Micro ATX motherboard designed for Socket AM5 systems and compatible with AMD Ryzen 9000 Series processors. Built on the AMD B850 chipset, it supports up to 256 GB of DDR5 memory across four slots (up to 8200 MHz OC), offers one PCIe 5.0 x16 slot and additional expansion including a PCIe 4.0 M.2 slot, and provides GbE LAN and USB 3.2 Gen 2 connectivity for modern builds.

Advantages

This motherboard combines a compact Micro ATX form factor with a robust 5+2+2-phase digital VRM to ensure stable power delivery for high-performance AMD Ryzen 9000 Series CPUs. Support for high-frequency DDR5 memory (up to 8200 MHz OC) and a PCIe 5.0 x16 slot enables improved graphics and memory performance, while onboard M.2 storage support and USB 3.2 Gen 2 ports provide fast storage and peripheral connectivity.

Suitable for

  • Compact gaming PC builds using AMD Ryzen 9000 Series processors
  • Home or office workstations requiring fast memory and storage
  • Content creation rigs that benefit from high-speed DDR5 and PCIe 5.0 graphics
  • System builders seeking a Micro ATX motherboard with modern I/O

Key specifications

  • Chipset: AMD B850
  • Socket: AM5 (supports AMD Ryzen 9000 Series)
  • Form factor: Micro ATX
  • Memory: 4 x DDR5 slots, up to 256 GB, up to 8200 MHz (OC)
  • Expansion: 1 x PCIe 5.0 x16 slot; PCIe 4.0 M.2 slot
  • Storage: Support for M.2 SSDs and SATA drives (HDD/SSD)
  • Networking: GbE LAN
  • USB: USB 3.2 Gen 2 ports
  • VRM: 5+2+2-phase digital VRM
  • Weight: 1.3 kg

How to use

Install the motherboard into a compatible Micro ATX case, fit a Socket AM5 AMD Ryzen 9000 Series CPU and apply the appropriate CPU cooler. Populate up to four DDR5 memory modules within the supported specifications and connect storage devices to the M.2 and SATA connectors. Install a PCIe 5.0 graphics card in the x16 slot if required. Connect power from a compatible PSU, attach front-panel connectors and peripherals, then power on and enter the BIOS to configure memory XMP/OC settings and boot priorities.

Recommendations

For stable high-frequency DDR5 operation, use quality memory kits validated for the motherboard and ensure adequate CPU cooling. Update the BIOS to the latest version before overclocking or installing new Ryzen 9000 Series CPUs to ensure compatibility and optimal performance.

Key Highlights
  • Compact gaming PC builds using AMD Ryzen 9000 Series processors
  • Home or office workstations requiring fast memory and storage
  • Content creation rigs that benefit from high-speed DDR5 and PCIe 5.0 graphics
  • System builders seeking a Micro ATX motherboard with modern I/O
  • Chipset: AMD B850
  • Socket: AM5 (supports AMD Ryzen 9000 Series)
  • Form factor: Micro ATX
  • Memory: 4 x DDR5 slots, up to 256 GB, up to 8200 MHz (OC)
  • Expansion: 1 x PCIe 5.0 x16 slot; PCIe 4.0 M.2 slot
  • Storage: Support for M.2 SSDs and SATA drives (HDD/SSD)
  • Networking: GbE LAN
  • USB: USB 3.2 Gen 2 ports
  • VRM: 5+2+2-phase digital VRM
  • Weight: 1.3 kg
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
2.1
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B850
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of battery cells
1
Number of chassis fan connectors
3
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
6
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 5.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Brown
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Serial port headers
1
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
1.3 kg
Wi-Fi
No
Width
244 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64

Manual

Open Manual

Leaflet

Open Leaflet
