Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX

Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
36 mo.
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 AI TOP, AMD B850, Socket AM5, ATX
R7,903

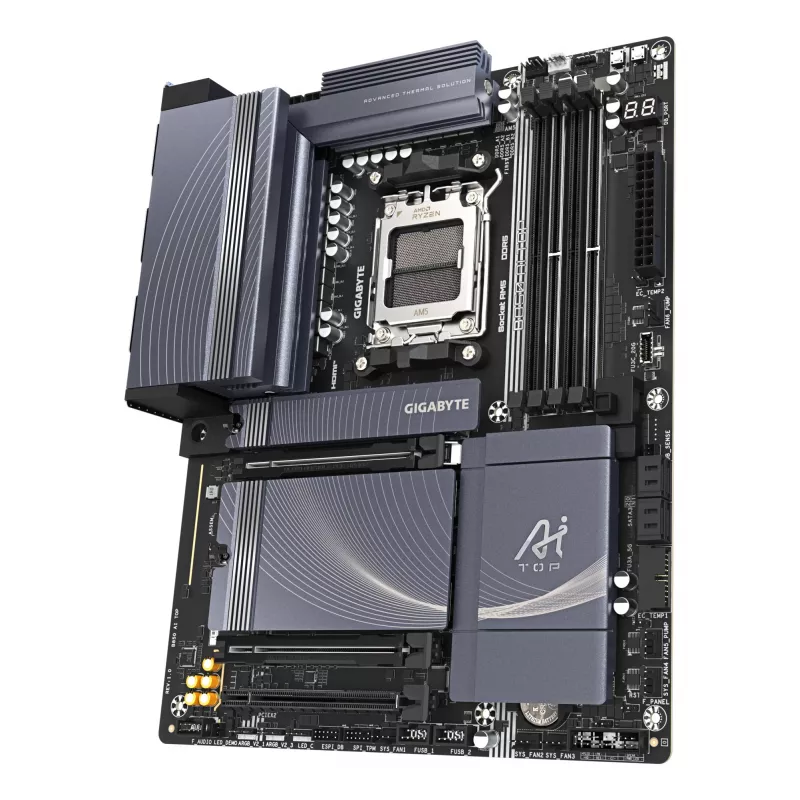

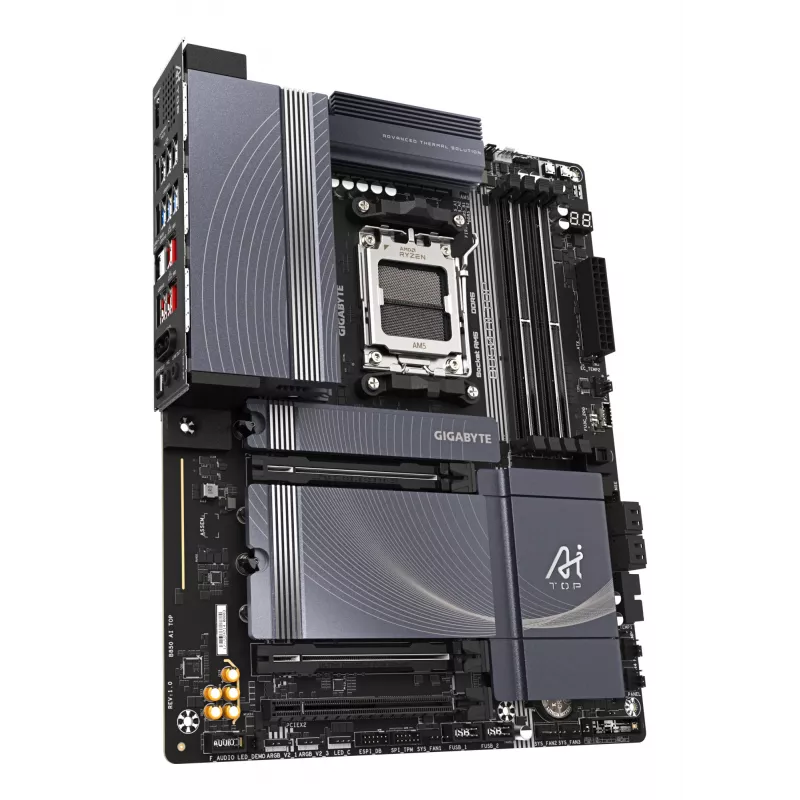

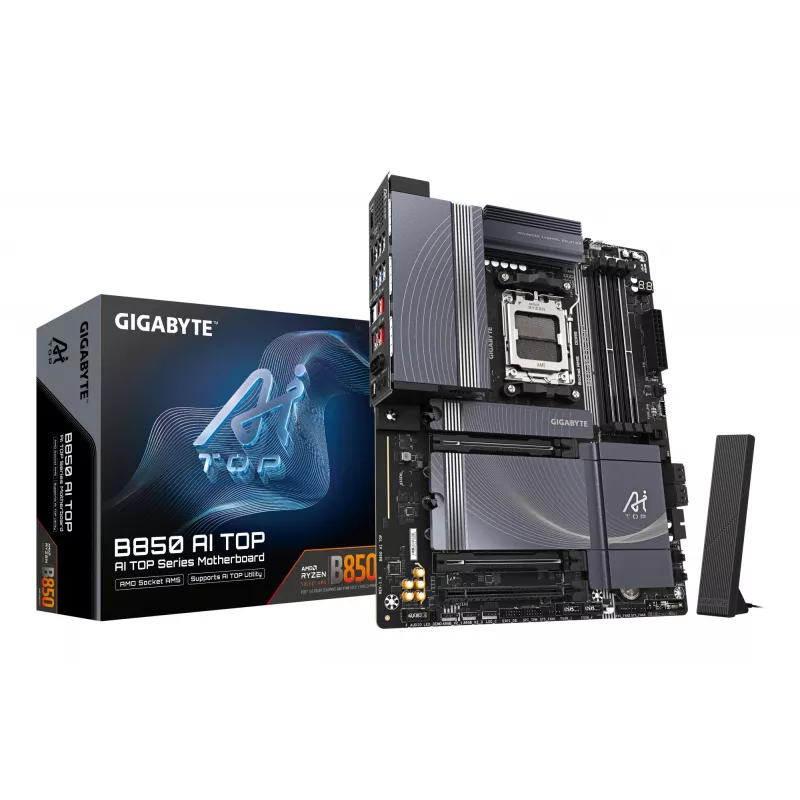

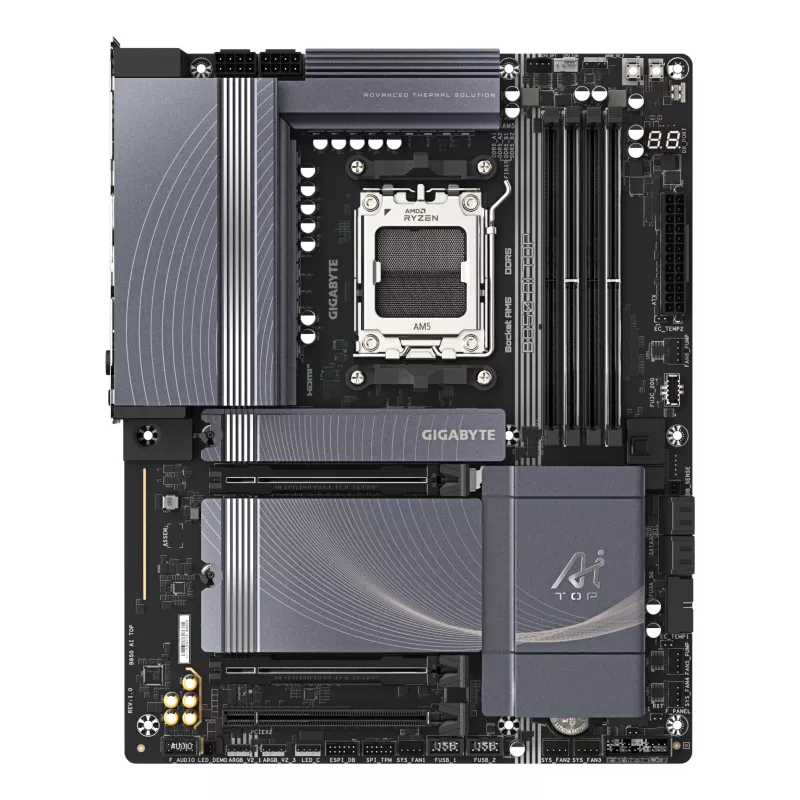

The GIGABYTE B850 AI TOP is an ATX motherboard based on the AMD B850 chipset for Socket AM5. It supports AMD Ryzen 9000 Series processors and up to 256 GB of DDR5 memory across four DIMM slots, with overclocking support up to 8600 MHz (OC). The board includes multiple high-speed expansion options, i... Read More
Stock 2 Code 110845 Brand GIGABYTE Model B850 AI TOP Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE B850 AI TOP is an ATX motherboard based on the AMD B850 chipset for Socket AM5. It supports AMD Ryzen 9000 Series processors and up to 256 GB of DDR5 memory across four DIMM slots, with overclocking support up to 8600 MHz (OC). The board includes multiple high-speed expansion options, including two PCIe 5.0 slots and one PCIe 4.0 M.2 slot, plus integrated network connectivity with Wi‑Fi 7 and ten LAN ports, making it suitable for demanding desktop builds that require advanced connectivity and high-performance components.

Advantages

The motherboard features a robust 16+2+2 phases digital VRM for stable power delivery to modern CPUs, broad memory support with high overclocking potential, and a generous complement of expansion and storage interfaces. Integrated Wi‑Fi 7 and numerous LAN ports provide flexible networking options, while the ATX form factor ensures compatibility with standard PC cases and cooling solutions.

Suitable for

  • High-performance gaming PCs
  • Content creation workstations (video editing, 3D rendering)
  • Professional desktop systems requiring advanced networking
  • Custom builds needing multiple high-speed storage and expansion slots

Key specifications

  • Form factor: ATX
  • Chipset: AMD B850
  • Processor socket: Socket AM5 (supports AMD Ryzen 9000 Series)
  • Memory: 4 DDR5 DIMM slots, up to 256 GB, OC up to 8600 MHz
  • Power delivery: 16+2+2 phases digital VRM
  • Expansion: 2x PCIe 5.0 slots, 1x PCIe 4.0 M.2 slot
  • Networking: Wi‑Fi 7, 10 LAN ports
  • Supported storage: HDD and SSD

How to use

Install the motherboard in a compatible ATX case and mount an AM5-compatible CPU following the processor and cooler manufacturer instructions. Populate DDR5 modules in the recommended DIMM slots for dual- or quad-channel operation and install storage devices in available M.2 or SATA ports. Connect power supply cables to the 24‑pin ATX and CPU power headers, attach front-panel and peripheral connectors, and configure BIOS/UEFI settings for memory profiles, storage boot order, and any desired overclocking options.

Recommendations

For stable operation when overclocking memory or CPU, use a high-quality power supply and an adequate cooling solution. Update the motherboard BIOS to the latest version to ensure full compatibility with Ryzen 9000 Series processors and Wi‑Fi 7 features.
Key Highlights
  • Twin 16+2+2 Phases Digital VRM with 110A Smart Power Stage
  • Dual Channel DDR5:4*DIMMs
  • PCIe Gen5 with PCIe UD Slot X & EZ-Latch Plus
  • M.2 Gen5 with EZ-Latch Plus
  • Full Covered MOSFET Heatsinks & x16 Backplates

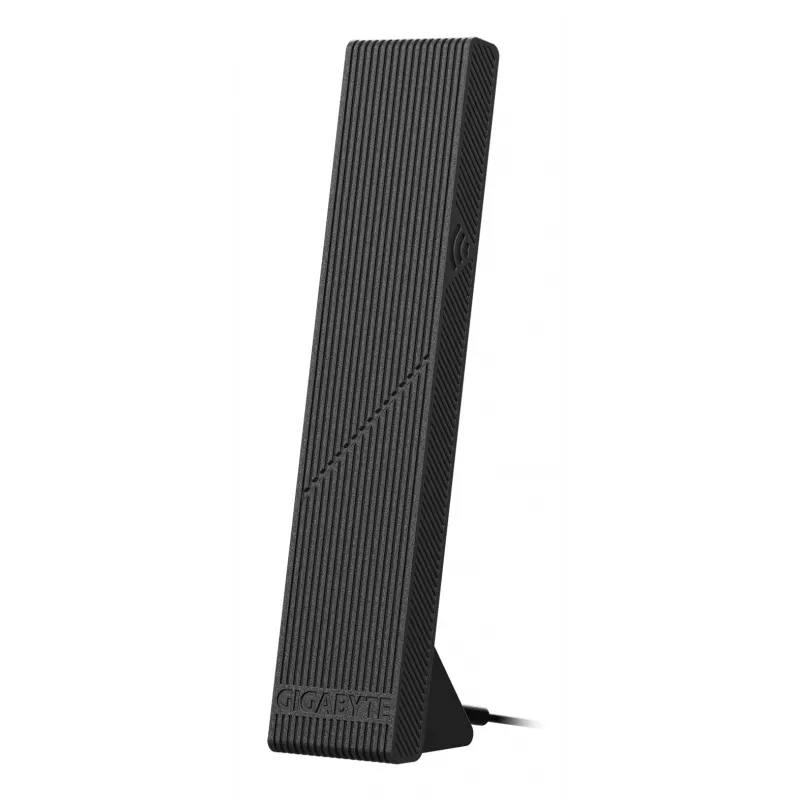

  • Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
  • Dual 10GbE LAN, Q-Flash Plus
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD B850 Realtek ALC1220 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Cooling type
Passive
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
10 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
Headphone outputs
1
Height
35 mm
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B850
Motherboard chipset family
AMD
Motherboard form factor
ATX
Number of battery cells
1
Number of chassis fan connectors
1
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
7
Number of water pump connectors
1
Package depth
270 mm
Package height
80 mm
Package weight
3 kg
Package width
335 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
1
PCI Express x32 (Gen 5.x) slots
2
Peripheral (Molex) power connectors (4-pin)
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Brown
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Serial port headers
1
Supported memory clock speed (max)
8600 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000,8600 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 connectors
1
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
2.69 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
WLAN controller model
Realtek RTL8922AE

Manual

Open Manual

Leaflet

Open Leaflet
