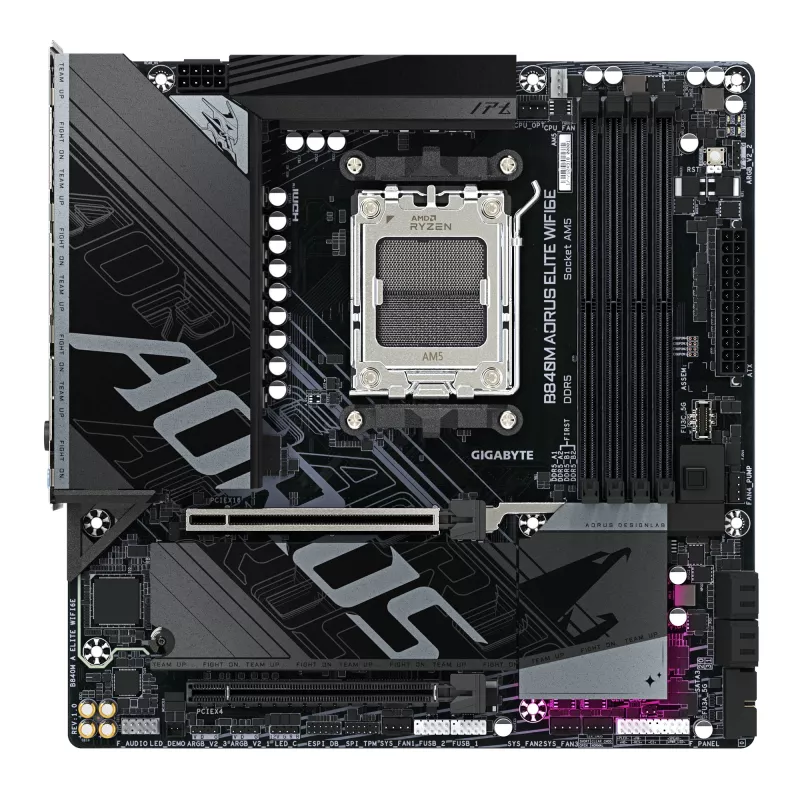

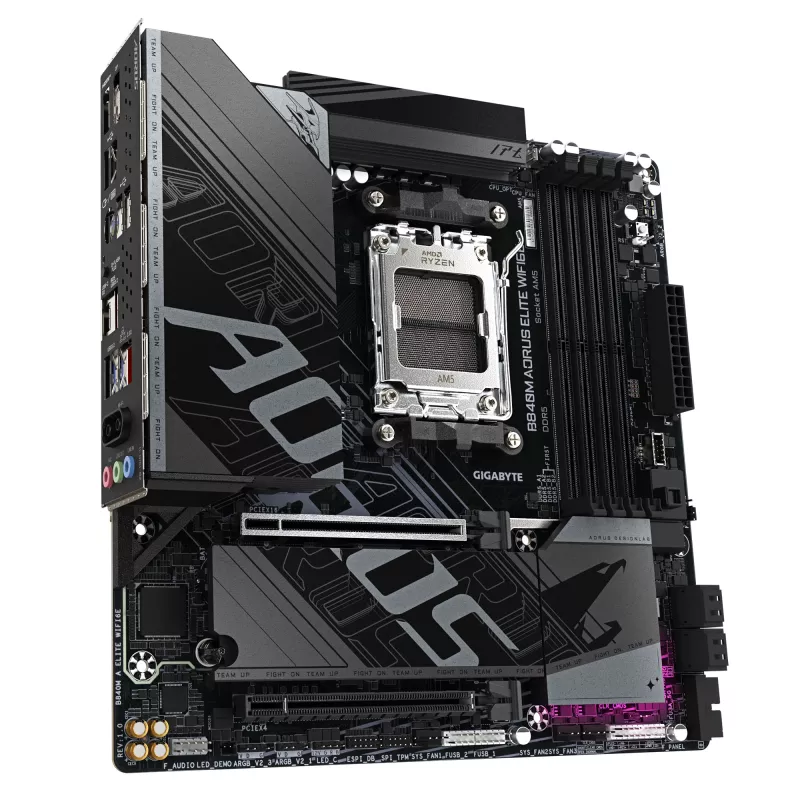

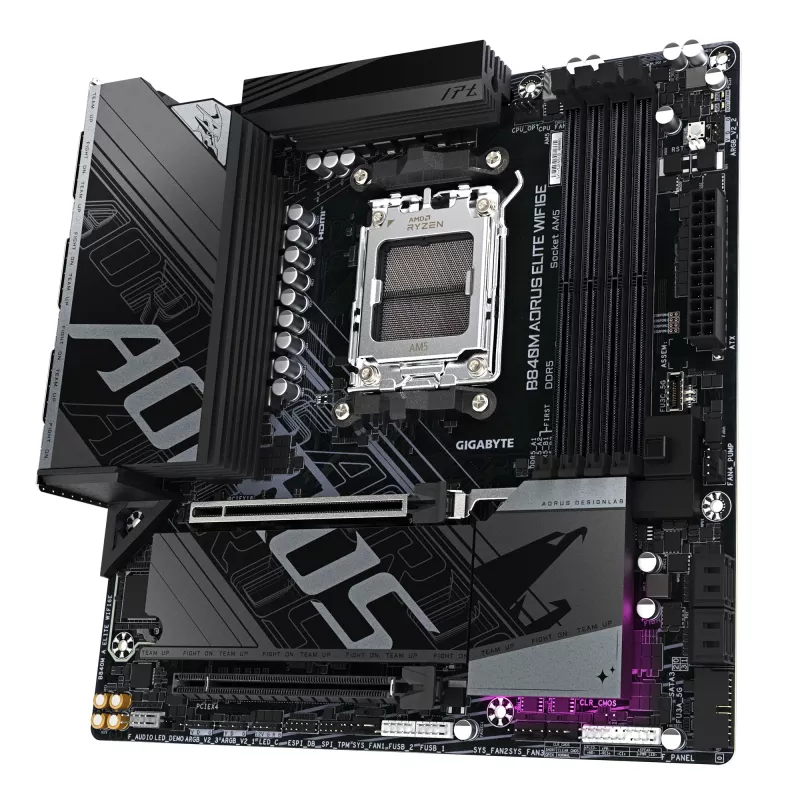

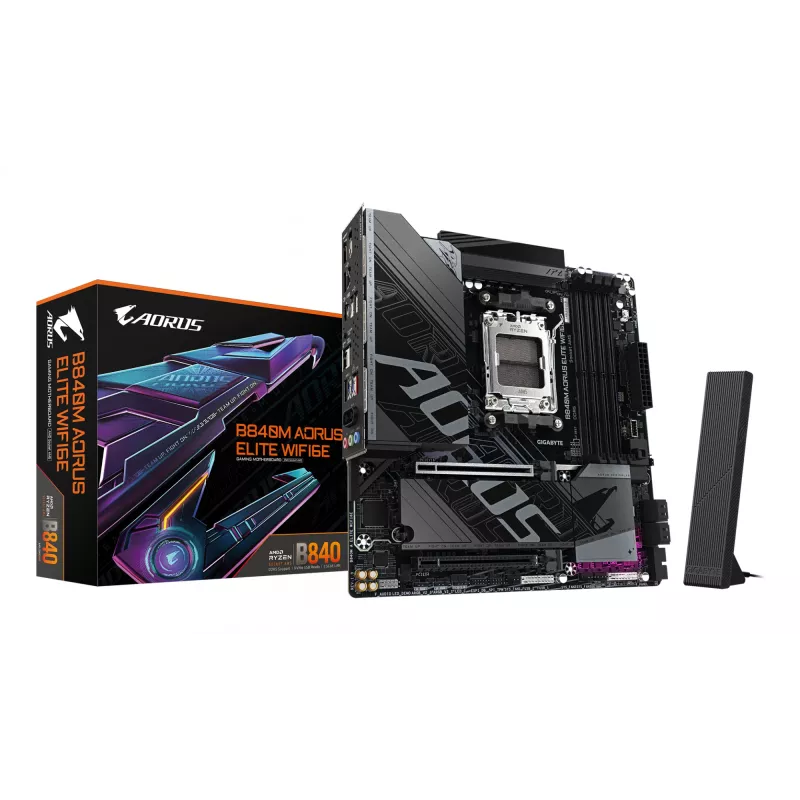

GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
36 mo.
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
R2,951
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your... Read More
Stock 19 Code 329947 Brand GIGABYTE Model B840M A ELT WF6E Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

GIGABYTE B840M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 CPUs, 10+2+2 Phases VRM, up to 8200MHz DDR5(O.C), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Key Highlights
  • X3D Turbo Mode: Unleash new era gaming performance
  • DDR5 OC up to 8200MT/s
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 10+2+2 phases VRM solution
  • Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext

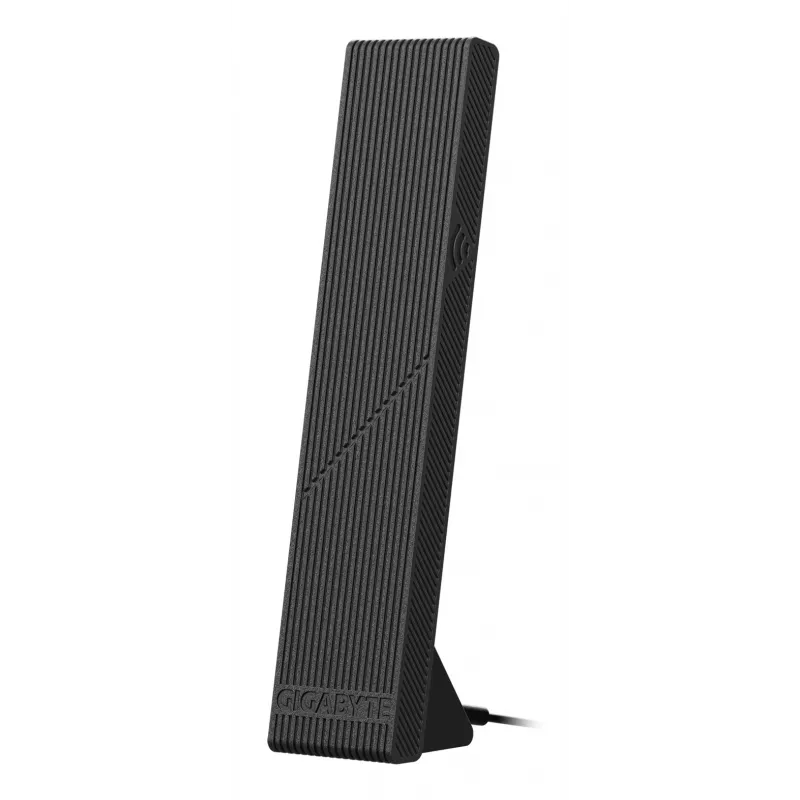

  • Fast Networking: 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
  • PCIe UD Slot: PCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC micro ATX AMD B840 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, PCI Express 4.0, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Cooling type
Passive
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B840
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of battery cells
1
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of storage drives supported
6
Number of water pump connectors
2
Package depth
268 mm
Package height
68 mm
Package weight
1.59 kg
Package width
270 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Dark brown
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
1.5 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Width
244 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
WLAN controller model
Realtek RTL8852CE

Manual

Open Manual

Leaflet

Open Leaflet
