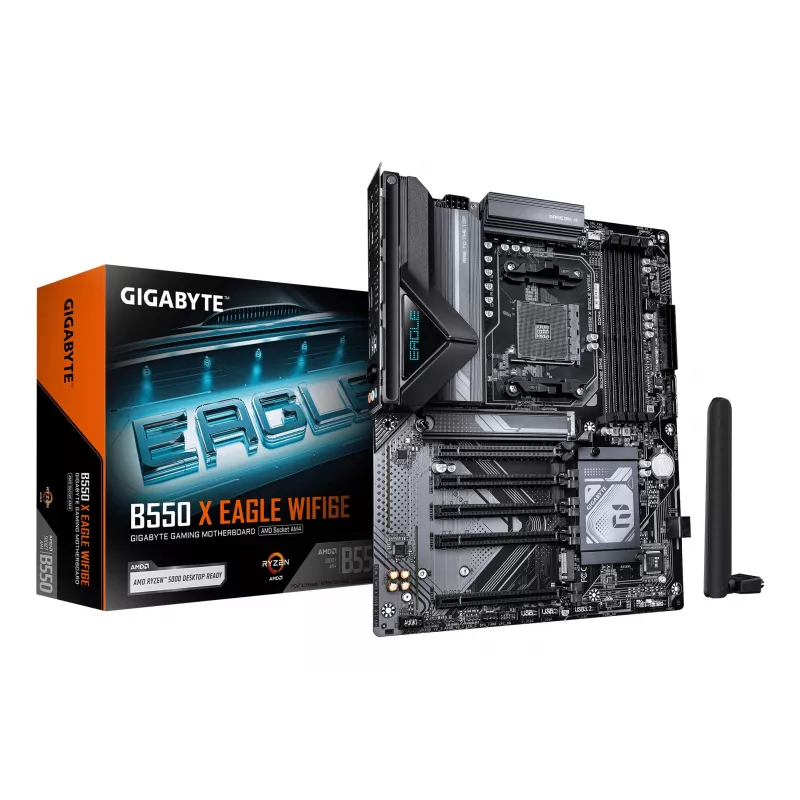

GIGABYTE B550 X EAGLE WIFI6E ATX Motherboard - AMD AM4, DDR4, 128GB, 2.5GbE, Wi-Fi 6E, Bluetooth 5.2, PCIe 4.0, Dual M.2, HDMI/DP

The GIGABYTE B550 X EAGLE WIFI6E stands out with its integrated Wi-Fi 6E module and robust 12+2 phase digital VRM, delivering reliable performance for AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors. Built on the AMD B550 chipset, this ATX motherboard balances modern connectivity with proven stability, making it a smart foundation for gaming and productivity builds.

Highlights

• Supports AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors on Socket AM4
• Dual-channel DDR4 architecture with 4 DIMM slots, up to 128 GB and 4733 MHz (OC)
• Intel Wi-Fi 6E AX210 and Bluetooth 5.2 for high-speed wireless connectivity
• Realtek 2.5GbE LAN for low-latency wired networking
• Dual M.2 slots (one PCIe 4.0 x4, one PCIe 3.0 x4) and four SATA 6Gb/s ports
• PCIe 4.0 x16 slot for graphics cards and a secondary PCIe 3.0 x16 (x4 mode)
• HDMI and DisplayPort outputs for integrated graphics on compatible APUs
• Premium audio with Realtek ALC1200 codec

In daily use

This motherboard handles multitasking and gaming with ease. The 12+2 phase VRM with 50A DrMOS ensures stable power delivery even under sustained loads, while the advanced thermal design keeps components cool. Wi-Fi 6E provides low-latency wireless for online gaming, and 2.5GbE LAN offers a fast wired alternative. The dual M.2 slots allow for high-speed NVMe SSDs, reducing load times, and the four SATA ports accommodate additional storage. With a full set of USB ports on the rear panel, including USB 3.2 Gen 2 Type-A, connecting peripherals is straightforward.

Full specifications

• Chipset: AMD B550
• Socket: AM4
• Supported CPUs: AMD Ryzen 5000 Series, 4000 G-Series, 3000 Series, 3000 G-Series
• Memory: 4 x DDR4 DIMM, max 128 GB, up to 4733 MHz (OC), dual-channel
• Expansion Slots: 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x16 (x4 mode, chipset)
• Storage: 2 x M.2 (1 x PCIe 4.0 x4/SATA, 1 x PCIe 3.0 x4/SATA), 4 x SATA 6Gb/s
• LAN: Realtek 2.5GbE
• Wireless: Intel Wi-Fi 6E AX210 (802.11a/b/g/n/ac/ax), Bluetooth 5.2
• Audio: Realtek ALC1200 codec
• Rear USB: 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0/1.1 Type-A
• Video Outputs: 1 x HDMI, 1 x DisplayPort
• Power Design: 12+2 Phases Digital VRM with 50A DrMOS
• Form Factor: ATX

Final note

The GIGABYTE B550 X EAGLE WIFI6E combines modern wireless connectivity, robust power delivery, and flexible storage options, making it a versatile choice for builders seeking a dependable AM4 platform.
