Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX

Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
36 mo.
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
Motherboard GIGABYTE X870 AORUS STEALTH ICE, AMD AM5, ATX
R7,222
The GIGABYTE X870 AORUS STEALTH ICE is an ATX motherboard for Socket AM5 systems, designed for AMD Ryzen 7000 / 8000 / 9000 series processors. It uses the AMD X870 chipset and supports DDR5 memory with overclocking up to 8200 MT/s, up to 256 GB across four DIMM slots. The board provides extensive st... Read More
Stock 17 Code 880157 Brand GIGABYTE Model X870 A STEALTH ICE Warranty 3 Years

Shipping & Returns

Estimated delivery Monday, October 5
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

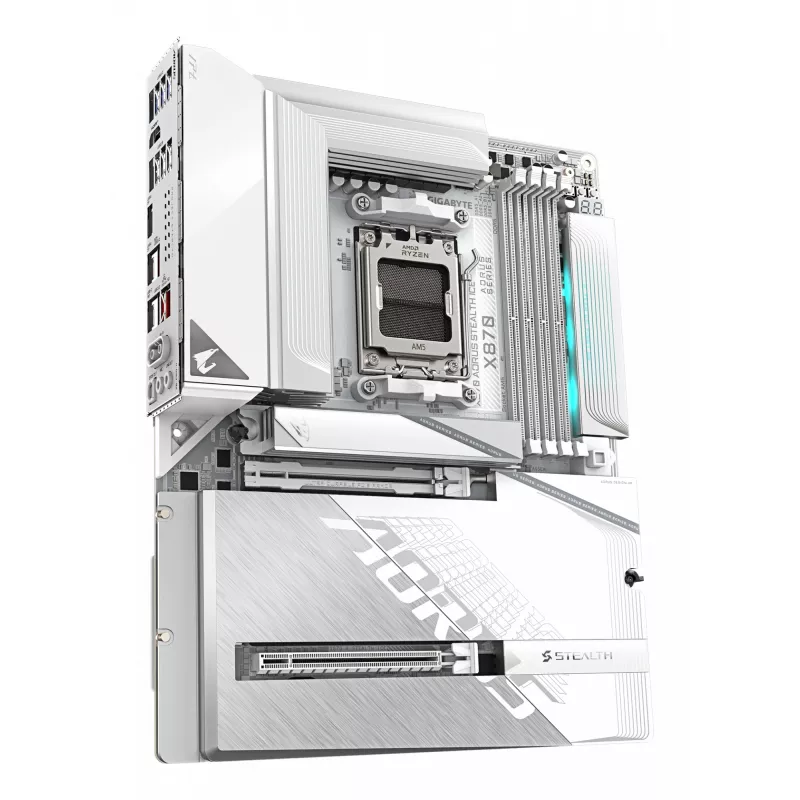

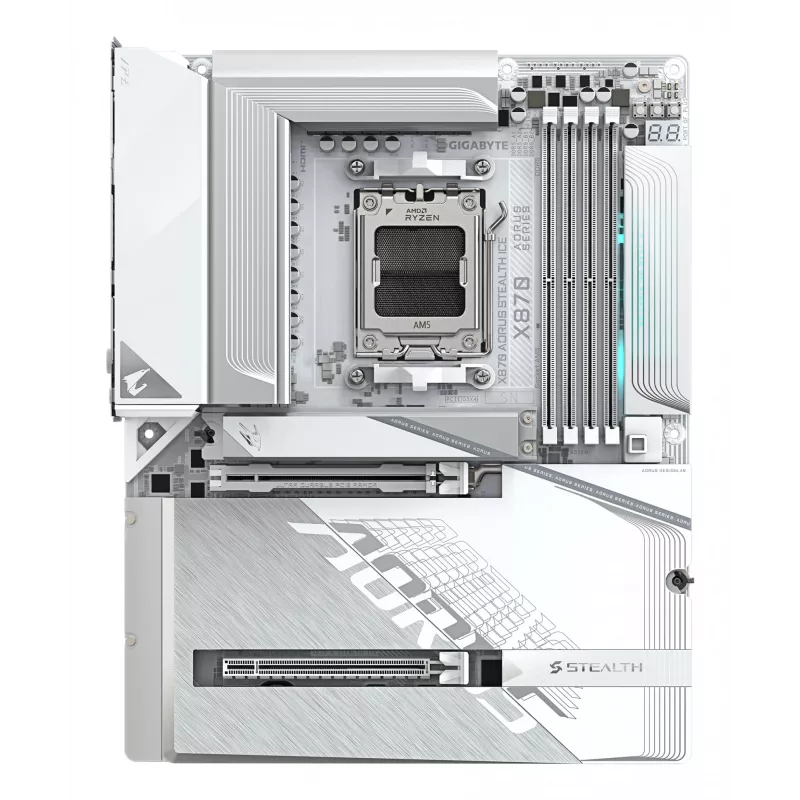

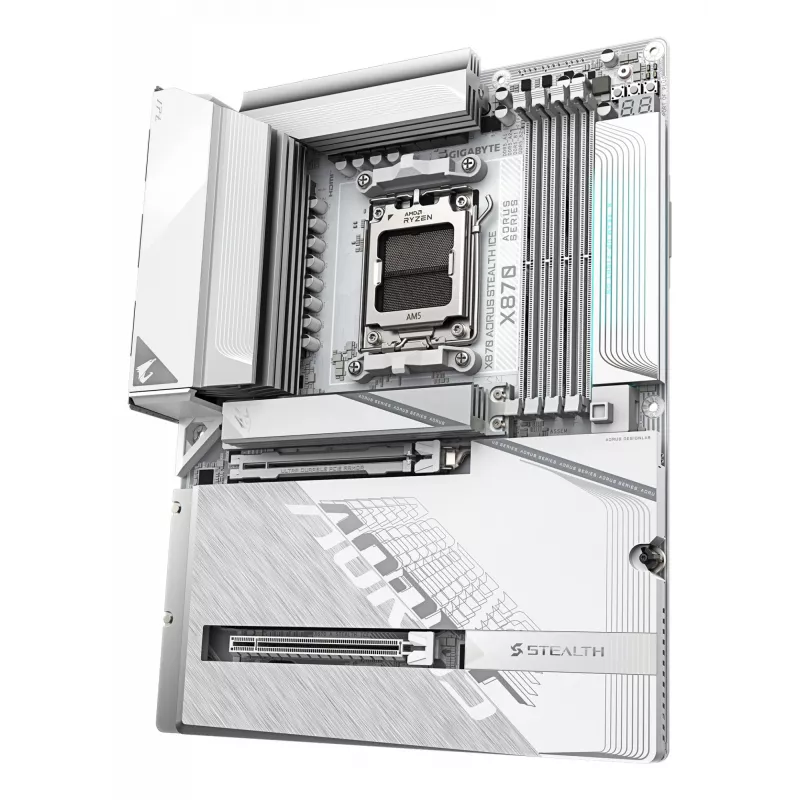

The GIGABYTE X870 AORUS STEALTH ICE is an ATX motherboard for Socket AM5 systems, designed for AMD Ryzen 7000 / 8000 / 9000 series processors. It uses the AMD X870 chipset and supports DDR5 memory with overclocking up to 8200 MT/s, up to 256 GB across four DIMM slots. The board provides extensive storage and expansion options including multiple M.2 slots (one supporting PCIe 5.0 x4), PCIe 5.0 and PCIe 4.0 lanes, integrated Wi‑Fi 7 and 5 GbE LAN, and a 16+2+2 digital VRM for stable power delivery.

Advantages

The motherboard combines high-speed connectivity, advanced thermal solutions and flexible storage options to support demanding workloads. Its digital twin 16+2+2 phase VRM and enhanced cooling features (VRM Thermal Armor, M.2 Thermal Guard variants and M.2 EZ‑Flex) improve stability under load. Integrated networking (Wi‑Fi 7, Bluetooth 5.3, 5 GbE) and modern I/O (Dual USB4 Type‑C with DP‑Alt, HDMI) deliver broad compatibility for peripherals and displays.

Suitable for

  • High‑end gaming PCs requiring PCIe 5.0 storage and fast networking
  • Content creators and professionals needing multi‑drive high‑speed storage and large memory capacity
  • System builders seeking a feature‑rich ATX AM5 platform with Wi‑Fi 7 and advanced VRM cooling

Key specifications

  • Form factor: ATX
  • Chipset: AMD X870
  • Processor support: AMD Socket AM5 — Ryzen 7000 / 8000 / 9000 Series
  • Memory: DDR5‑SDRAM, 4 DIMM slots, up to 256 GB, DDR5 OC up to 8200 MT/s
  • Power delivery: Digital twin 16+2+2 phase VRM
  • Storage: 4× M.2 slots (including PCIe 5.0 x4), SATA III, up to 6 storage drives supported
  • Expansion: 2× PCIe 5.0 slots, 2× PCIe 4.0 slots
  • Networking: 5 GbE LAN, 2.5 GbE, Wi‑Fi 7 (802.11be) with high‑gain antenna, Bluetooth 5.3
  • Audio: Realtek ALC1220‑VB 7.1 channels
  • I/O: Dual USB4 Type‑C with DP‑Alt, HDMI and other standard ports
  • BIOS: UEFI AMI 512 Mbit; ACPI version 5.0; Clear CMOS jumper

How to use

Install the motherboard into a compatible ATX case and mount an AM5 processor along with the required cooling solution. Populate up to four DDR5 DIMMs, install M.2 SSDs into the dedicated slots (ensure thermal guards are correctly positioned) and connect SATA drives as needed. Attach Wi‑Fi antenna via the EZ‑Plug and connect power, front‑panel headers and peripherals according to the manual. Configure BIOS settings for memory XMP/OC and storage boot order before installing the operating system.

Recommendations

For optimal performance and stability, use high‑quality power supplies, ensure adequate chassis airflow, keep VRM and M.2 thermal guards unobstructed, and update the UEFI BIOS to the latest version when using new Ryzen 8000/9000 series CPUs or high‑frequency DDR5 modules.
Key Highlights
  • X3D Turbo Mode: Unleash new era gaming performance
  • DDR5 OC up to 8200MT/s, dual Channel DDR5
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • M.2 EZ-Flex: high-efficiency heat dissipation & flexible baseplate for M.2 SSD(Exclusive Patented Design)
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext

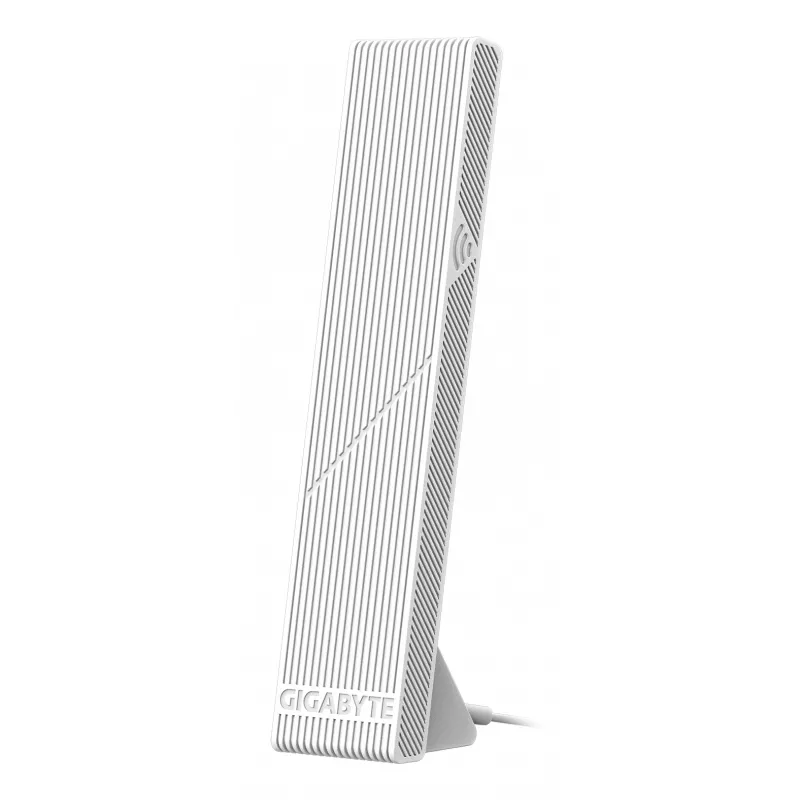

  • Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

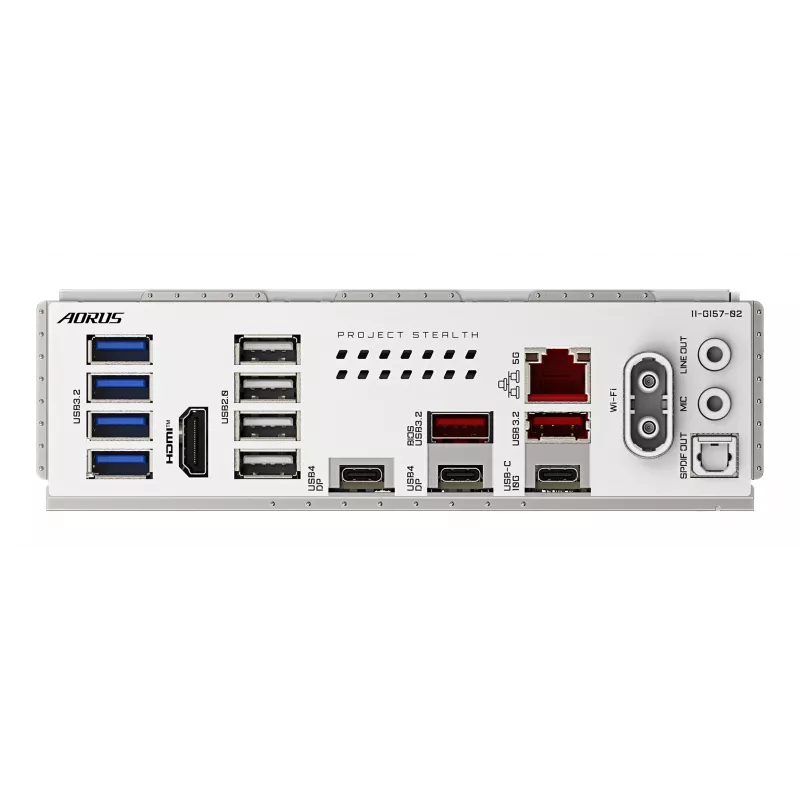

  • Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870 Realtek ALC1220-VB 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 512 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.3
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC1220-VB
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
512 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton® Internet Security (OEM version)
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Cooling type
Passive
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
Digital audio optical out
1
DirectX version
12.0
DisplayPort version
1.4
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8126
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
Motherboard form factor
ATX
mSATA ports quantity
0
Number of battery cells
1
Number of chassis fan connectors
6
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
2
Number of M.2 (M) slots
4
Number of memory slots
4
Number of noise detection headers
1
Number of RGB LED pin headers
4
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
2
Number of storage drives supported
6
Number of temperature sensor headers
2
Number of water pump connectors
3
On-board graphics card
No
Package depth
375 mm
Package height
118.5 mm
Package weight
5.07 kg
Package width
315.5 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Screws included
Yes
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 connectors
1
USB4 Gen 3x2 ports quantity
2
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
4.4 kg
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Qualcomm QCNCM865

Manual

Open Manual

Leaflet

Open Leaflet
