GIGABYTE AORUS WATERFORCE 280 Processor All-in-one liquid cooler Black

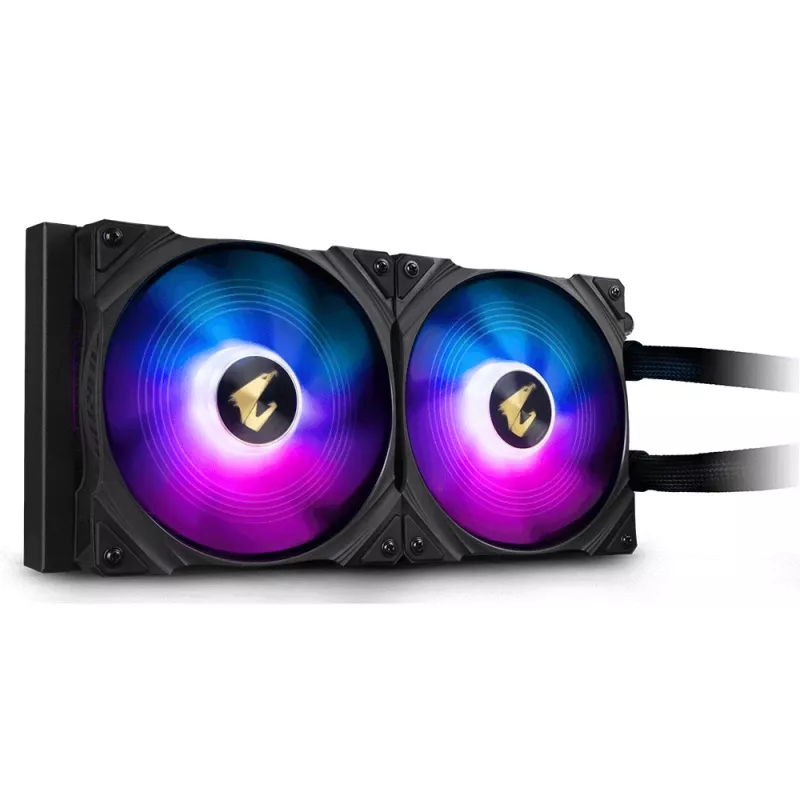

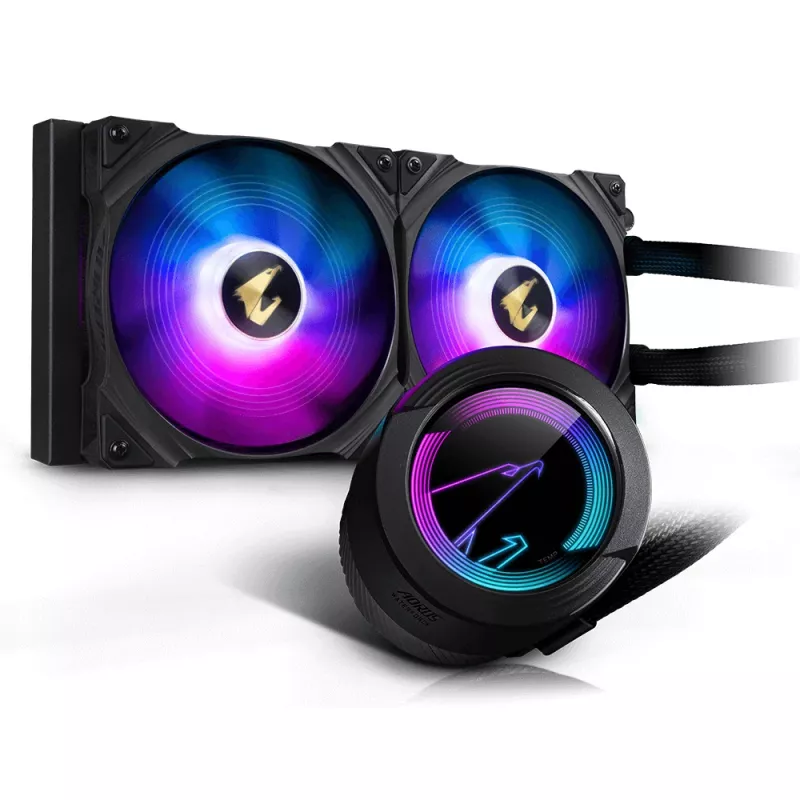

The GIGABYTE AORUS WATERFORCE 280 is an all-in-one liquid cooler engineered for gaming and high-performance systems. It integrates a 280mm radiator with two 140mm AORUS silent fans, an ARGB lighting display that can show CPU temperature, a rotatable pump head and enlarged water tubes for improved flow and faster heat dissipation. The cooler is finished in black and supports a wide range of CPU sockets including LGA 1700, LGA 2066, Socket AM4 and others.

Advantages

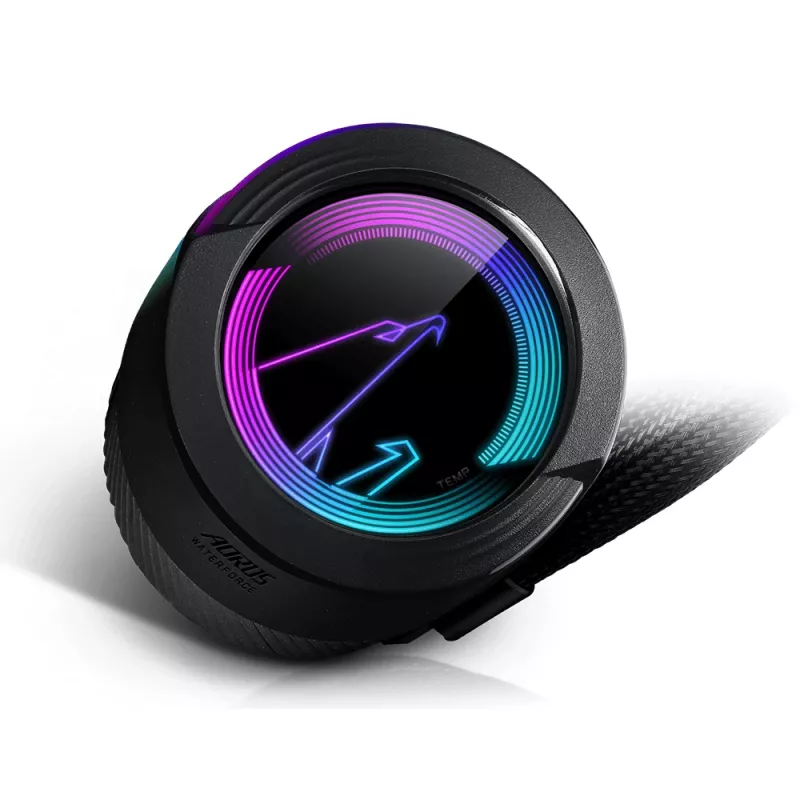

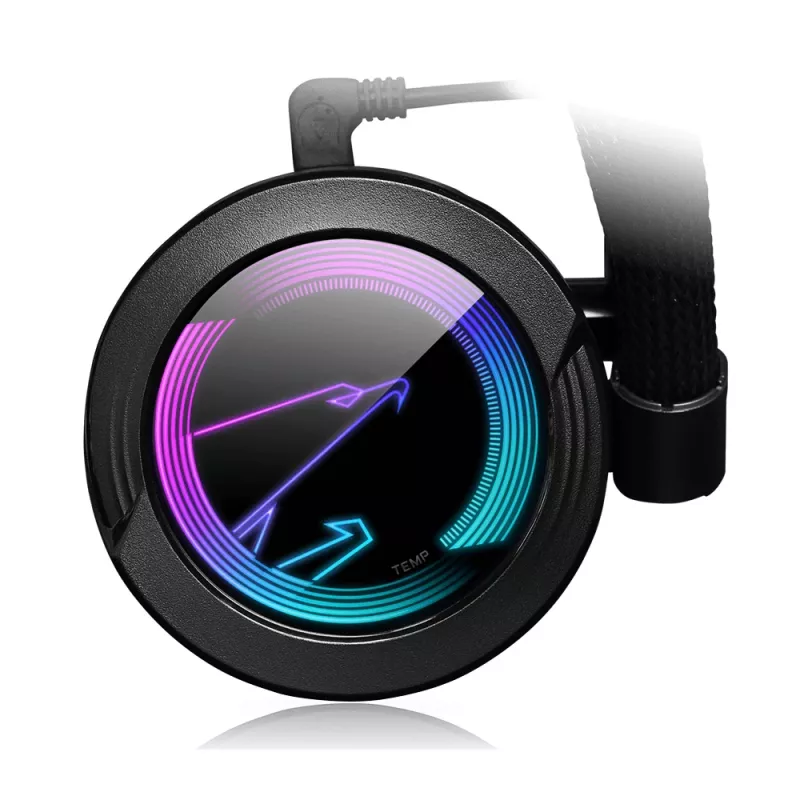

The AORUS ARGB lighting display provides real-time CPU temperature indication through addressable RGB effects. A 330° manual rotatable pump head lets you set the preferred orientation for neat cable routing and aesthetics. Enlarged water tubes (from 5.1 mmØ to 7.8 mmØ) increase water flow by approximately 37% for more efficient heat transfer. The ceramic pump axis offers extended lifetime and corrosion resistance, while graphene nano lubricant in the sleeve-bearing fans reduces noise and extends fan life. The 140mm fan blade geometry and unique edge/curve design optimize airflow and heat dissipation while keeping noise low. ARGB male and female headers on each fan simplify synchronization of multiple AORUS fans, and cable routing beside the radiator makes installation neater.

Suitable for

• Gaming desktops requiring efficient CPU cooling
• High-performance workstations and content-creation rigs
• Systems using Intel LGA 1700, LGA 2066, LGA 2011, LGA 1366, LGA 1200 or AMD Socket TR4, sTRX4, AM4

Key specifications

• Type: All-in-one liquid cooler
• Radiator size: 280 mm (two 140 mm fans)
• Fan size: 140 mm; fans optimized for low noise and high airflow
• Tube diameter: 7.8 mmØ (enlarged from 5.1 mmØ)

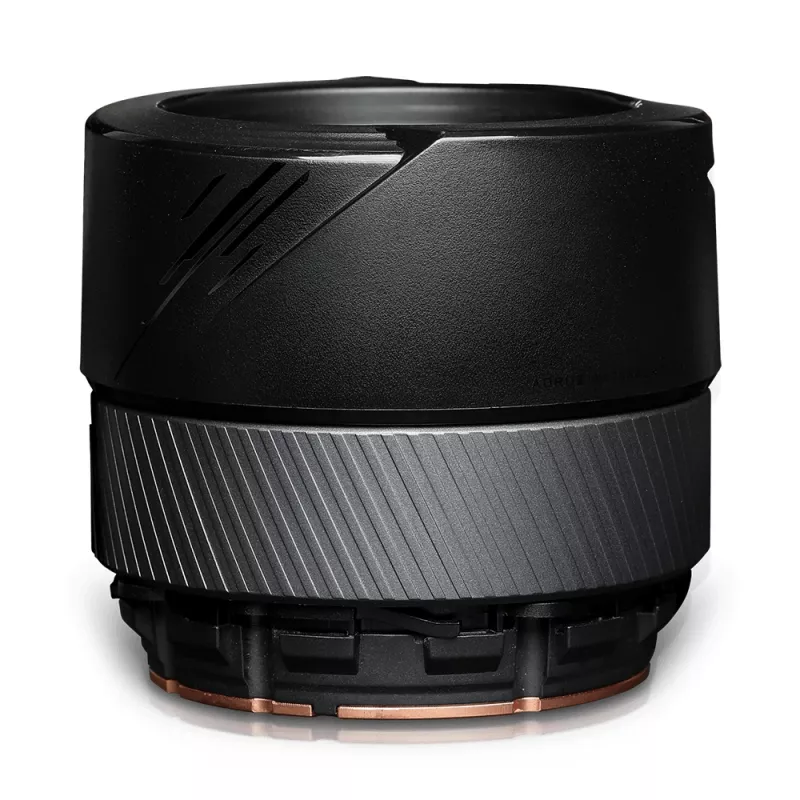

• Pump features: 330° manual rotatable head; ceramic axis (longer life)
• ARGB lighting: AORUS ARGB display with CPU temperature indication; RGB Fusion 2.0 compatible
• Supported sockets: LGA 1700, LGA 2066, LGA 2011 (Socket R), LGA 1366 (Socket B), LGA 1200 (Socket H5), Socket TR4, Socket sTRX4, Socket AM4
• Colour: Black
• Dimensions (fan): 140 mm height; radiator width 312 mm, depth 27 mm

How to use

Mount the 280 mm radiator in a compatible case location (top or front, depending on case layout) and secure the two 140 mm fans in the recommended airflow orientation. Install the pump/block assembly onto the CPU following the supplied mounting brackets for your specific socket. Connect the ARGB and fan power headers to the motherboard or controller; use the ARGB male/female pass-through on AORUS fans to link additional AORUS fans if desired. Configure lighting and temperature-display settings via RGB Fusion 2.0 or your motherboard’s ARGB software. Ensure all fittings are secure and cables are routed along the radiator side for a clean installation.

Recommendations

For best cooling performance, install the radiator where it can receive unobstructed airflow, ensure fans are set to an appropriate curve in the BIOS or fan-control software, and keep the system dust-free. Use RGB Fusion 2.0 or compatible motherboard utilities to enable the ARGB temperature display and synchronize lighting across components.
