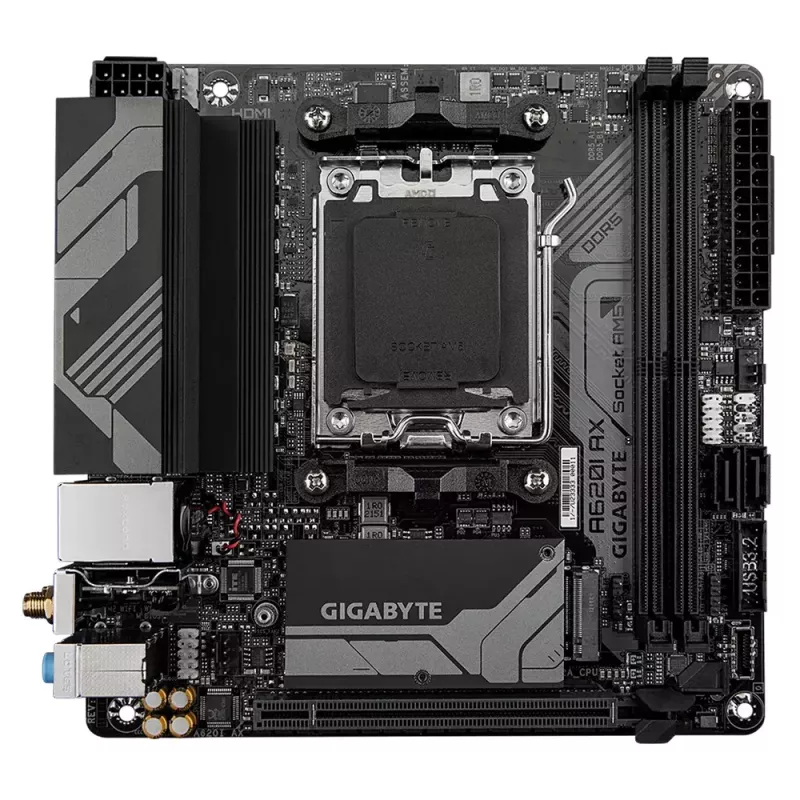

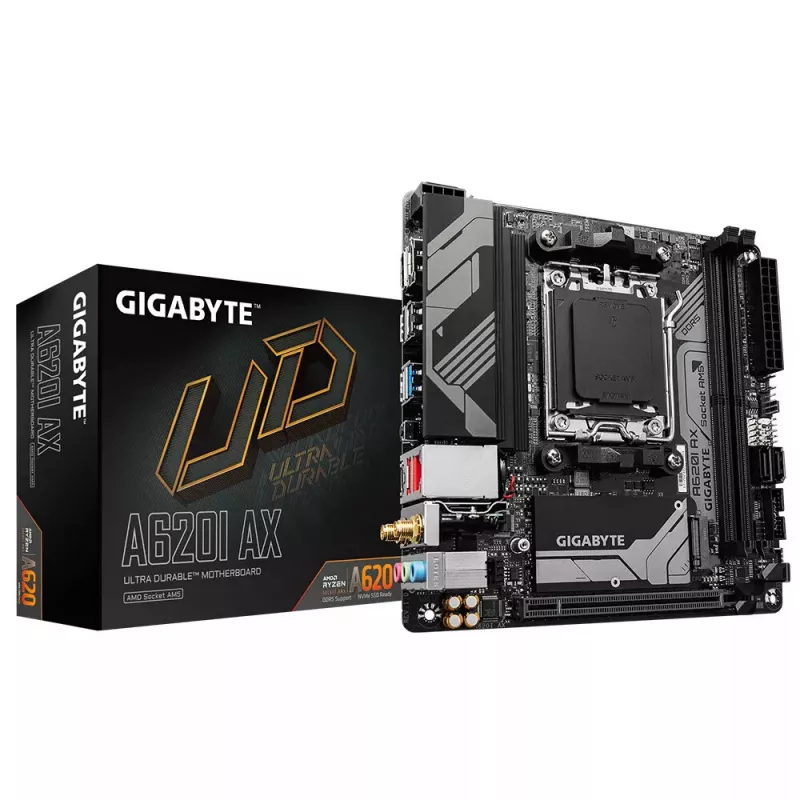

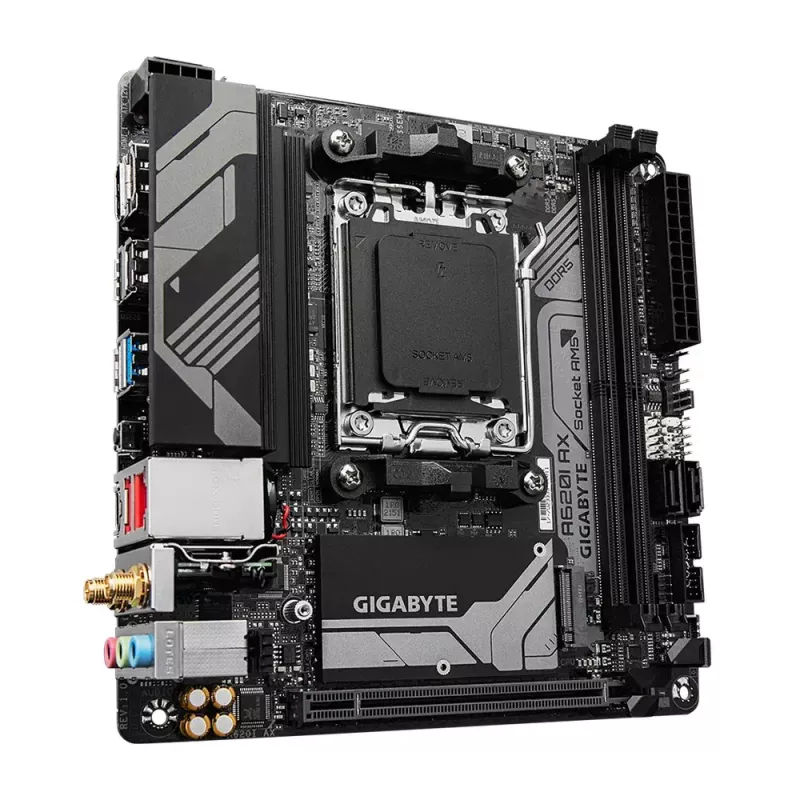

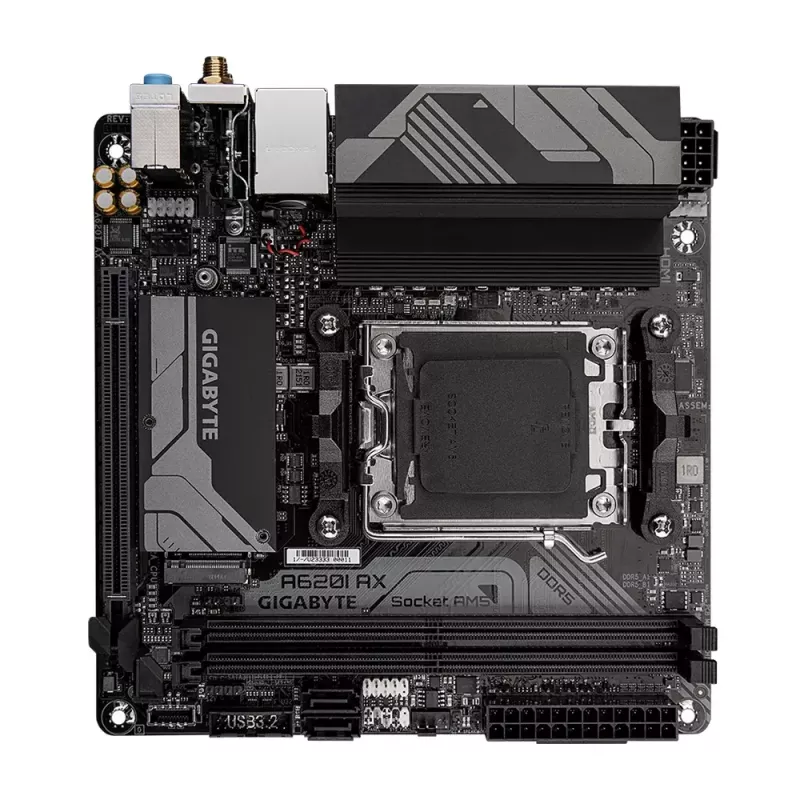

Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX

Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
36 mo.
Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
Motherboard GIGABYTE A620I AX, AMD A620, Socket AM5, Mini-ITX
R2,959
The GIGABYTE A620I AX is a Mini-ITX motherboard built on the AMD A620 chipset for Socket AM5 processors. It supports AMD Ryzen 8000 series CPUs and up to 96 GB of DDR5 memory (two slots, up to 6400 MHz OC). The compact board includes a PCIe 4.0 M.2 slot, integrated Wi‑Fi 6E, 2.5GbE LAN and USB 3.2 G... Read More
Stock 8 Code 118886 Brand GIGABYTE Model A620I AX Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE A620I AX is a Mini-ITX motherboard built on the AMD A620 chipset for Socket AM5 processors. It supports AMD Ryzen 8000 series CPUs and up to 96 GB of DDR5 memory (two slots, up to 6400 MHz OC). The compact board includes a PCIe 4.0 M.2 slot, integrated Wi‑Fi 6E, 2.5GbE LAN and USB 3.2 Gen 2 connectivity, and supports both HDD and SSD storage with RAID 0 and 1 options for performance or redundancy.

Advantages

This Mini-ITX GIGABYTE motherboard combines modern connectivity and small-form-factor compatibility: DDR5 memory support for higher bandwidth, a PCIe 4.0 M.2 slot for fast NVMe storage, onboard Wi‑Fi 6E for low-latency wireless networking, and a 2.5GbE LAN port for faster wired transfers. The 5+2+1 phases digital VRM provides stable power delivery for Ryzen 8000 CPUs, while USB 3.2 Gen 2 ensures high-speed external peripherals.

Suitable for

  • Compact gaming PC builds using Socket AM5 processors
  • Small form factor workstations for content creation and productivity
  • Home or office systems requiring fast wired and wireless networking
  • High-performance mini-ITX systems with NVMe storage

Key specifications

  • Form factor: Mini ITX
  • Chipset: AMD A620
  • CPU socket: Socket AM5 (supports AMD Ryzen 8000 series)
  • Memory: 2× DDR5 slots, up to 96 GB, up to 6400 MHz (OC)
  • Storage: 1× PCIe 4.0 M.2 slot; supports HDD and SSD; RAID 0, RAID 1
  • Networking: Wi‑Fi 6E, 2.5GbE LAN
  • USB: USB 3.2 Gen 2 ports
  • Power delivery: 5+2+1 phases digital VRM

How to use

Install the Socket AM5 CPU and DDR5 modules into their respective sockets following the motherboard manual. Mount the board into a compatible Mini‑ITX case and connect power, storage (M.2 or SATA), and cooling. Configure BIOS settings to enable XMP/OC memory profiles if you plan to run DDR5 at higher frequencies. Install the operating system on the preferred drive and update chipset and network drivers from GIGABYTE to ensure full hardware functionality.

Recommendations

For stable performance with Ryzen 8000 CPUs, use a high-quality CPU cooler and a reliable 2‑8‑pin power supply cable as specified in the motherboard manual. When using high-frequency DDR5 memory, verify memory QVL and enable appropriate BIOS profiles for optimal stability.
Key Highlights
  • AMD Socket AM5:Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
  • Unparalleled Performance:5+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
  • SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
  • EZ-Latch:PCIe x16 Slot with Quick Release Design
  • Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN

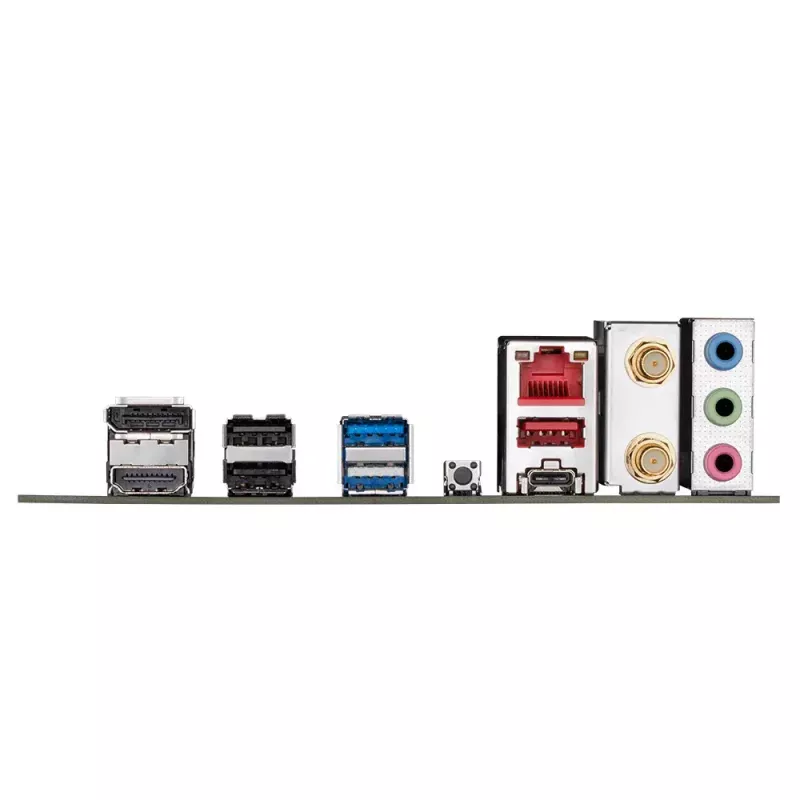

  • Extended Connectivity:DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
  • AMD Socket AM5 AMD Ryzen 7000 Series
  • PC mini ITX AMD A620 7.1 channels
  • DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 3
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
12V power connector
Yes
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio connector
Yes
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton Internet Security
Cables included
SATA
Chassis intrusion connector
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
170 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
3
Height
35 mm
Lithium weight per battery
0.07 g
Maximum internal memory
96 GB
Maximum internal memory supported by processor
96 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD A620
Motherboard chipset family
AMD
Motherboard form factor
mini ITX
Number of battery cells
1
Number of HDDs supported
2
Number of M.2 (M) slots
1
Number of memory slots
2
Number of SATA III connectors
2
Number of storage drives supported
3
Package depth
180 mm
Package height
65 mm
Package weight
860 g
Package width
222 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 slots
1
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
Brown
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1
RAID support
Yes
RGB LED pin header
Yes
Supported memory clock speed (max)
6400 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Total number of SATA connectors
2
Unbuffered memory
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB connector type
USB Type-A, USB Type-C
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Width
170 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
WLAN controller model
Realtek RTL8852CE

Manual

Open Manual

Leaflet

Open Leaflet
