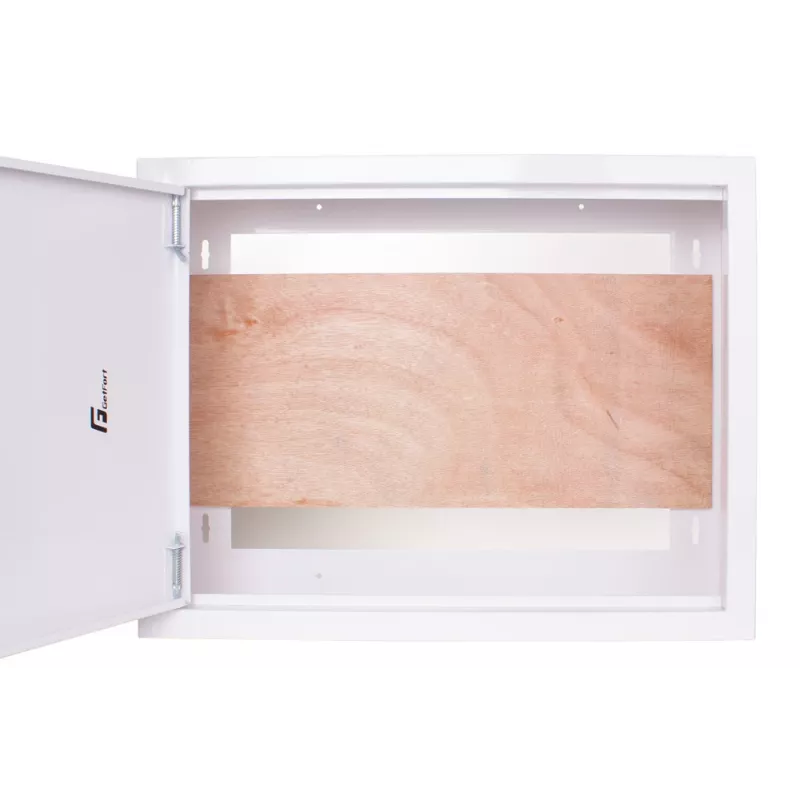

GETFORT TPR-5 Metal Enclosure 520x400x140mm IP54 Light Grey

In industrial automation and telecommunication installations, protecting sensitive components from dust and moisture is critical. The GETFORT TPR-5 metal enclosure provides a robust, IP54-rated housing for DIN rail equipment, terminals, and control modules. Its 520 x 400 x 140 mm dimensions offer ample space for wiring and devices, while the powder-coated steel construction ensures durability in demanding environments.

Key specifications

• Hermetic metal enclosure with IP54 protection against dust and water splashes
• Material: 0.8 mm steel sheet, powder-coated light grey (RAL 7035)
• External dimensions: 520 mm (L) x 400 mm (W) x 140 mm (H)
• Wall-mounted design with key lock (2 keys included)
• Door opening angle: 120° for easy access
• Internal mounting plate made of galvanized steel
• Pre-drilled holes for cable glands on top and bottom
• Earthing point for safe grounding
• Version: v2

Why choose it

The TPR-5 v2 combines a compact footprint with generous internal volume, making it ideal for housing multiple DIN rail modules or larger terminal blocks. The IP54 rating ensures reliable operation in indoor or sheltered outdoor locations, while the key lock prevents unauthorized access. The galvanized mounting plate simplifies component installation, and the pre-drilled cable entries reduce installation time.

Ideal use cases

• Telecommunication distribution points
• Industrial automation control panels
• Alarm and security system enclosures
• IT network equipment housings
• Building management systems

Good to know

The enclosure is supplied with a mounting plate, key lock, and earthing hardware. Cable glands are not included but can be fitted to the pre-drilled holes. For outdoor use, ensure proper sealing of cable entries and mounting to maintain IP54 integrity. The light grey RAL 7035 finish blends well with standard industrial environments.
