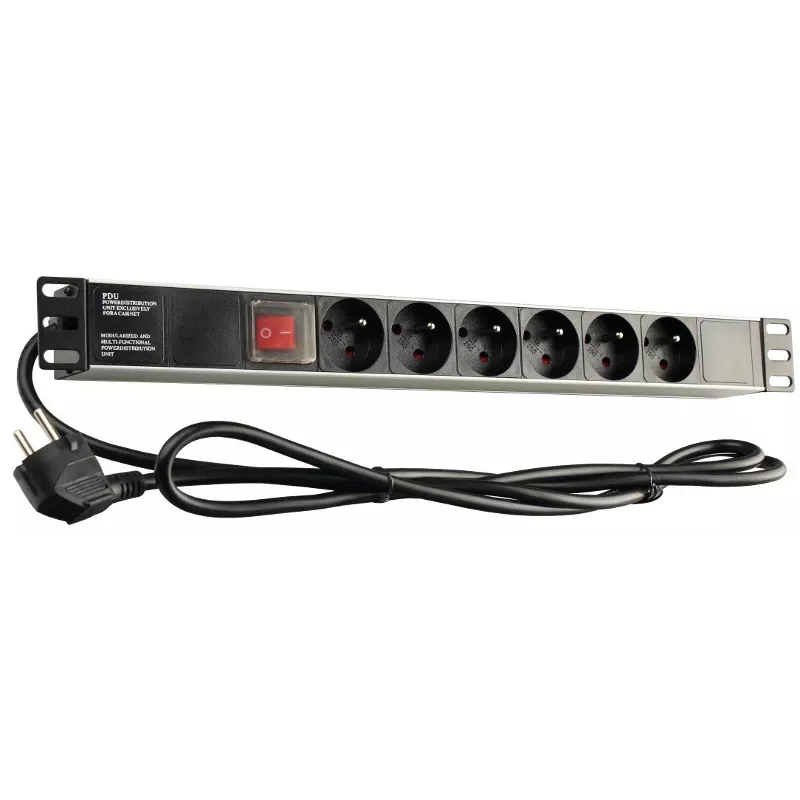

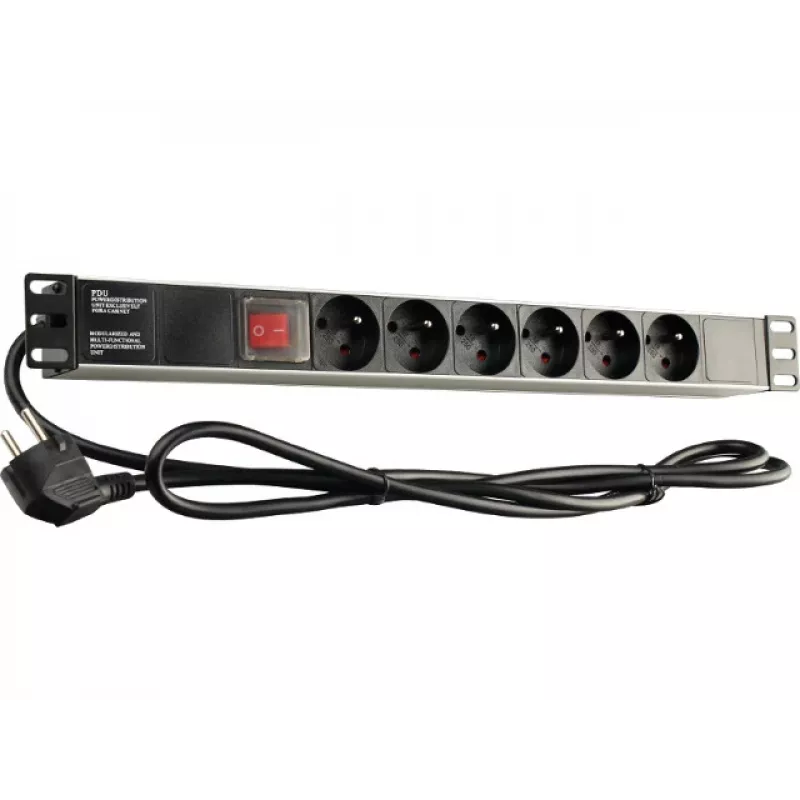

GETFORT LGF-06-Z 19-inch 1U 6-Outlet Schuko Power Distribution Unit (PDU) - 1.8m Cable, 16A, 230V, Black

The GETFORT LGF-06-Z is a robust 19-inch rackmount power distribution unit (PDU) designed for professional server rooms and network cabinets. With 6 Schuko outlets angled at 45 degrees for easy access, this 1U PDU delivers reliable power distribution with overload protection and an illuminated on/off switch. The 1.8-meter H05VV-F 3G1.5mm² cable and reversible mounting brackets ensure flexible installation.

Advantages

Space-saving 1U design fits standard 19-inch racks. 45-degree angled outlets accommodate bulky power adapters without blocking adjacent sockets. Integrated automatic circuit breaker safeguards connected equipment from overcurrent. Illuminated power switch provides clear status indication. Reversible mounting brackets allow front or rear orientation.

Suitable for

• Server racks and network cabinets in data centers
• IT equipment requiring reliable power distribution
• Audio/video and broadcast racks
• Industrial control panels

Key specifications

• Mounting: 19-inch rack, 1U
• Outlets: 6x Schuko (Type F) 45° angled

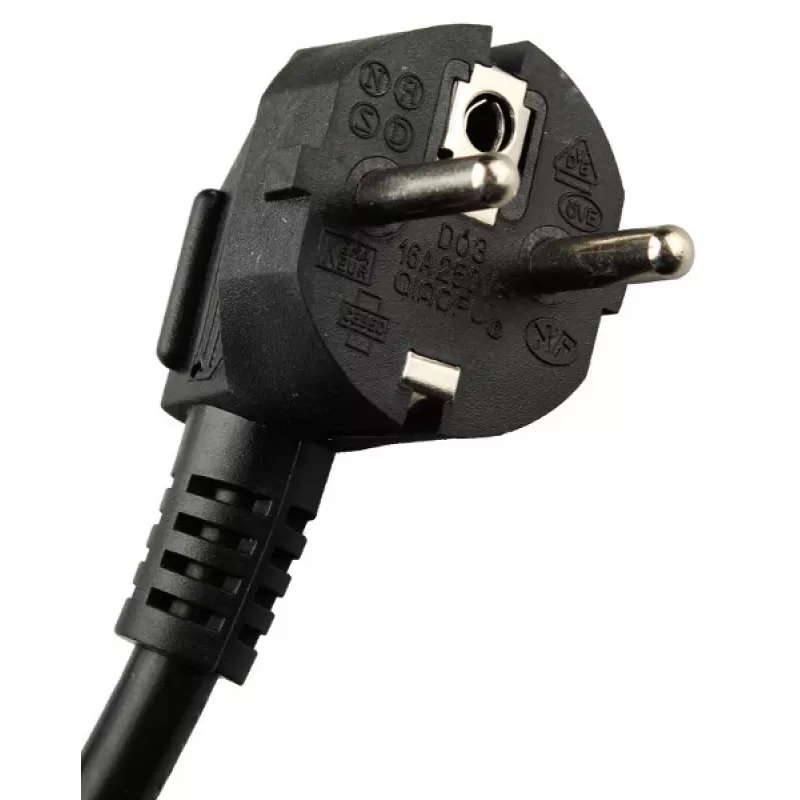

• Input: Schuko (Type F) plug, 1.8m cable
• Rated voltage: 230V AC, 50/60 Hz
• Rated current: 16A
• Max power: 3680W
• Overload protection: Automatic circuit breaker
• On/off switch: Illuminated
• Housing: Aluminum, black
• Mounting brackets: Reversible

Recommendations

For optimal performance, ensure the total connected load does not exceed 3680W. Use with a compatible UPS or direct mains connection. The 45-degree outlets are ideal for power adapters with large transformers.
