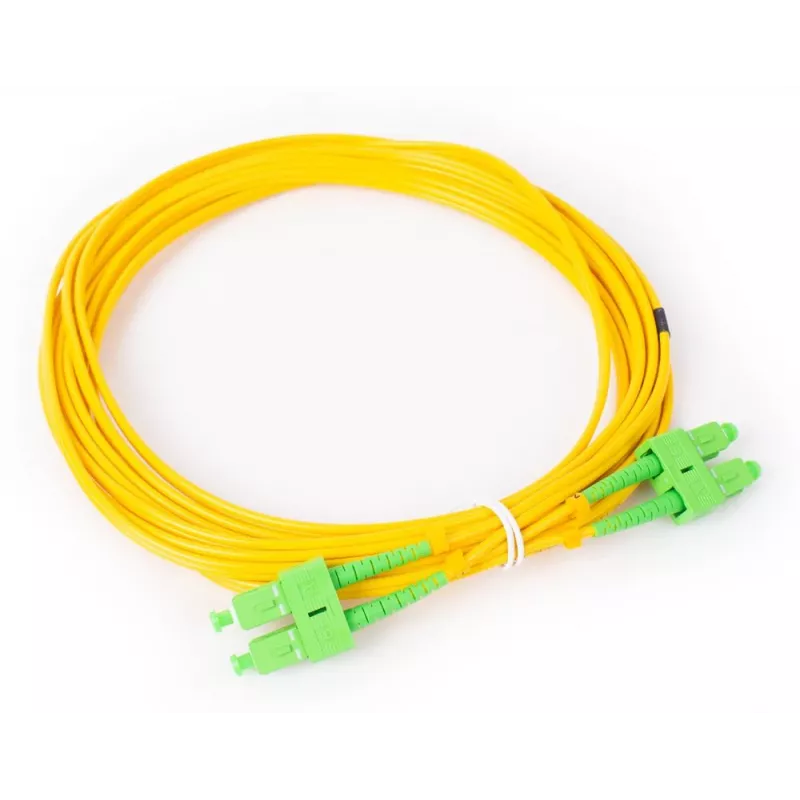

GETFORT GF-SASAD5 Single-Mode Duplex Fiber Patch Cable SC/APC to SC/APC, 5 m

Single-mode duplex fiber patch cable with SC/APC connectors on both ends, delivering low insertion loss and high return loss for stable optical transmission over 5 meters. The yellow PVC jacket and 9/125 µm core ensure reliable performance in FTTH, CATV, and data center applications.

Advantages

Angled physical contact (APC) polishing minimizes back reflections, achieving a return loss of ≥60 dB for superior signal integrity. Zirconia ceramic ferrules guarantee precise alignment and durability, while the duplex configuration supports bidirectional communication over two fibers. The cable operates at 1310 nm and 1550 nm wavelengths, covering standard telecom bands.

Suitable for

• FTTH (Fiber to the Home) installations
• CATV and broadband networks
• Data center interconnects
• Telecommunication backbone links

Key specifications

• Fiber type: Single-mode 9/125 µm
• Connectors: SC/APC to SC/APC, duplex
• Length: 5 meters
• Insertion loss: ≤0.3 dB typical
• Return loss: ≥60 dB
• Jacket: PVC (OFNR), yellow, 3.0 mm diameter
• Bend radius: minimum 30 mm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For best performance, avoid exceeding the minimum bend radius and keep connectors clean. Use with APC-compatible adapters and test with a light source and power meter for verification.
