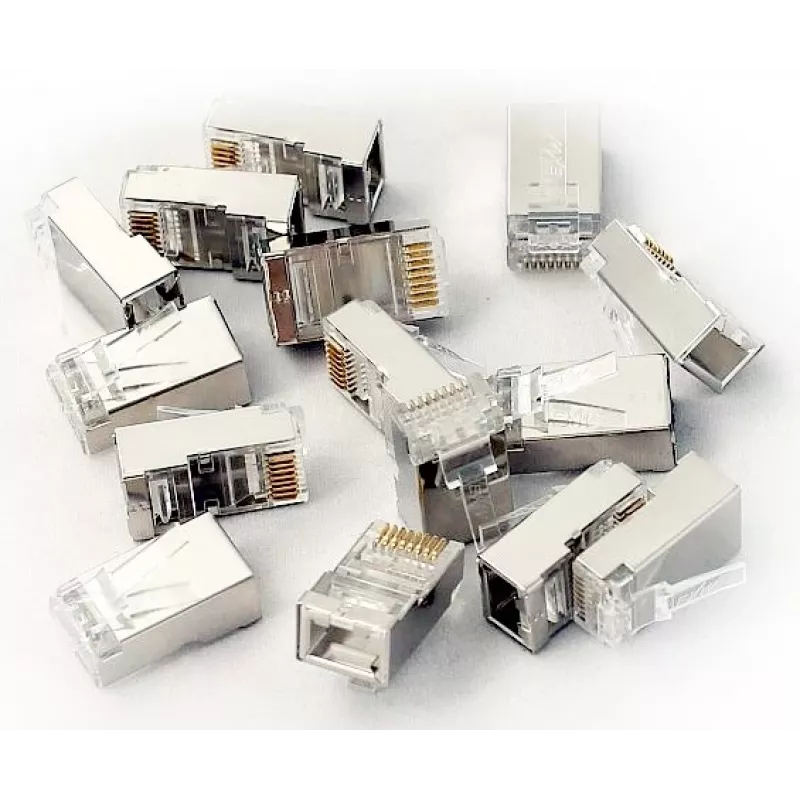

GEMBIRD Digitus X-ML-6AF-IMP RJ45 Cat.6A Shielded Tool-Free Connector Grey

The GEMBIRD Digitus X-ML-6AF-IMP is a high-performance RJ45 connector designed for reliable 10 Gigabit Ethernet connections. This Cat.6A shielded (STP/FTP) connector features a tool-free assembly mechanism, making installation quick and easy without special tools. The robust zinc die-cast housing with nickel plating ensures durability and excellent EMI protection. Ideal for structured cabling in data centers, offices, and industrial environments.

Advantages

Tool-free installation saves time and reduces labor costs. Shielded design minimizes electromagnetic interference for stable data transmission. Supports Power over Ethernet (PoE, PoE+, 4PPoE) for powering devices like IP cameras and access points. Reusable up to 10 cycles for flexibility in network changes.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Industrial Ethernet applications
• High-speed data transmission up to 10 Gbps

Key specifications

• Connector Type: RJ45 Plug
• Category: Cat.6A (Class EA)
• Shielding: Shielded (STP/FTP)
• Assembly: Tool-free
• Contact Plating: Gold-plated (50µm)
• Housing: Zinc die-cast, nickel-plated
• Wire Compatibility: Solid and stranded
• Wire Gauge: AWG 22/1 - 26/1 (solid), AWG 22/7 - 26/7 (stranded)
• Cable Diameter: 6.0 - 9.0 mm
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3at/af/bt)
• Color: Grey
• Number of Contacts: 8P8C
• Transmission Speed: Up to 10 Gigabit Ethernet (10GBase-T)
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA 568-C.2
• Operating Temperature: -10°C to +60°C
• Reusability: Up to 10 cycles

Recommendations

For optimal performance, use with Cat.6A shielded cables and ensure proper grounding. Suitable for both solid and stranded wire installations.
