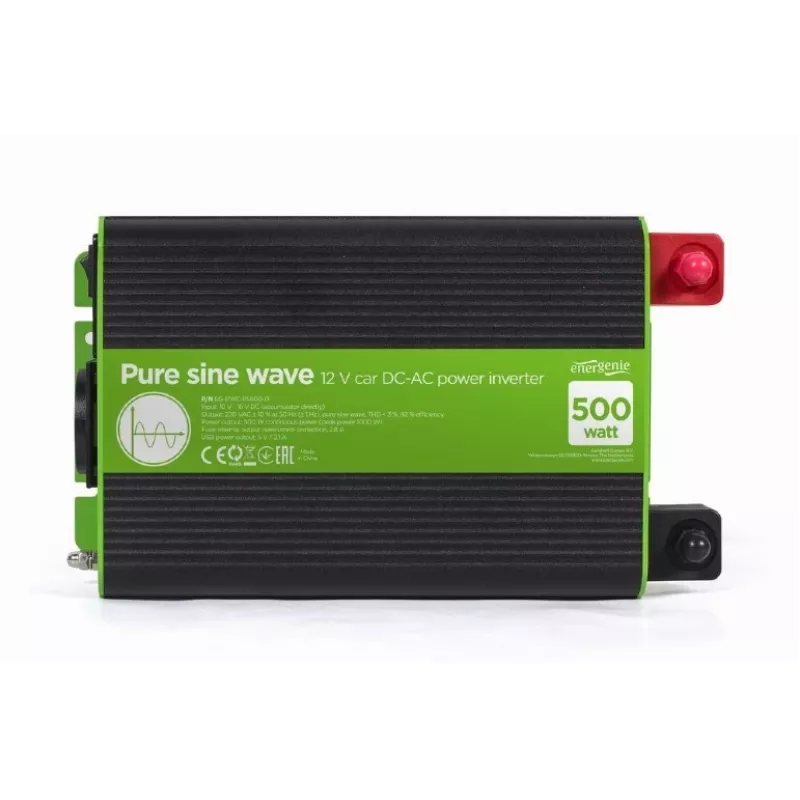

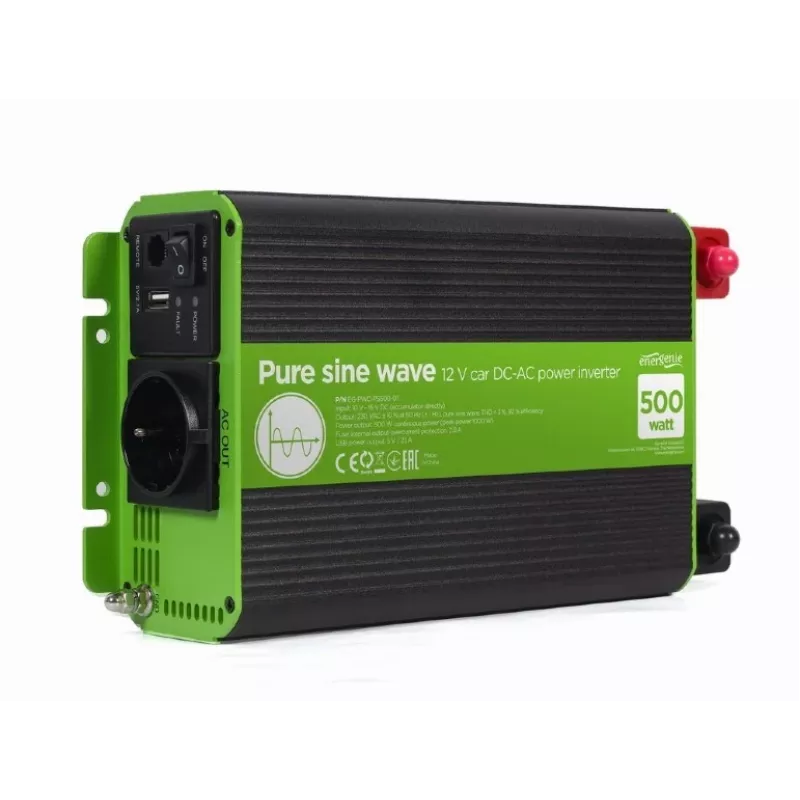

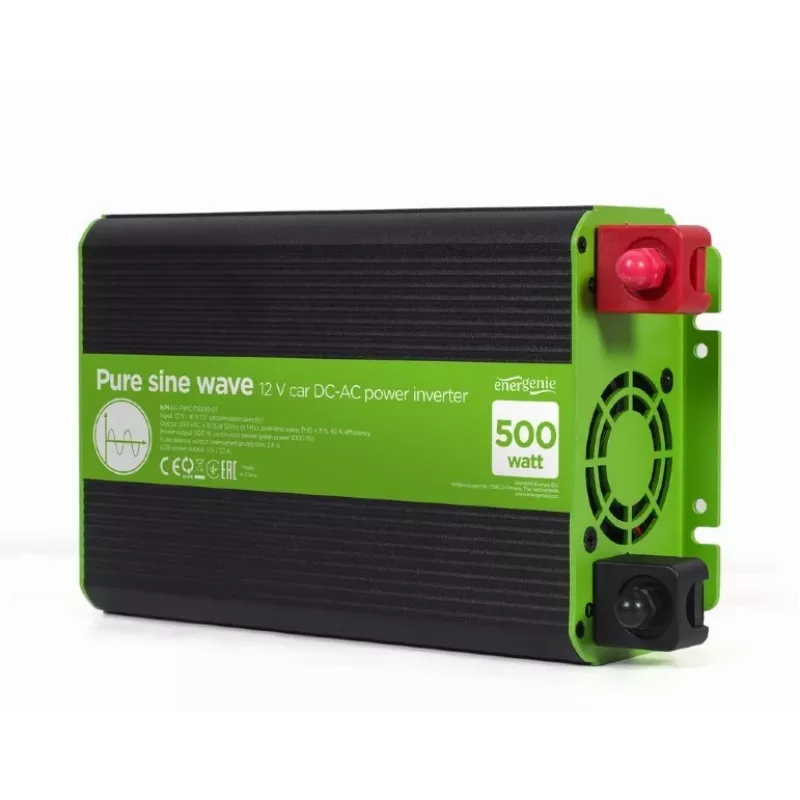

Gembird 12V to 230V Pure Sine Wave Power Inverter 500W

The Gembird EG-PWC-PS500-01 is a high-quality pure sine wave power inverter that converts 12V DC battery power to 230V AC, delivering 500W continuous power (1000W peak). Ideal for use in cars, boats, caravans, and off-grid systems, it ensures clean and stable power for sensitive electronics.

Advantages

Pure sine wave output ensures compatibility with sensitive devices such as laptops, medical equipment, and audio/video gear. Smart fan cooling reduces noise and extends lifespan. Multiple protections (overload, short circuit, over-temperature, low/high voltage) provide safe operation.

Suitable for

• Car, RV, boat, and truck power systems
• Off-grid solar setups
• Emergency backup power
• Powering sensitive electronics requiring pure sine wave

Key specifications

• Input Voltage: DC 12V (10.5V - 15.5V range)
• Output Voltage: AC 230V
• Output Waveform: Pure Sine Wave
• Continuous Power: 500W
• Peak Power: 1000W (0.3s)
• Output Frequency: 50Hz ± 1Hz
• Efficiency: >85%
• Output Sockets: 1x Schuko (Type F)
• Protections: Overload, Short circuit, Over-temperature, Low/High input voltage
• Cooling: Smart fan
• Total Harmonic Distortion (THD): <3%
• Low Voltage Alarm: 10.5V ± 0.5V
• Low Voltage Shutdown: 10V ± 0.5V
• High Voltage Shutdown: 15.5V ± 0.5V
• No-load Current: <0.8A
• Input Connection: Battery clamps
• Casing Material: Aluminum alloy

Recommendations

For best performance, connect directly to a 12V battery with adequate capacity. Ensure proper ventilation for cooling. Not suitable for inductive loads exceeding 500W continuous.
