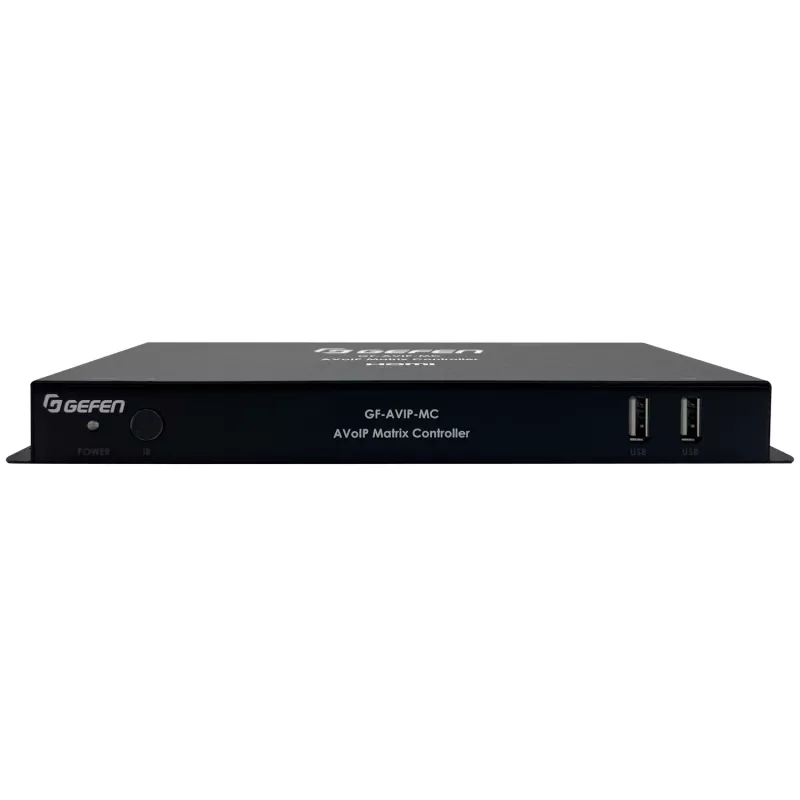

Gefen AVoIP Matrix Controller GF-AVIP-MC

The Gefen AVoIP Matrix Controller GF-AVIP-MC is a centralized control unit for managing AVoIP (Audio Video over IP) systems. It enables seamless matrix switching, video wall configuration, KVM control, and routing of audio and video signals across a network. Compatible with Gefen AVoIP KVM and Video over IP products, this controller provides a unified interface for system management via Ethernet, RS-232, or IR.

Advantages

Centralized control simplifies complex AVoIP installations. Supports multiple control interfaces for flexible integration. Field-upgradable firmware ensures long-term compatibility. Compact metal chassis with surface-mount brackets for easy deployment.

Suitable for

• Professional AV installations requiring matrix switching over IP
• Video wall and KVM applications in control rooms, education, and corporate environments
• Integration with third-party control systems via TCP/IP

Key specifications

• Control Interfaces: Ethernet (RJ-45), RS-232 (DB-9), IR (3.5mm jack)
• Network: 1x 10/100/1000Base-T Ethernet port
• Compatibility: Gefen AVoIP KVM and Video over IP products (e.g., EXT-UHDV-LAN, EXT-UHDV-LAN-LT, EXT-UHDV-LAN-SC)
• Control Features: Matrix switching, Video Wall, KVM, Routing, Presets
• Control Software: Gefen Syner-G software, Web GUI, Third-party control systems
• Power Supply: 5V DC, 2.6A (external power adapter included)
• Power Consumption: 13W (max)
• Mounting: Surface mountable (brackets included)
• Firmware: Field-upgradable via USB or IP
• Connectors: 1x RJ-45 (Ethernet), 1x DB-9 (RS-232), 1x 3.5mm mini-stereo jack (IR In), 1x 3.5mm mini-stereo jack (IR Out), 1x USB Mini-B (Service), 1x 5.5mm/2.1mm DC Power Jack
• LED Indicators: Power, Link/Activity
• Chassis Material: Metal
• Operating Temperature: 0 to +40 °C (32 to +104 °F)
• Operating Humidity: 5% to 90% RH, non-condensing
• Control Protocol: TCP/IP
• Compliance: CE, FCC, RoHS

Recommendations

For optimal performance, use with Gefen AVoIP extenders and switches. Ensure network infrastructure supports multicast and IGMP snooping.
