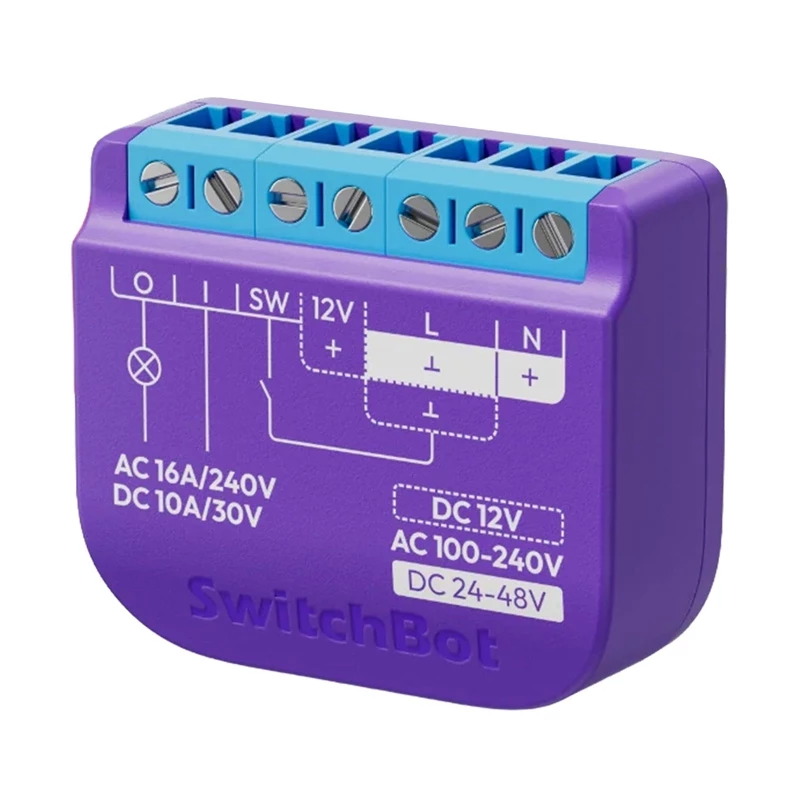

Garage Door Controller SwitchBot W5502330 — Smart Home automation accessory for remote control and integration

The SwitchBot Intelligent Garage Door Controller converts a conventional garage door into a smart home device compatible with major platforms. Matter certification enables integration with Apple Home, Google Home, Alexa and SmartThings. A built-in Bluetooth repeater increases range and can link multiple SwitchBot units for centralized management of the garage and nearby devices.

Advantages

The controller installs without replacing the existing drive by using a dry contact interface, making it compatible with over 1,600 garage opener models from brands such as LiftMaster, Chamberlain and Craftsman. It supports remote control via the SwitchBot app, voice assistants (Siri, Alexa, Google Assistant), Bluetooth offline access and Apple CarPlay. Included door sensor provides real-time status monitoring, notifications and event history for improved security. Family Sharing lets household members access the gate from their own smartphones.

Key specifications

• Manufacturer: SwitchBot
• Type: Intelligent garage door controller (Dry Contact 16A)
• Connectivity: Bluetooth, Wi‑Fi
• Compatibility: Matter, Apple Home, Google Home, Alexa, Samsung SmartThings, IFTTT, Siri Shortcuts, Home Assistant
• Bluetooth support: Up to 2 SwitchBot devices per controller
• Bluetooth repeater range: Up to 10 SwitchBot devices
• Number of supported gateway models: More than 1600
• Compatible brands: LiftMaster, Chamberlain, Craftsman (up to 5 Learn buttons)
• Features: Voice control, mobile app, schedules, timers, notifications, status monitoring, event log, intruder detection, automatic locking, Family Sharing
• Power supply: USB (adapter included)
• Installation: Dry contact system, installation without drive replacement
• Certifications: CE, FCC, RoHS
• Included: SwitchBot smart controller; USB adapter with cable; mounting screws; 3M adhesive tapes; door sensor with cable; signal control (test) cable

How to use

Mount the controller near the garage motor and connect the signal control cable to the motor terminals using the included test cable; no drive replacement is required. Attach the door sensor to monitor open/closed status and connect power via the supplied USB adapter. Complete compatibility verification in the SwitchBot app, then configure voice assistant integration, schedules and Family Sharing as needed. Use the app, voice commands or Apple CarPlay to open and close the garage, and check event history and notifications for security monitoring.

Recommendations

Verify your garage opener model against the supported list before installation and use the included test cable to confirm compatibility. Place the controller and sensor where they are protected from direct moisture and extreme temperatures. For stable remote access and feature set, connect the device to a reliable Wi‑Fi network and keep the SwitchBot app updated.
