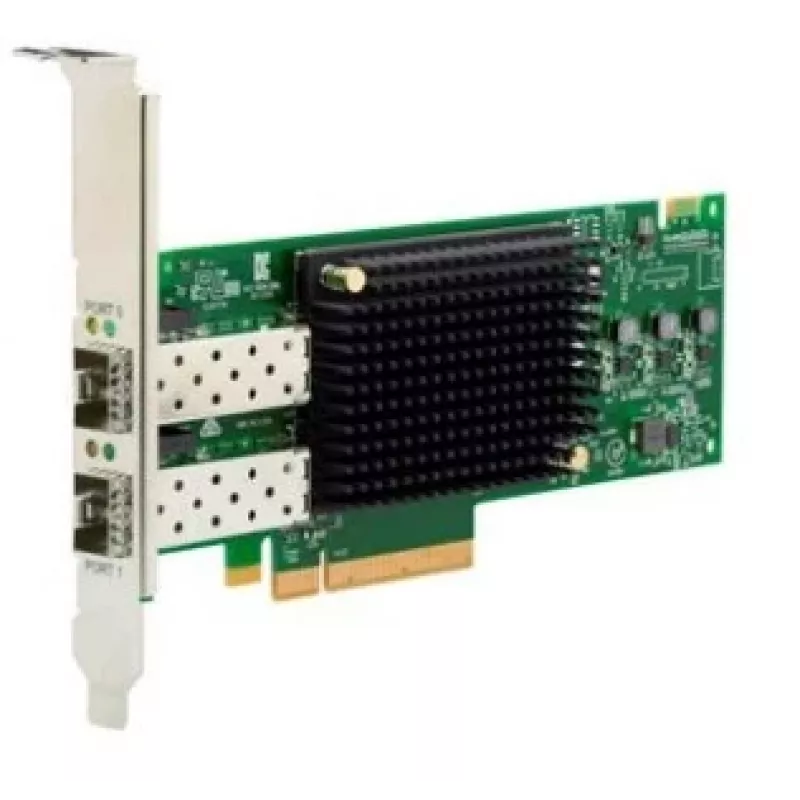

Fujitsu Emulex LightPulse LPe31002-M6-F Host Bus Adapter - 2 x 16Gb Fibre Channel, PCIe 3.0 x8, Low Profile

The Fujitsu Emulex LightPulse LPe31002-M6-F is a high-performance, dual-port 16Gb Fibre Channel Host Bus Adapter (HBA) designed for enterprise data centers and demanding storage environments. It delivers exceptional throughput and reliability for connecting servers to Fibre Channel storage area networks (SANs).

Advantages

With support for PCI Express 3.0 x8 interface and 16 Gbps per port, this HBA provides up to 3200 MB/s full-duplex bandwidth, ensuring fast and efficient data transfers. Advanced virtualization features like SR-IOV and NPIV enhance resource utilization and scalability. The adapter is backed by Emulex's proven reliability and comprehensive management tools.

Suitable for

• Enterprise servers requiring high-speed Fibre Channel connectivity
• Virtualized environments with VMware ESXi, Microsoft Hyper-V, or Linux KVM
• Mission-critical applications such as databases, ERP, and data analytics
• Storage area networks (SANs) with 16Gb, 8Gb, or 4Gb Fibre Channel switches

Key specifications

• Device Type: Host Bus Adapter (HBA)
• Form Factor: Plug-in Card (PCIe Low Profile compatible)
• Host Interface: PCI Express 3.0 x8
• Ports: 2 x 16Gb Fibre Channel
• Data Transfer Rate: 16 Gbps per port (3200 MB/s full-duplex)
• Controller: Emulex LightPulse LPe31002
• Connector Type: LC SFP+
• Fibre Channel Topology: Point-to-Point, Arbitrated Loop, Switched Fabric
• Power Consumption: 10.8 W (typical)
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -40°C to 70°C
• Operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 1,500,000 hours
• Compliance: RoHS, WEEE, FCC, CE, UL

Recommendations

For optimal performance, pair this HBA with 16Gb Fibre Channel switches and use high-quality LC-LC fiber optic cables. Ensure your server has an available PCIe 3.0 x8 or higher slot. The included low-profile bracket allows installation in 2U or smaller chassis.
