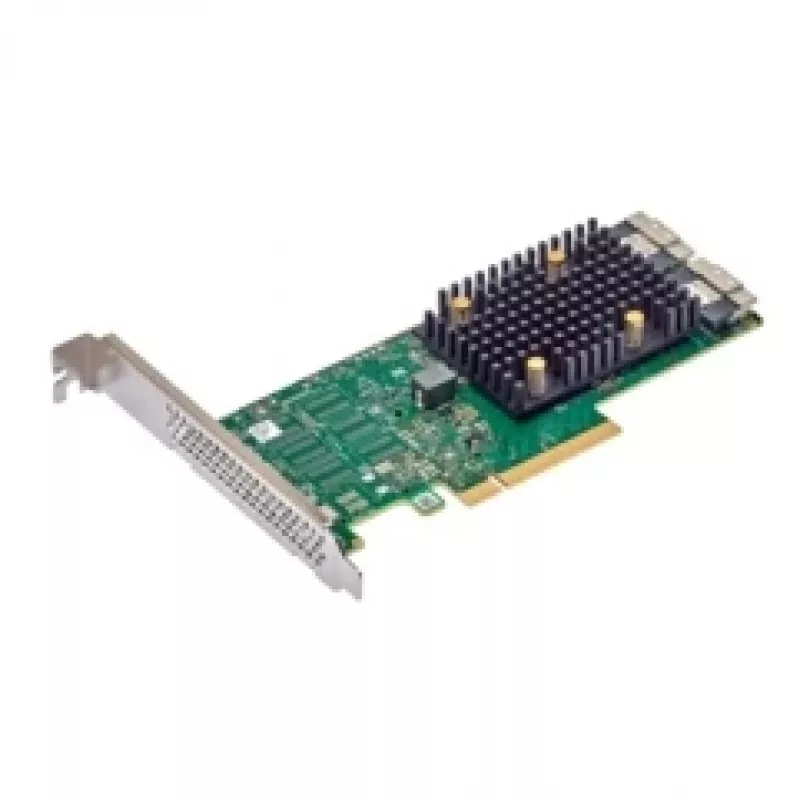

BROADCOM 9500-16i Pci-e Gen 4.0 Tri-mode Storage Hba

BROADCOM 9500-16i Pci-e Gen 4.0 Tri-mode Storage Hba
36 mo.
BROADCOM 9500-16i Pci-e Gen 4.0 Tri-mode Storage Hba
R16,217
Create endless design flexibility with Tri-Mode connectivity and NVMe performance benefits with PCIe 4.0 HBAThe high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.With increased bandwidth and IOPS performan... Read More
Stock 2 Code 115703 Brand BROADCOM Model 05-50134-00 Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Create endless design flexibility with Tri-Mode connectivity and NVMe performance benefits with PCIe 4.0 HBA
The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.

Key Highlights
  • Connects up to 1024 SAS/SATA devices or 32 NVMe devices
  • Provides maximum connectivity and performance for high-end servers and applications
  • Support critical applications with the bandwidth of PCIe® 4.0 connectivity
  • Universal Bay Management (UBM) Ready
Specifications
Certification
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Compliance certificates
RoHS
Data transfer rate (max)
12 Gbit/s
Depth
68 mm
Expansion card form factor
Full-height / Low-profile
Harmonized System (HS) code
84733020
Host interface
PCIe
Internal
Yes
Linux operating systems supported
Yes
Mean time between failures (MTBF)
5000000 h
NVMe
Yes
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 55 °C
Other operating systems supported
Yes
Output interface
SAS, SATA
Plug and Play
Yes
Power consumption (typical)
8.9 W
Product colour
Green, Grey
Quantity
1
Width
155 mm
Windows operating systems supported
Yes

Leaflet

Open Leaflet
