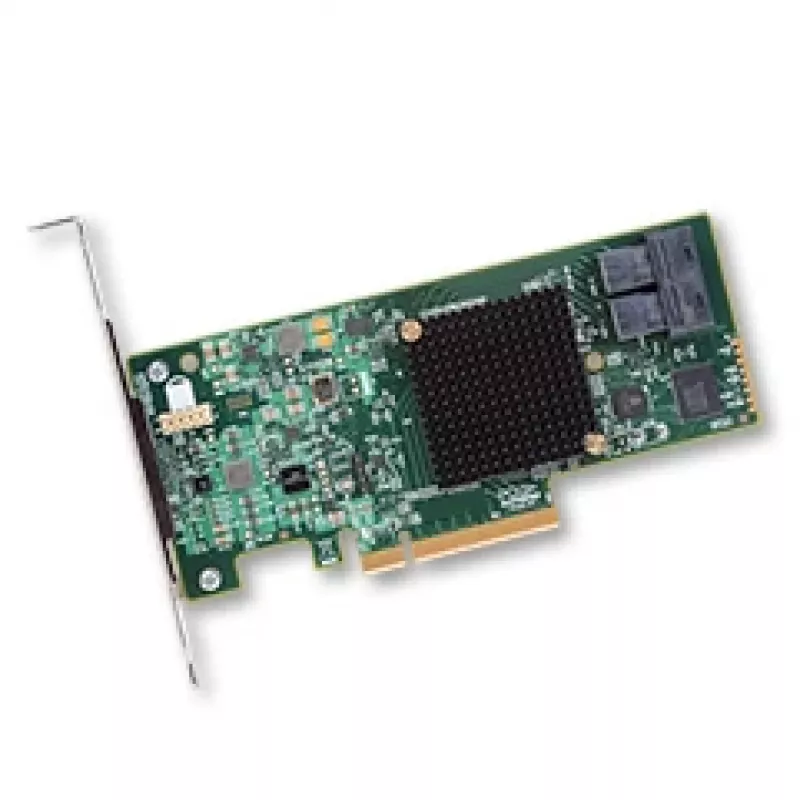

BROADCOM SAS 9300-8i Single Pack 8-port 12gb/s SAS Pci-e

BROADCOM SAS 9300-8i Single Pack 8-port 12gb/s SAS Pci-e
BROADCOM SAS 9300-8i Single Pack 8-port 12gb/s SAS Pci-e
R5,107
Demanding applications may require dozens of internal drives servicing thousands of users. The SAS 9300-8i 12Gb/s SAS Host Bus Adapter provides bandwidth for critical applications in 1U/2U servers and workstations. Support for both SAS and SATA drives gives flexibility in designing storage architect... Read More
Stock 4 Code 132274 Brand BROADCOM Model H5-25573-00 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Demanding applications may require dozens of internal drives servicing thousands of users. The SAS 9300-8i 12Gb/s SAS Host Bus Adapter provides bandwidth for critical applications in 1U/2U servers and workstations. Support for both SAS and SATA drives gives flexibility in designing storage architectures and helps protect existing infrastructure investments.

- Connect up to 1024 SAS and SATA devices with 8 internal 12Gb/s SAS and SATA ports
- Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included)
- Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity

Key Highlights
  • Internal
  • Host interface: PCIe
  • Output interface: SAS, SATA
  • 12 Gbit/s
  • Green, Grey
Specifications
Built-in processor
Yes
Certification
EMC: Class B-US (CFR 47, P15B); ICES-00; V-3/02.04; EN55022/EN55024; AS/NZS 3548; N-B 2-0001-404; EN60950; WEEE
Compliance certificates
RoHS
Connector(s)
2 x Mini SAS HD SFF8643
Data transfer rate (max)
12 Gbit/s
Depth
152.4 mm
Harmonized System (HS) code
84733020
Host interface
PCIe
Interface
8 x SAS & SATA Internal
Internal
Yes
Linux operating systems supported
Yes
Mean time between failures (MTBF)
2800000 h
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 55 °C
Output interface
SAS, SATA
Processor model
LSI SAS3008
Product colour
Green, Grey
Storage temperature (T-T)
-45 - 105 °C
Voltage
3.3, 12 V
Width
66 mm
Windows operating systems supported
Yes
