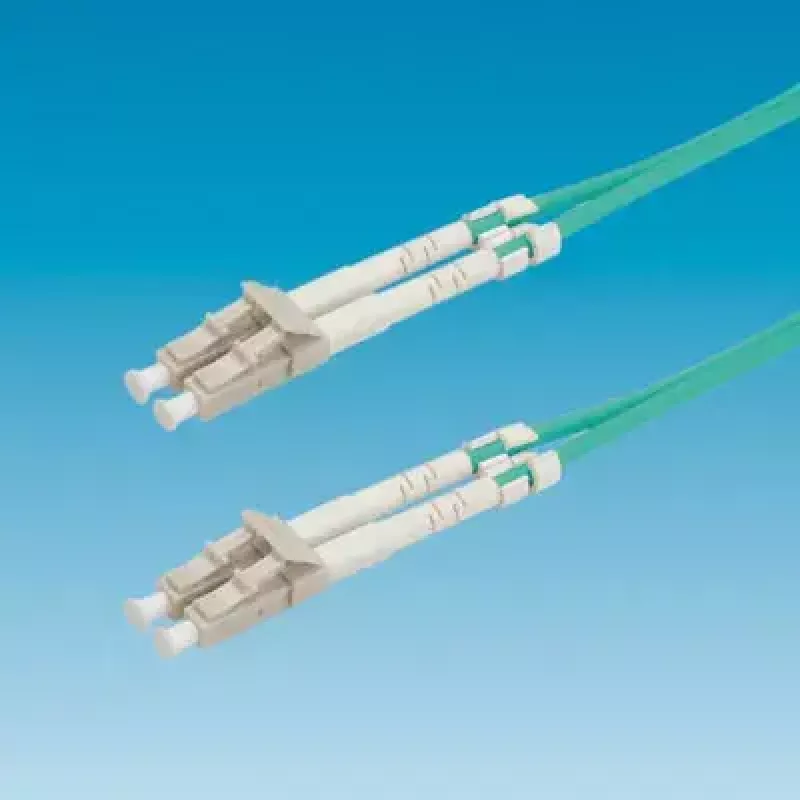

FO Jumper Cable ROLINE 50/125µm OM3 LC/LC Low-Loss 10m

FO Jumper Cable ROLINE 50/125µm OM3 LC/LC Low-Loss 10m is a 10 m duplex multimode fiber patch cable with OM3 fibers (50/125 µm) and LC connectors on both ends. The cable is designed for high-bandwidth network applications and manufactured to ROLINE quality standards to provide low insertion loss and reliable optical performance.

Advantages

The use of OM3 multimode fiber and low-loss LC connectors results in significantly lower insertion loss and better reflection values compared with standard connectors. Material selection and assembly follow ROLINE quality processes to ensure consistent performance across installs. Typical attenuation is around 0.15 dB for low-loss LC connectors versus 0.5 dB for standard LC connectors.

Suitable for

• Data center patching and interconnects
• High-speed LAN backbone connections
• Server to switch fiber links
• Short-reach multimode optical links (up to OM3 specifications)

Key specifications

• Fiber type: Multimode 50/125 µm, OM3
• Connector type: LC/LC duplex
• Connector loss (typical): low-loss LC ~0.15 dB
• Cable length: 10 m
• Color: turquoise
• Brand / MPN: ROLINE / 21.15.8828
• EAN: 7611990120031

How to use

Connect each LC connector to the corresponding LC port on your network equipment, ensuring correct orientation for duplex transmission. Avoid sharp bends and secure the cable to prevent strain; follow standard fiber handling practices to keep connector end-faces clean. Test the link after installation to verify insertion loss and signal integrity.

Recommendations

Use low-loss LC connectors in environments where reduced insertion loss and improved reflection values are required. For best results, clean connector end-faces before mating and avoid exceeding the cable's bend radius; store and route the cable in suitable trays or conduits to maintain performance.
