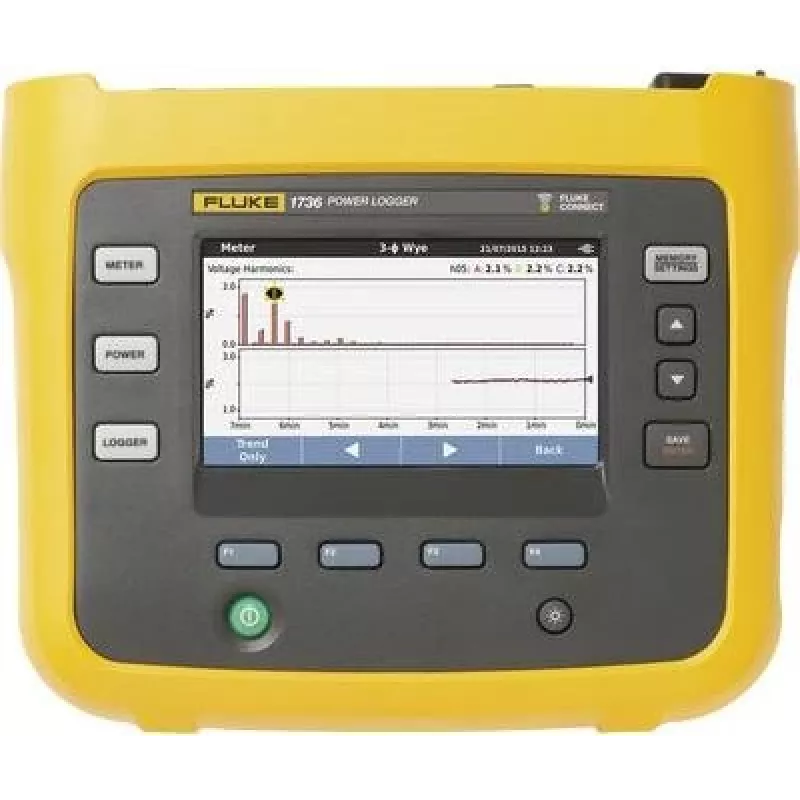

Fluke 1736/B Three-Phase Power Quality Logger with Logging Function 4563561

Electrical engineers and maintenance technicians use the Fluke 1736/B to monitor and log three-phase power quality in industrial plants, commercial buildings, and utility substations. This portable logger captures voltage, current, power, energy, harmonics, and other parameters to identify issues like voltage sags, swells, and unbalance.

Key specifications

• Three-phase power quality logger with 4 voltage inputs (3 phase + neutral) and 3 current inputs
• Voltage measurement range up to 1000 V RMS, current up to 1500 A AC with iFlex 1500 probes
• Frequency range 42.5 Hz to 69 Hz, harmonics up to 50th order
• 8 GB internal flash memory, logging duration over 1 year (typical configuration)
• 4.3-inch color LCD display, USB-A, USB-B, Wi-Fi, Bluetooth (Fluke Connect) connectivity
• Safety rating CAT IV 600 V / CAT III 1000 V, IP50 ingress protection
• Rechargeable Li-ion battery with over 4 hours life, includes Fluke Energy Analyze Plus software

Why choose it

The Fluke 1736/B delivers comprehensive power quality data with high accuracy and reliability. Its intuitive interface and Fluke Connect compatibility allow for remote monitoring and data sharing, streamlining analysis and reporting.

Ideal use cases

• Energy audits and load studies in commercial and industrial facilities
• Power quality troubleshooting for voltage disturbances and harmonics
• Verification of electrical system performance and compliance

Good to know

This model is a three-phase power quality logger with logging function, based on the supplier's designation. It is designed for professional use in demanding electrical environments.
