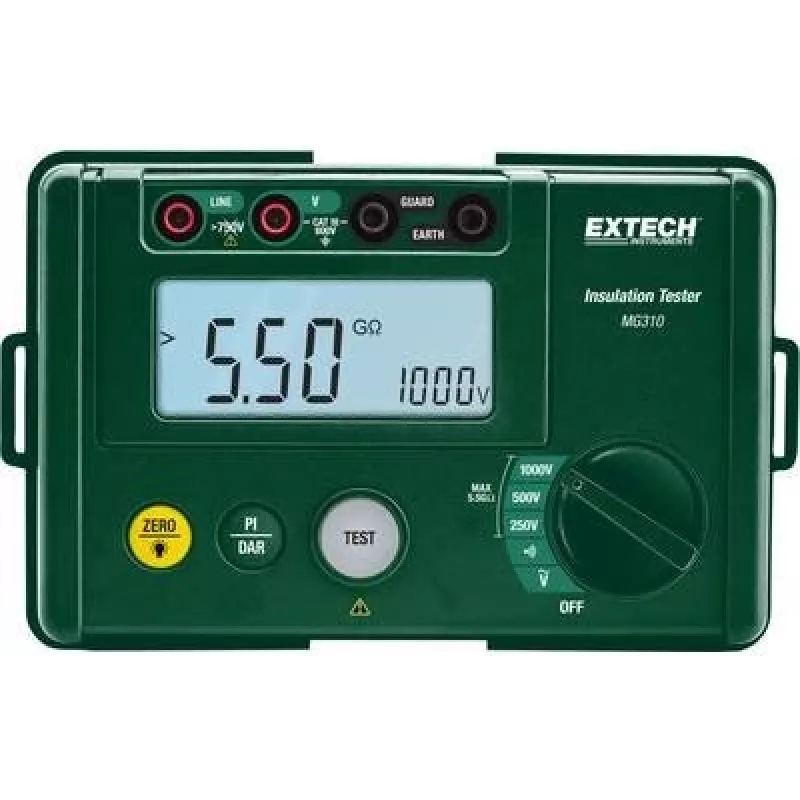

Extech MG310 Insulation Tester 250V 500V 1000V 5.5 GΩ

Extech MG310 Insulation Tester 250V 500V 1000V 5.5 GΩ
Extech MG310 Insulation Tester 250V 500V 1000V 5.5 GΩ
R6,311
The Extech MG310 insulation tester delivers test voltages of 250V, 500V, and 1000V with insulation resistance measurement up to 5.5 GΩ, making it a robust choice for professional electrical maintenance and troubleshooting.OverviewThis insulation measuring device is engineered for evaluating the inte... Read More
Stock 2 Code 3528347 Brand EXTECH Model MG310 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The Extech MG310 insulation tester delivers test voltages of 250V, 500V, and 1000V with insulation resistance measurement up to 5.5 GΩ, making it a robust choice for professional electrical maintenance and troubleshooting.

Overview

This insulation measuring device is engineered for evaluating the integrity of electrical insulation in motors, cables, transformers, and switchgear. It offers three selectable test voltages to accommodate various insulation classes and application requirements.

What stands out

  • Insulation resistance range: 0.001 MΩ to 2000 MΩ (2 GΩ) with basic accuracy of ±(3% + 5 digits)
  • Measures AC/DC voltage from 0.1V to 600V and resistance from 0.01 Ω to 20 kΩ
  • Continuity test with audible buzzer (<35Ω)
  • Polarization Index (PI) and Dielectric Absorption Ratio (DAR) for advanced insulation diagnostics
  • Backlit LCD display for clear readings in dim environments
  • Safety rated CAT IV 600V for use on primary supply circuits
  • Powered by 6 AA batteries with auto power off and data hold

Technical details

  • Test voltages: 250V, 500V, 1000V
  • Insulation resistance range: 0.001 MΩ to 2000 MΩ (2 GΩ)
  • Basic insulation resistance accuracy: ±(3% + 5 digits)
  • AC voltage range: 0.1V to 600V
  • DC voltage range: 0.1V to 600V
  • Resistance range: 0.01 Ω to 20 kΩ
  • Continuity test: Yes, with audible buzzer (<35Ω)
  • Polarization Index (PI): Yes
  • Dielectric Absorption Ratio (DAR): Yes
  • Display type: Backlit LCD
  • Safety rating: CAT IV 600V
  • Power source: 6 x 1.5V AA batteries
  • Auto power off: Yes
  • Data hold: Yes
  • Min/Max function: Yes
  • Enclosure type: Double molded housing
  • Operating temperature: 0 to 40°C (32 to 104°F)
  • Included accessories: Test leads, alligator clips, carrying case, batteries

Our verdict

The Extech MG310 is a versatile and reliable insulation tester suitable for both preventive maintenance and troubleshooting. Its multiple test voltages, PI/DAR capability, and rugged design make it a valuable tool for electricians and technicians.

Specifications
Backlight display
Yes
Batteries included
Yes
Battery technology
Alkaline
Battery type
AA
Battery voltage
1.5 V
Brand
Extech
Built-in display
Yes
Category
Insulation Tester
Current test interval
Not specified
Display type
LCD
EAN
793950380109
Manual
Yes
Model
MG310
MPN
MG310
Number of batteries supported
6
Power test range
0.001 MΩ to 2000 MΩ (insulation), 0.1V to 600V (AC/DC), 0.01 Ω to 20 kΩ (resistance)
Test type
Insulation Resistance, AC Voltage, DC Voltage, Resistance, Continuity
Weight
0.7 kg
