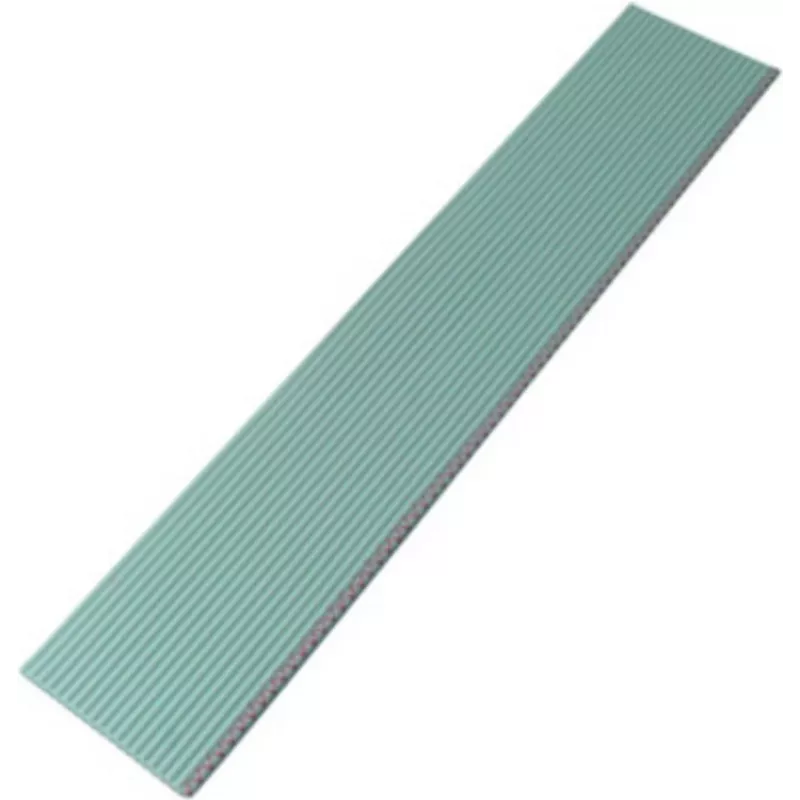

Flat Cable ShiverPeaks 11500020 30.5 m 20-core

Flat cable ShiverPeaks 11500020 is a 30.5 m, 20-core multi-conductor cable engineered for installations where a low-profile, flat wiring solution is required. The cable provides twenty parallel conductors in a single flat assembly, enabling multiple signal or low-voltage power runs without the bulk of round multi-core bundles. Its flat geometry makes it suitable for routing through narrow channels, under flooring, inside control panels, and behind mounting rails where space is limited.

Advantages

The flat construction reduces overall cable height and simplifies bending in one plane, allowing neat routing in confined spaces. Having 20 conductors in a single assembly streamlines installations by avoiding multiple separate cables and reduces clutter. The uniform conductor spacing supports consistent signal separation and organized termination, and the cable’s outer sheath provides basic mechanical protection for indoor routing and panel use.

Suitable for

• Control panels and machine cabinets requiring multiple signal or low-voltage power lines
• LED lighting installations with parallel runs for multiple fixtures
• Audio/visual systems and home automation wiring where flat routing is needed
• Underfloor or floor-molding routing in narrow channels and skirting ducts

Key specifications

• Length: 30.5 metres
• Conductor count: 20 cores
• Form factor: flat, multi-conductor assembly
• Typical application: signal and low-voltage power distribution in limited spaces
• Sheath colour: grey

How to use

Plan the routing path ensuring the cable remains within its bend radius and is supported along runs to avoid strain on terminations. Measure and cut the required length, strip the outer sheath carefully to expose individual conductors, and terminate conductors to the appropriate terminals or connector blocks according to the application’s wiring diagram. Secure the cable with appropriate clips or adhesive-backed channels in visible or accessible areas to maintain a flat profile and prevent mechanical damage. Avoid using the cable outdoors unless additional protective measures are applied.

Recommendations

Use the cable for internal installations where multiple parallel conductors are needed and space is constrained. Keep the cable away from high-voltage lines and sources of strong electromagnetic interference to maintain signal integrity. For permanent installations under floors, verify compatibility with local building regulations and consider additional protective conduit or coverings where foot traffic or mechanical wear is possible.
