Fixed bar code reader Newland FM430 Barracuda 1D 2D CMOS Wired USB

The Newland FM430 Barracuda is a fixed barcode reader designed for reliable 1D and 2D scanning in retail, logistics and kiosk applications. Equipped with a megapixel CMOS camera, wired USB connectivity and an IP54-rated housing, the FM430 reads a wide range of linear and matrix codes with fast performance and can be mounted for handsfree operation or used with a manual trigger.

Advantages

The FM430 Barracuda combines a high-resolution megapixel sensor with intelligent programming and integrated IR and ambient light sensors to ensure fast and consistent barcode capture, including small codes and mobile phone screens. Its adjustable supplementary lighting and optional laser aimer improve aiming and read rates in varied lighting conditions. The ABS/PC housing and IP54 protection allow installation in semi-exposed environments, while a 2 m USB cable provides straightforward wired connectivity and power.

Suitable for

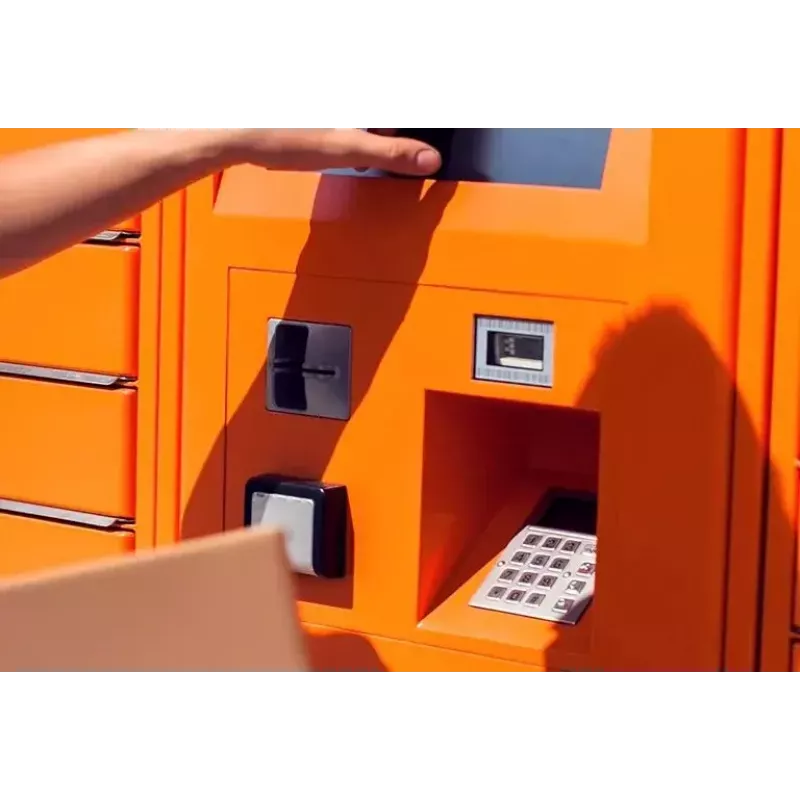

• Self-service kiosks and vending machines
• Retail point of sale and loyalty systems
• Parcel and postal sorting or express delivery stations
• Access control and ticket redemption
• Production line fixed scanning and inventory stations

Key specifications

• Scanner type: 1D/2D fixed mount reader
• Sensor: Megapixel CMOS camera
• Supported 1D codes: EAN-13, UPC-E, UPC-A, Code 39, Code 128, ITF (and others listed by manufacturer)
• Supported 2D codes: QR Code, Data Matrix, PDF417, Aztec Code (and others listed by manufacturer)
• Read rate (max): 60 reads/s
• Connectivity: Wired USB (2 m extension cable included)
• Housing: ABS + PC, colour: black
• Ingress protection: IP54
• Weight: 0.075 kg

How to use

Mount the FM430 Barracuda in the desired fixed position and connect it to a host device via the supplied USB cable for power and data. Configure the reader using the manufacturer’s setup manuals to select handsfree mode or manual trigger, adjust aiming (if equipped with the optional laser), and set the preferred reading distance and brightness behaviour. Test scanning with representative 1D and 2D barcodes, including mobile screen displays, and fine-tune sensor settings if necessary.

Recommendations

Place the reader in a stable enclosure or housing if used outdoors, keep the scanning window clean for optimal performance, and use the IR and light sensor settings to balance illumination for scanning both printed labels and mobile screens.
