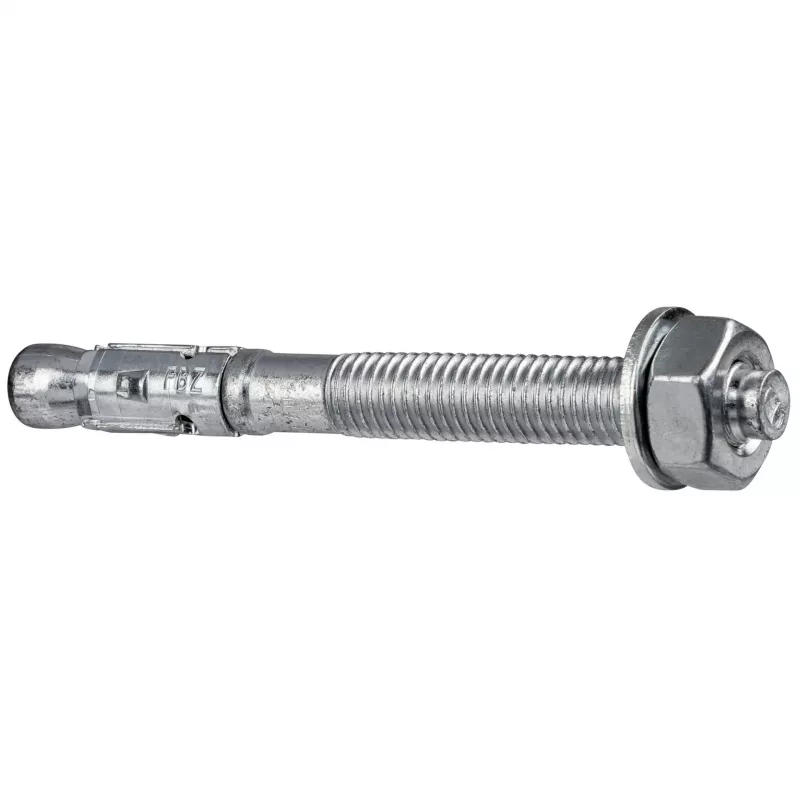

Fischer Bolt Anchor FBZ 10/10 M10 x 90 mm Electro-Galvanized Steel 50 pcs

The Fischer Bolt Anchor FBZ 10/10 is a high-performance expansion anchor designed for heavy-duty fastening in cracked and non-cracked concrete. This through-fixing anchor features a hex nut with washer and is made from electro-galvanized steel for corrosion resistance in dry indoor conditions. With ETA approval and fire resistance rating R 30-120, it is ideal for securing steel constructions, railings, consoles, ladders, cable trays, and machinery.

Advantages

Easy through-fixing installation saves time and ensures reliable anchoring. The integrated washer prevents surface damage and distributes load evenly. ETA Option 1 approval guarantees safety in cracked concrete. Fire resistance up to 120 minutes provides additional security.

Suitable for

• Cracked and non-cracked concrete
• Natural stone with dense structure
• Heavy-duty fastening of steel structures, railings, consoles, ladders, cable trays, and machinery

Key specifications

• Anchor type: Bolt anchor (expansion anchor)
• Thread diameter: M10
• Anchor diameter: 10 mm
• Anchor length: 90 mm
• Max. usable length (tfix): 10 mm
• Min. drill hole diameter: 10 mm
• Min. drill hole depth: 80 mm
• Min. anchorage depth (hef): 70 mm
• Recommended torque: 45 Nm
• Wrench size: 17 mm
• Material: Steel, electro-galvanized (zinc plated)
• Quantity per pack: 50 pieces
• Approvals: ETA Option 1 for cracked and non-cracked concrete, fire resistance R 30-120

Recommendations

For optimal performance, ensure the drill hole is clean and the anchor is fully seated. Use the recommended torque for tightening. Suitable for dry indoor environments only.
