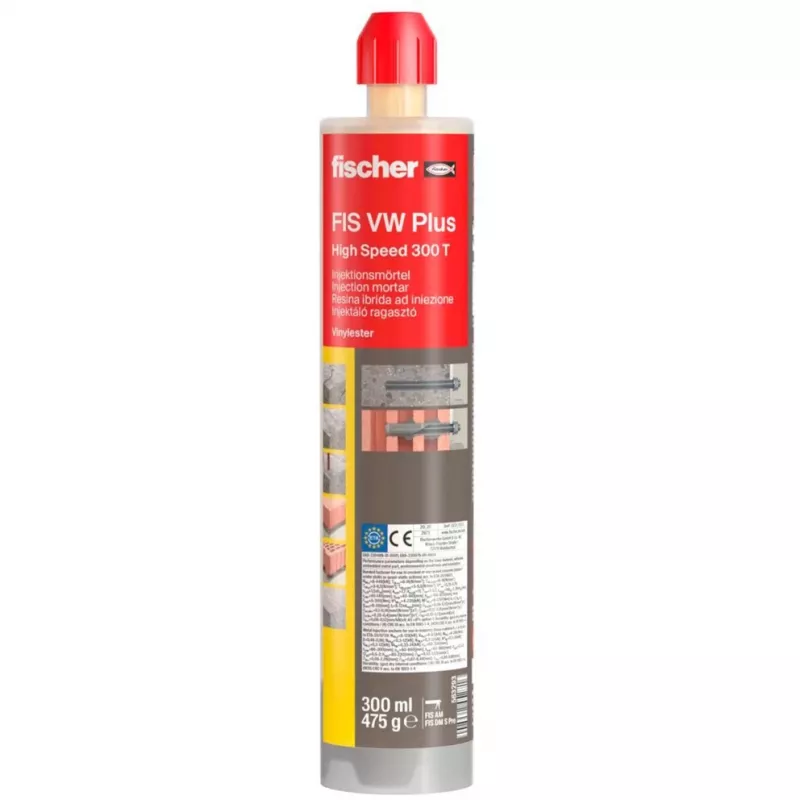

Polymer-modified mortar Fischer 563293 0.475 kg Drying time 45 min

The Fischer polymer-modified mortar (FIS V Plus family) is a styrene-free vinyl ester hybrid injection mortar designed for anchoring in cracked and non-cracked concrete and in masonry. Supplied as a two-component ready-to-use paste, it bonds anchor elements over the full drill-hole length and seals the hole. Variants include FIS VW Plus High Speed for faster curing at low temperatures and FIS VS Plus Low Speed for extended working time at higher temperatures or greater drill depths. The product is compatible with approved system components for rebar connections, remedial wall ties (VBS 8), weather-facing wall ties (FWS II) and the TherMax stand-off installation system.

Advantages

The vinyl ester hybrid mortar offers numerous system approvals for use in cracked and non-cracked concrete, masonry and special applications, and an ETA-assessed service life of 100 years. It can be used in water-filled drill holes and comes in variants to match site conditions: High Speed for shorter hardening times at low temperatures and Low Speed for extended processing time at higher temperatures or deep drill holes. A wide range of compatible accessories increases installation flexibility. The cartridges are supplied as two separate chambers (resin and hardener) and are extruded bubble-free through a static mixer; partially used cartridges can be reused by changing the mixer.

Suitable for

• Anchoring chemical and mechanical fixing elements in cracked and non-cracked concrete
• Fixings in masonry
• Rebar connections using approved system components
• Installations requiring use in water-filled drill holes
• Applications needing extended working time or rapid curing (choose VS or VW variants accordingly)

Key specifications

• Brand: FISCHER
• Product family: FIS V Plus (vinyl ester hybrid)
• Form: 2-component injection mortar in cartridge (resin + hardener)
• Net volume / weight (example cartridge): 0.475 kg
• Typical drying time: 45 minutes (product-dependent and temperature-dependent)
• Operating temperature range: -5 °C to 40 °C
• Service life (ETA assessed): 100 years
• EAN (example): 4048962452716

How to use

Select the appropriate FIS V Plus variant for the job (standard, VW High Speed or VS Low Speed) and fit the cartridge into a compatible Fischer dispenser. Attach a static mixer, extrude a small amount to ensure full mixing, then inject the mortar starting from the base of the drill hole and withdraw the mixer while filling to avoid air pockets. Insert the anchor element into the filled hole and allow the mortar to cure according to the product-specific curing time and the site temperature. Replace the static mixer before reusing a partially used cartridge.

Recommendations

Store cartridges frost-free and use within the manufacturer’s recommended shelf life. Choose High Speed variant for cold conditions and Low Speed variant for high temperatures or deep holes. Follow all system approvals and ETA instructions for structural applications and observe safety data sheet instructions when handling the product.
