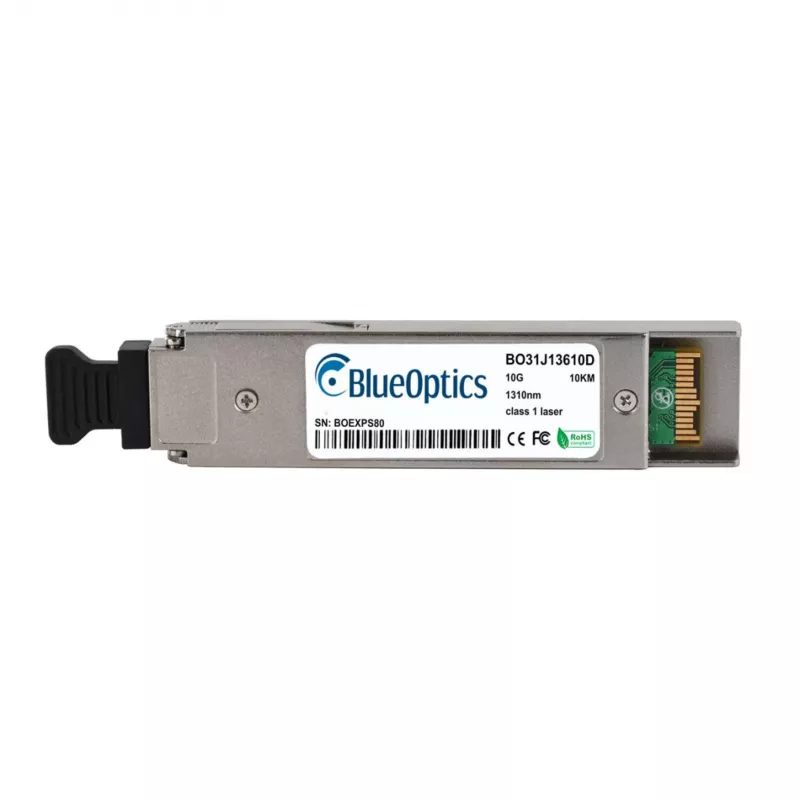

Finisar FTLX1412D3BCL Compatible BlueOptics XFP 10GBASE-LR 10km 1310nm LC SMF Transceiver BO31J13610D

The BlueOptics BO31J13610D is a high-performance XFP transceiver designed for 10 Gigabit Ethernet applications. It is fully compatible with the Finisar FTLX1412D3BCL and offers reliable, cost-effective connectivity for your network infrastructure. This hot-pluggable module supports 10GBASE-LR protocol over single-mode fiber, delivering distances up to 10 km at a wavelength of 1310 nm.

Advantages

This transceiver provides seamless integration into existing networks, ensuring interoperability with Finisar equipment. It features Digital Diagnostic Monitoring (DDM) for real-time performance tracking, low power consumption under 2.5 W, and a commercial temperature range of 0°C to 70°C. The LC duplex connector ensures easy and secure fiber connections.

Suitable for

• 10 Gigabit Ethernet networks requiring LR (Long Reach) connectivity
• Data centers, enterprise networks, and telecommunications
• Upgrading or expanding existing XFP-based infrastructure

Key specifications

• Form Factor: XFP
• Data Rate: 10.3125 Gbps (10GbE)
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Duplex
• DDM/DOM: Yes
• Protocol: 10GBASE-LR
• Compatibility: Finisar FTLX1412D3BCL
• Power Consumption: < 2.5 W
• Operating Temperature: 0°C to 70°C
• Standards: IEEE 802.3ae, SFF-8472, SFF-8431
• Laser Type: DFB Laser
• Receiver Type: PIN Photodiode
• Optical Transmit Power: -6.5 to -0.5 dBm
• Receiver Sensitivity: < -14.4 dBm
• Overload Power: > 0.5 dBm
• Supply Voltage: 3.3V and 5V

Recommendations

For optimal performance, use with high-quality single-mode fiber patch cables and ensure proper handling of optical connectors. This transceiver is a direct replacement for the Finisar FTLX1412D3BCL and is backed by BlueOptics' quality assurance.
