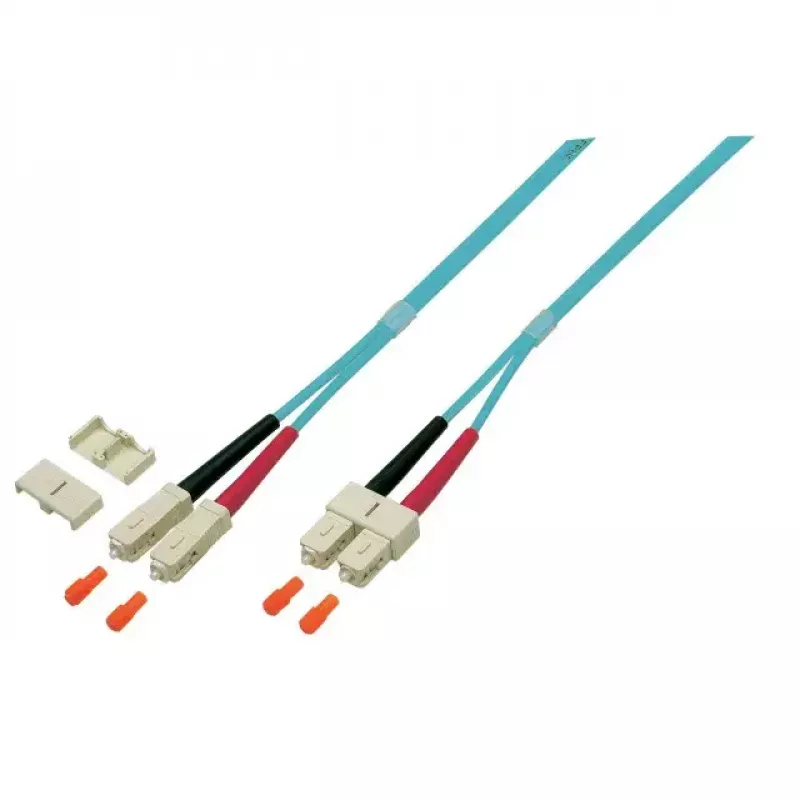

Fibre optic cable EFB Elektronik O0318.7,5 7.5 m SC Turquoise

The EFB Elektronik O0318.7,5 is a 7.5 m OM4 fibre optic cable with SC connectors on both ends and a turquoise LSZH jacket. It is designed as a fibre jumper (patchcord) to provide a short, reliable connection between passive interfaces and active device ports in structured cabling environments and complies with international cabling principles defined in ISO/IEC 11801.

Advantages

The cable uses aramid yarn reinforcement for improved tensile resistance and long-term stability. The halogen-free, flame-retardant LSZH sheath meets IEC-60754-2, IEC-60332-1 and IEC-61034 standards. Connectors and assemblies are manufactured and tested to industry quality grades (singlemode and multimode grade references) and each patchcord is 100% checked and delivered with an individual test protocol.

Suitable for

• Data centre interconnects and server racks
• High-performance LAN and backbone links
• Patch panels and horizontal/vertical cabling segments

Key specifications

• Brand: EFB Elektronik
• MPN: O0318.7,5
• Length: 7.5 m
• Fibre type: OM4 (multimode)
• Core diameter: 62.5 µm
• Connectors: SC — SC
• Jacket: LSZH (halogen-free, flame retardant)
• EAN: 4049759022457

How to use

Install the fibre jumper by connecting the SC connectors to the corresponding SC ports on the patch panel or device ports, taking care to avoid bending below the minimum bend radius and keeping connector endfaces clean. Route the cable within cable management systems or trays to prevent strain; use the reinforced aramid yarn to handle moderate pulling forces during installation.

Recommendations

Keep connector endfaces free of dust and contaminants by using dust caps when not connected and clean with appropriate fibre cleaning tools before mating. Avoid tight bends and mechanical stress to maintain signal integrity and prolong cable lifetime.
