Fibre optic cable EFB Elektronik MTPF12LCOM3-10, OM3 multimode, MTP to 12×LC, 10 m, purple

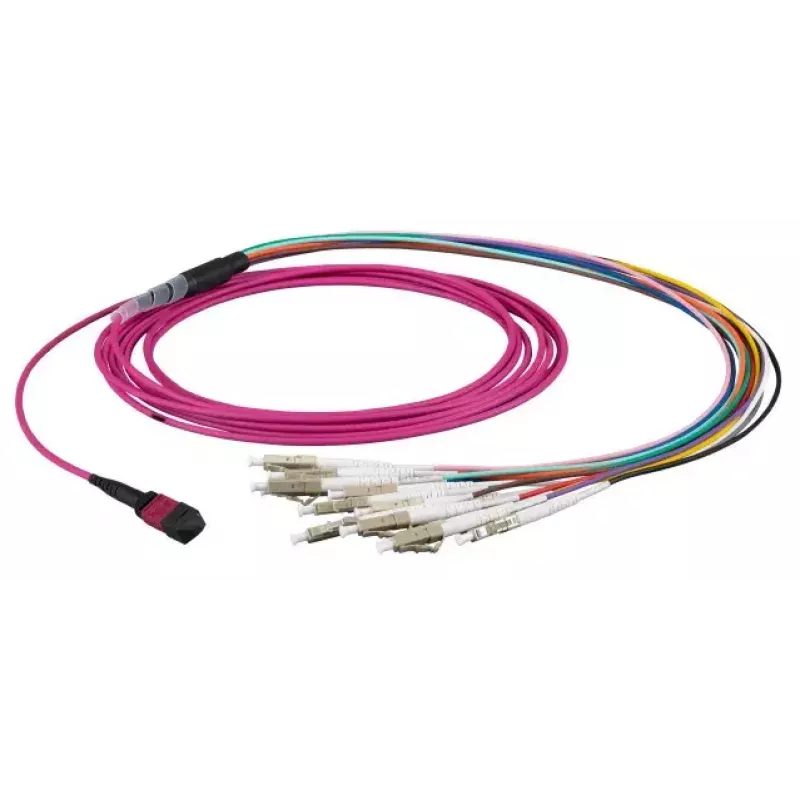

EFB Elektronik MTPF12LCOM3-10 is a 10 m OM3 multimode fibre optic breakout cable featuring an MTP connector on one end and 12 LC connectors on the other. With a 50 µm core diameter and OM3 graded multimode fibre, this cable is intended for short-range, high-density network environments such as data centre interconnects and InfiniBand installations. The purple jacket and compact breakout arrangement simplify identification and routing in dense cabling trays while maintaining multimode optical performance for 10/40/100 G applications over short distances.

Advantages

The cable combines an MTP trunk interface with 12 individual LC terminations to enable fast, single-cable breakout into rack-mounted equipment or patch panels without multiple single-fibre runs. OM3 multimode fibre with a 50 µm core supports high bandwidth and low modal dispersion for short-range links. The factory-assembled construction ensures consistent fibre alignment, low insertion loss, and reduced installation time compared with field-terminated assemblies. The purple outer jacket aids colour-coded management in multi-vendor environments.

Suitable for

• Data centre patching between MTP trunks and LC ports
• High-density switch-to-server connections in InfiniBand or Ethernet fabrics
• Short-range multimode links for 10/40/100 Gigabit applications
• Rack and cabinet breakout installations where cable identification is required

Key specifications

• Fibre type: OM3 multimode
• Core diameter: 50 µm
• Connector A: MTP (multi-fibre push-on)
• Connector B: 12 × LC duplex terminations
• Length: 10 m
• Jacket colour: purple
• Application: short-range, high-density optical interconnects

How to use

Route the MTP to LC breakout cable from the MTP trunk or cassette to the destination patch panel or equipment ports. Ensure connectors are clean before mating and follow equipment manufacturer guidance for polarity and fibre mapping. Insert the MTP connector into the corresponding MTP adapter or cassette module, then plug the LC connectors into the individual LC ports. Avoid tight bends and secure the cable along cable managers or trays to prevent strain; observe the minimum bend radius specified for multimode fibre during installation.

Recommendations

Use this OM3 MTP-to-LC breakout cable for short-range, high-density installations where a single trunk needs to be separated into multiple LC connections. Verify polarity and module alignment in multi-segment assemblies, and perform optical loss testing after installation to confirm link performance.
