Fibre optic cable EFB Elektronik DJP-LCLCOS2-UNI-20 — OS2 single-mode, LC–LC connectors, 20 m, full duplex

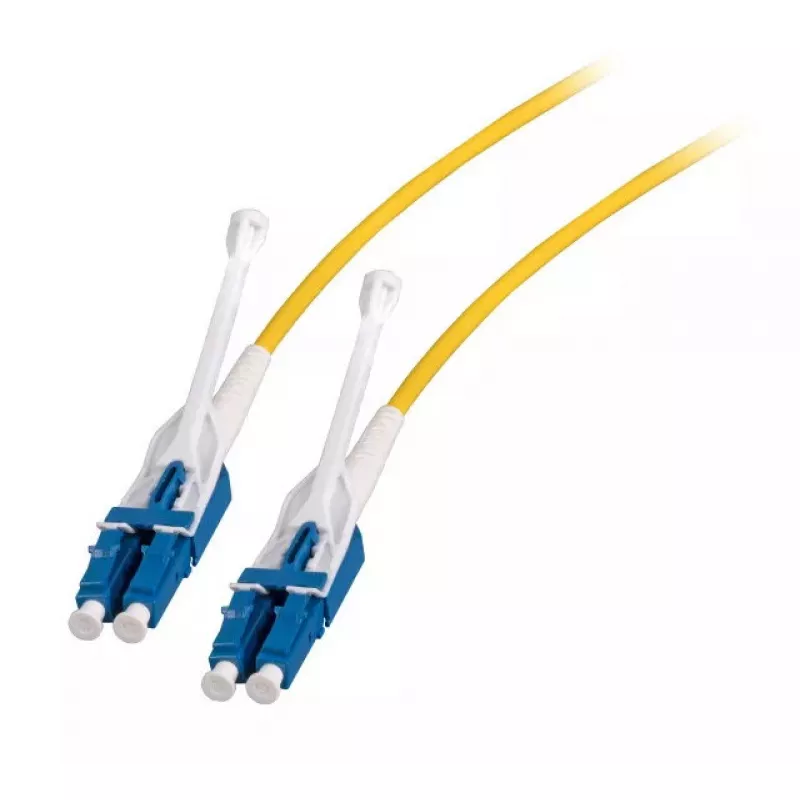

The EFB Elektronik DJP-LCLCOS2-UNI-20 is a 20 m single-mode OS2 fibre optic cable with LC duplex connectors and a UniBoot design. It features a long unlock latch on the LC connector to simplify unlocking in high-density (HD) patch panels, and the duplex polarity or coding can be changed to meet application requirements. The cable is supplied in a blue/yellow colour scheme and is intended for full-duplex InfiniBand and fibre optic links.

Advantages

The UniBoot LC design with an extended unlock latch enables easy operation in HD patch panels and tight spaces. Duplex polarity/coding can be adjusted without replacing the connector, increasing flexibility during installation. Available in fibre categories including OS2 (single-mode), the cable supports standards commonly used in long-distance and data centre links.

Suitable for

• InfiniBand links and high-speed data centre connections
• HD patch panels and dense rack installations
• Full-duplex single-mode fibre connections over longer distances

Key specifications

• Manufacturer: EFB Elektronik
• MPN: DJP-LCLCOS2-UNI-20
• EAN: 4049759236229
• Length: 20 m
• Fibre type: OS2 (single-mode)
• Connector type: LC — LC, duplex UniBoot
• Polarity/coding: adjustable
• Colour: blue/yellow
• Mode: full duplex

How to use

Route the 20 m fibre cable between devices or through patch panels, insert LC connectors into LC ports until the latch clicks, and use the extended unlock latch to disengage connectors in HD patch panels as needed. Adjust duplex polarity or coding at the connector according to the equipment wiring scheme before finalising connections. Ensure fibre ends remain clean and protected when not connected.

Recommendations

Store and handle the OS2 fibre cable without sharp bends, follow manufacturer bend-radius specifications, keep connector endfaces clean, and verify polarity after installation to ensure correct full-duplex operation.
